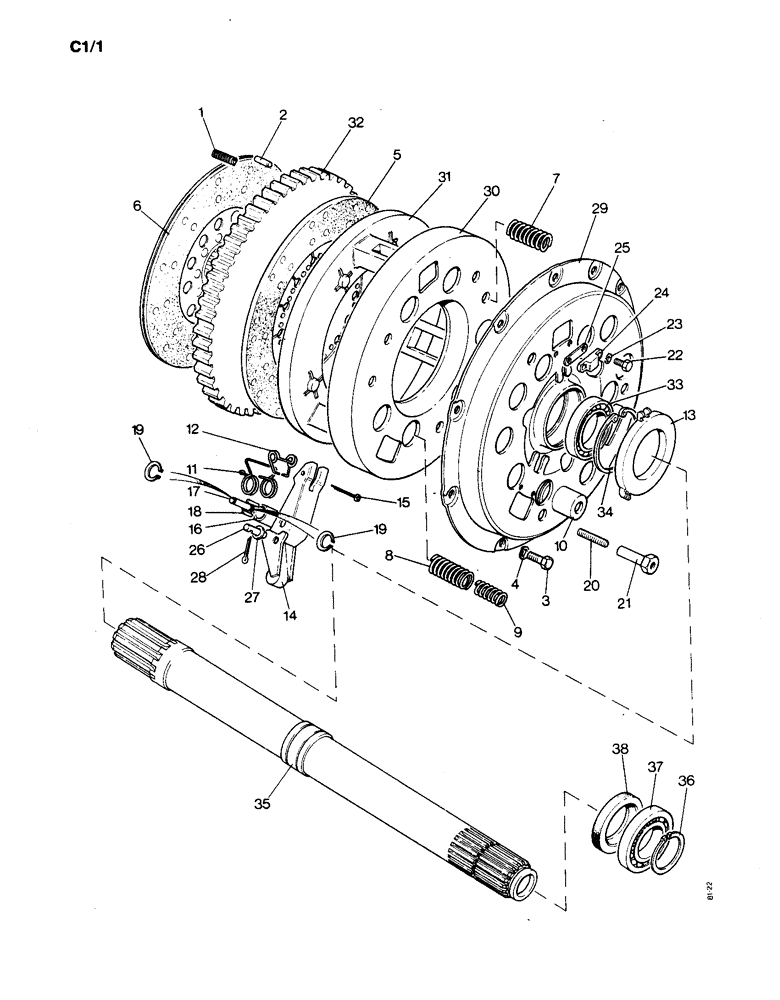

Запчасти Case IH 1190 (C-01) - CONTINOUS CLUTCH, BORG AND BECK (03.1) - CLUTCH

1

K13226

SPRING

- flywheel, order K966112 (10)

3шт.

2

K621838

PIN

DOWEL - 5/16 x 7/16 x 1-1/8"

2шт.

3

K602983

SCREW

BOLT - 3/8 UNC x 7/8", order K966426 (10)

9шт.

4

K19482

SPRING WASHER

WASHER - lock, 3/8", order K966206 (10)

9шт.

5

K923374

CLUTCH DISC

DRIVEN PLATE - transmission, with F30C facings

1шт.

Driven Plate has 10 splines

1шт.

K961829

KIT

FACINGS - 10" F30C (2) and rivets (42)

1шт.

6

K89322

CLUTCH & DISC ASSY

DRIVEN PLATE - PTO, with F30C facings

1шт.

Driven Plate has 10 splines

1шт.

K961828

KIT

FACINGS - 10" F30C (2) and rivets (26)

1шт.

K918611

CLUTCH ASSEMBLY

Includes Ref: 7 - 31

1шт.

7

K902514

SPRING

THRUST SPRING - PTO, pink

6шт.

8

K902512

SPRING

THRUST SPRING - transmission outer, brown

6шт.

9

K902513

SPRING

THRUST SPRING - transmission inner, brown

6шт.

10

K900256

SPRING

CUP

12шт.

11

K961128

SPRING

- anti-rattle

3шт.

12

K900267

RETAINER

- release lever plate

3шт.

13

K900268

PLATE

RELEASE LEVER PLATE

1шт.

14

K900275

LEVER

RELEASE LEVER

3шт.

15

K900278

PIN

- cotter, order K966954 (10)

3шт.

16

K900264

ROLLER

3шт.

17

K900265

PIN

- roller

3шт.

18

K900273

NEEDLE

ROLLER - release lever, order K966952 (10)

60шт.

19

K900274

RING, SNAP

RETAINING RING - order K966953 (10)

6шт.

20

K918607

SCREW

ADJUSTING SCREW - 5/16 UNF

3шт.

21

K918608

NUT

- lock 5/16 UNF, special

3шт.

22

K616501

SCREW

BOLT

6шт.

23

K900279

WASHER

- lock, shakeproof adjusting pad

6шт.

24

K900257

PAD

ADJUSTING PAD - release lever, order K966951 (10)

3шт.

25

K900258

SHIM,.002" Thk

Order K966951 (10) .002" Thk

1шт.

26

K900266

PIN

- release lever

3шт.

27

K900280

WASHER

- release lever, order K966956 (10)

6шт.

28

K19527

PIN

- cotter, pressure plate pin, order K966219 (10)

6шт.

29

K918612

COVER

OUTER COVER

1шт.

30

K918613

COVER

INNER COVER

1шт.

31

K900253

PLATE

PRESSURE PLATE

1шт.

(10" O.D.)

1шт.

32

K906200

DISC

SEPERATER PLATE, Includes Ref: 33 and 34

1шт.

33

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

- order K966956 (10)

1шт.

34

K89326

RING, SNAP

RETAINING RING - 3-1/8", internal, ball bearing

1шт.

35

K200906

NO LONGER SERVICED

CLUTCH DRIVESHAFT

1шт.

36

K12922

RING, SNAP

RETAINING RING - 1-3/4", external, Includes Ref: 37

2шт.

37

K620204

BALL BEARING

- clutch driveshaft

1шт.

38

K623430

OIL SEAL

OIL SEAL - 45 x 65 x 8 mm

1шт.
