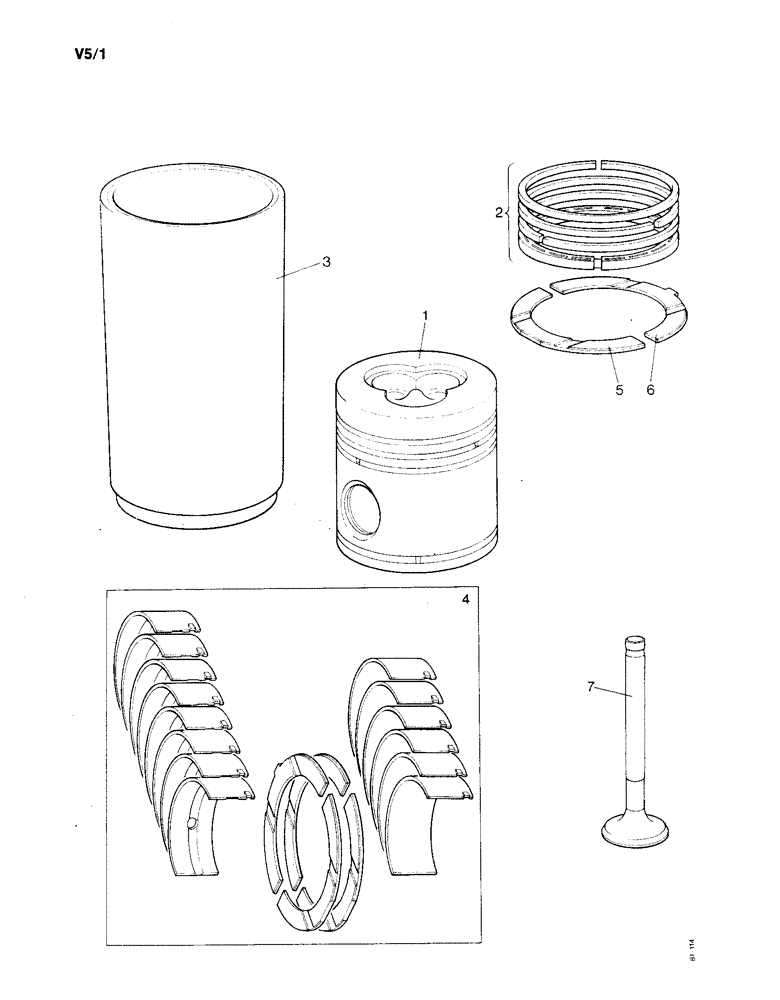

Запчасти Case IH 1190 (V-06) - SERVICE KITS AND PARTS (18) - MISCELLANEOUS

1

K949719

PISTON

ASSEMBLY - complete, 0.020" oversize

3шт.

K943885

RING, PISTON

PISTON RING - No. 1 compression 0.020" oversize

1шт.

K943886

RING, PISTON

PISTON RING - No. 2 and 3 compression 0.020" oversize

2шт.

K917412

PISTON

RING - scraper 0.020" oversize

1шт.

2

K964731

RING

KIT - oil control rings, standard bore

3шт.

2

K964730

RING

KIT - oil control rings, 0.020" oversize

3шт.

3

K964857

LINER, ENGINE CYLIND

CYLINDER LINER

1шт.

4

K962935

BUSHING

KIT - main and big end bearings, standard size

1шт.

K928540

HALF-BEARING, CRANKS

MAIN BEARING - halves standard size

8шт.

K911904

HALF-BEARING, CRANKS

BIG END BEARING - halves, standard size

6шт.

K928542

SET

THRUST WASHER - upper, standard size

2шт.

K928543

SET

THRUST WASHER - lower, standard size

2шт.

4

K962936

BEARING

KIT - main and big end bearings, 0.010" undersize

1шт.

K928557

BEARING LINER

MAIN BEARING - halves, 0.010" undersize

8шт.

K912638

HALF-BEARING, CRANKS

BIG END BEARING - halves, 0.010" undersize

6шт.

4

K962937

CRANKSHAFT BEARING

KIT - main and big end bearings, 0.020" undersize

1шт.

K928558

HALF-BEARING, CRANKS

MAIN BEARING - halves, 0.020" undersize

8шт.

K912639

HALF-BEARING, CRANKS

BIG END BEARING - halves, 0.020" undersize

6шт.

4

K962938

BEARING SET

KIT - main and big end bearing, 0.030"

1шт.

K928559

HALF-BEARING, CRANKS

MAIN BEARING - halves, 0.030"

8шт.

K913941

HALF-BEARING, CRANKS

BIG END BEARING - halves, 0.030"

6шт.

5

K928542

SET

THRUST WASHER - upper, standard size

2шт.

6

K928543

SET

THRUST WASHER - lower, standard size

2шт.

5

K928560

THRUST WASHER

- upper, 0.005" oversize

2шт.

6

K928561

WASHER

THRUST WASHER - lower, 0.005" oversize

2шт.

5

K928562

WASHER, THRUST

THRUST WASHER - upper, 0.020" oversize

2шт.

6

K928563

RING

THRUST WASHER - lower, 0.020" oversize

2шт.

7

K928622

STD INLET VALVE

VALVE - inlet and exhaust, standard stem

6шт.

7

K928986

VALVE

- inlet and exhaust, 0.010" oversize stem

6шт.

7

K928987

VALVE

- inlet and exhaust, 0.020" oversize stem

6шт.
