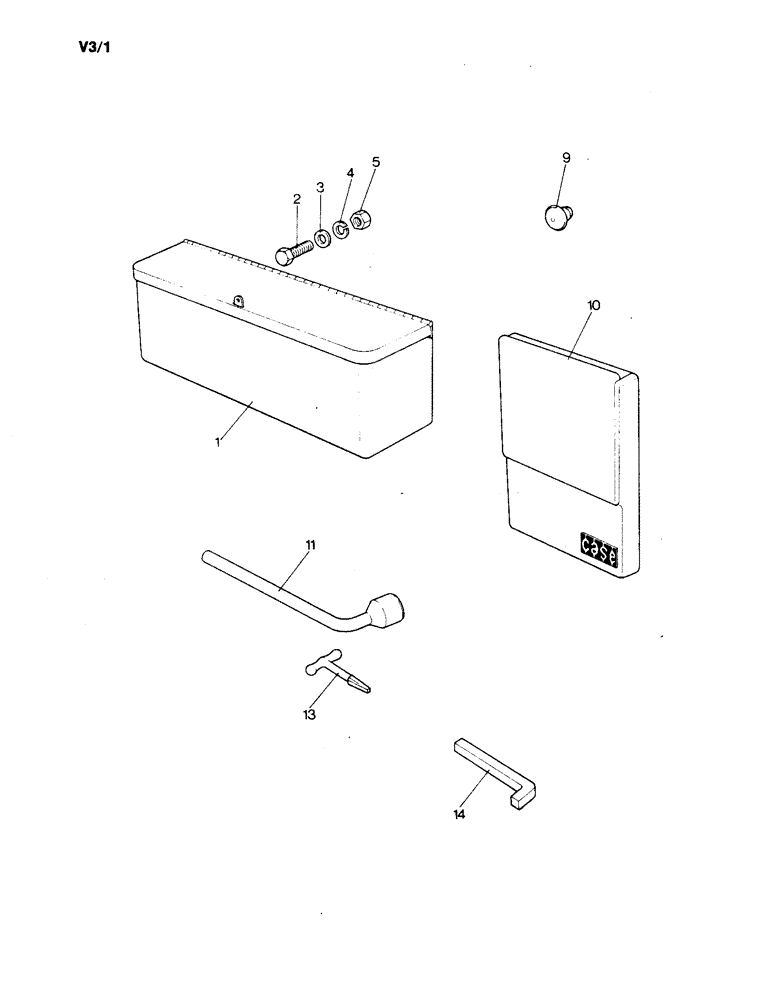

Запчасти Case IH 1190 (V-04) - TOOLBOX AND TOOLS (18) - MISCELLANEOUS

1

K203000

TOOL

BOX - tractor without roll bar

1шт.

2

K602982

SCREW,3/8" - 16 x 3/4", Gr S

BOLT - 3/8 UNC x 3/4", tool box mounting

2шт.

3

K19472

WASHER

- 3/8", tool box mounting

2шт.

4

K19482

SPRING WASHER

WASHER - lock, 3/8", tool box mounting

2шт.

5

280136

NUT,3/8"-16, G8

Tool box mounting 3/8"-16, G8

2шт.

9

K628010

PLUG

PLASTIC PLUG - 10 mm, left hand fender

4шт.

10

K954320

BOX

- operators manual

1шт.

10

A163889

BOX

- operators manual (Low Profile Special)

1шт.

A162364

FASTENER

- box

2шт.

11

K38618

WHEEL

WRENCH - 1" A/F, wheel nuts

1шт.

13

K946448

GRIP

KEY - engine cover lock

1шт.

14

K39426

OPEN END WRENCH

WRENCH - transmission filler plug

1шт.
