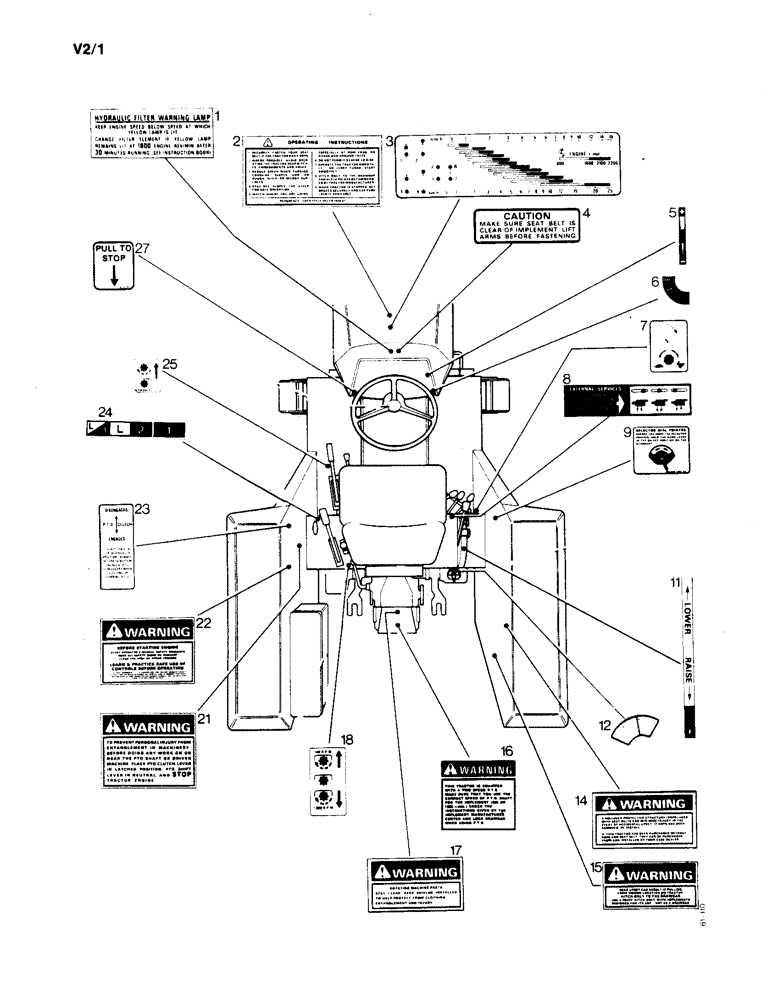

Запчасти Case IH 1190 (V-02) - DECALS AND INSTRUCTION PLATES (18) - MISCELLANEOUS

1

K921368

DECAL

- hydraulic filter

1шт.

2

K953245

DECAL

- operating instructions

1шт.

3

K301357

DECAL

- travel speed chart

1шт.

4

K945069

DECAL

- seat belt

1шт.

5

K952669

DECAL

- engine speed control, hand lever

1шт.

6

K203385

DECAL

- starter switch

1шт.

7

K203980

DECAL

- rate of lowering control

1шт.

8

K952540

DECAL

- live take-off controls

1шт.

9

K203215

DECAL

- selector control operation

1шт.

11

K956569

DECAL

- quadrant lever

1шт.

12

K204632

DECAL

- selector control panel

1шт.

14

K953251

DECAL

- ROPS warning

1шт.

15

K953241

DECAL

- hitch warning

1шт.

16

K203386

DECAL

- multi speed PTO warning

1шт.

17

K953240

DECAL

- rotating machinery warning

1шт.

18

K954771

DECAL

- selector lever, multi-speed PTO

1шт.

21

K200319

DECAL

- PTO warning

1шт.

22

K953244

DECAL

- engine starting warning

1шт.

23

K950497

DECAL

- PTO clutch operation, independent

1шт.

24

K952541

DECAL

- three-way valve

1шт.

25

K952561

DECAL

- selector lever, single speed PTO

2шт.

27

K301231

DECAL

- engine stop control

1шт.
