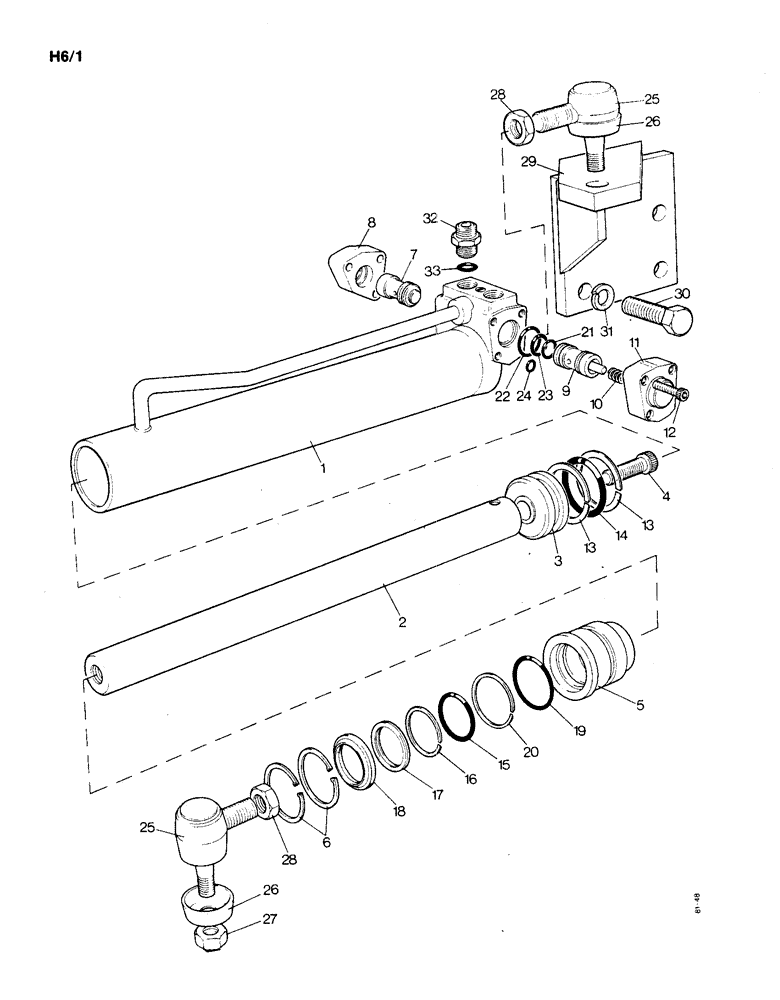

Запчасти Case IH 1190 (H-06) - STEERING CYLINDER, TRACTORS WITH POWER STEERING (13) - STEERING SYSTEM

K200564

STEERING CYLINDER

ASSEMBLY

1шт.

1

K200555

CYLINDER ASSY.

CASE

1шт.

2

K200565

STEERING CYLINDER

ROD

1шт.

3

K200559

PISTON

1шт.

4

K616823

HEX SOC SCREW,5/8" - 18 x 1 3/4"

BOLT - 5/8 UNC x 1-3/4"

1шт.

5

K200561

ARM

SLEEVE

1шт.

6

K12993

RING, SNAP

RETAINING RING - 2-3/8", internal

2шт.

7

K965851

VALVE

NON-RETURN VALVE

1шт.

8

K200562

PLATE

END PLATE

1шт.

9

K203779

VALVE

SPOOL VALVE AND SLEEVE

1шт.

10

K625096

SPRING

1шт.

11

K200611

PLATE

END PLATE

1шт.

12

K616502

SCREW

BOLT - 1/4 UNF x 3/4"

6шт.

K965852

SEAL

KIT - steering cylinder, Includes Ref: 13 - 24

1шт.

13

K628914

RING

BACK-UP RING - 1-7/8" internal diameter

2шт.

14

K24840

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

- 1-7/8" internal diameter

1шт.

15

K628877

O-RING

- 40 mm internal diameter

1шт.

16

K628918

SEAL,40mm ID x 44.99mm OD x 1.4mm Thk

BACK-UP RING - 40 mm internal diameter

1шт.

17

K628128

RING

SEALING RING - 40 mm internal diameter

1шт.

18

K623712

WIPER SEAL

SCRAPER SEAL - 40 mm internal diameter

1шт.

19

K623715

O-RING,0.1" Thk x 2.06" ID

- 2-1/16" internal diameter

1шт.

20

K623713

SEAL,52.39mm ID x 57.15mm OD x 1.47mm Thk

BACK-UP RING - 2-1/16"

1шт.

21

K623540

O-RING,0.614" ID x 0.754" OD x 0.07"

- 5/8" internal diameter - order K966606 (10)

2шт.

22

K16375

O-RING,0.943" ID x 0.106"

- 15/16" internal diameter

2шт.

23

K628874

O-RING

- 11/16" internal diameter

1шт.

24

K14573

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16" internal diameter - order K966118 (10)

1шт.

25

K923766

BALL JOINT

BALL SOCKET ASSEMBLY, Includes Ref: 26 and 27

2шт.

26

K962155

CAP

DIRT SEAL

1шт.

27

131-377

LOCK NUT,5/8"-11, GC

NUT - 5/8 UNF, self-locking

1шт.

28

K617289

LOCK NUT

LOCKNUT - 7/8", special

1шт.

29

K302682

BRACKET

- steering cylinder

1шт.

30

K603276

SCREW

BOLT - 5/8 UNC x 1-3/4"

4шт.

31

K19485

WASHER

- lock, 5/8", order K966207 (10)

4шт.

32

K626039

FITTING

UNION - 3/4 UNF

2шт.

33

K623591

O-RING

- 5/8" internal diameter

2шт.
