Запчасти Case IH 1190 (H-05) - PUMP, POWER STEERING (13) - STEERING SYSTEM

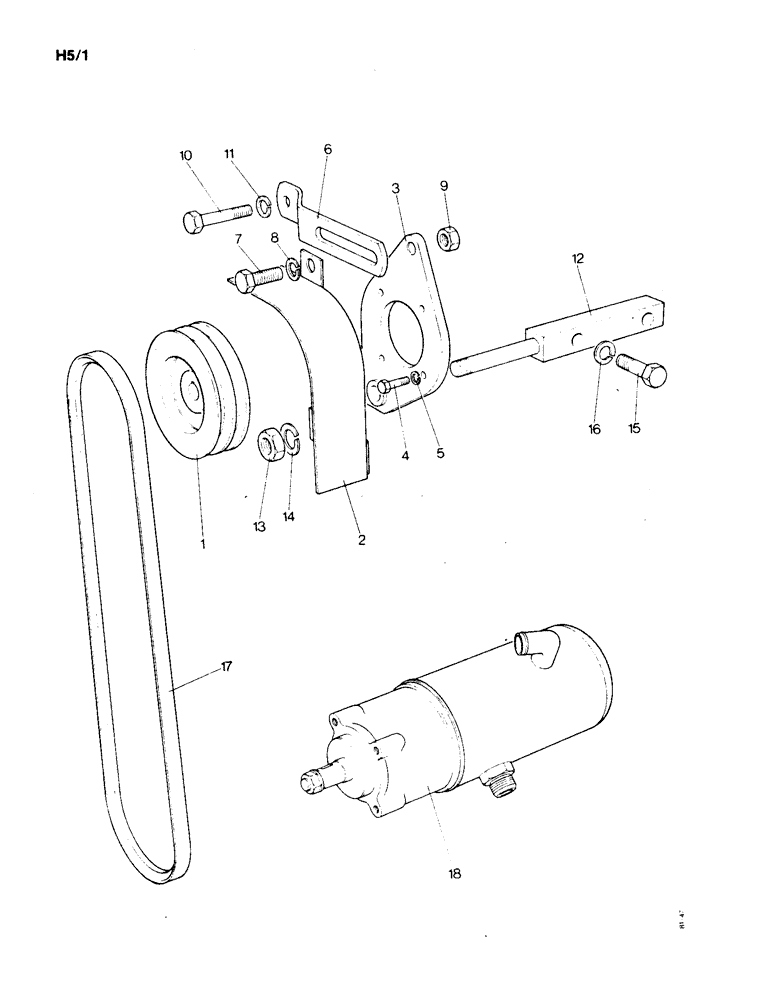

Схема запчастей Case IH 1190 - (H-05) - PUMP, POWER STEERING (13) - STEERING SYSTEM
14
17
12
11
3
1
2
15
9
4
16
10
5
7
13
6
18
8

Артикул

Название

Примечание

Количество

1

K947346

PULLEY

1шт.

2

K952370

GUARD

- pump pulley

1шт.

3

K203723

MOUNTING PARTS

MOUNTING PLATE

1шт.

4

K650327

SCREW

BOLT - M6 x 16, Serial Range: pump-plate

4шт.

5

K651847

WASHER, LOCK

WASHER - lock, 6mm, order K967385 (10)

4шт.

6

K947349

STRAP

ADJUSTING STRAP

1шт.

7

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Strap to pump - Order K966427 (10) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

8

K19472

WASHER

- 3/8", order K966202 (10)

1шт.

9

280136

NUT,3/8"-16, G8

Order K966474 (10) 3/8"-16, G8

1шт.

10

K600324

BOLT

- 5/16 UNC x 1-3/4", strap to engine - order K966382 (10)

1шт.

11

K19481

SPRING WASHER

WASHER - lock, 5/16", order K966205 (10)

1шт.

12

K947348

SUPPORT

BRACKET - pump

1шт.

13

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT - 1/2 UNC, order K966483 (10)

1шт.

14

K626345

LOCK WASHER

WASHER - lock, 1/2", order K966716 (10)

1шт.

15

K600403

BOLT

- 3/8 UNC x 1-3/8", bracket to engine - order K966387 (10)

2шт.

16

K19482

SPRING WASHER

WASHER - lock, 3/8", order K966206 (10)

2шт.

17

K912196

V-BELT

Pump and fan

2шт.

18

K203698

PUMP

ASSEMBLY - Hobourn-Eaton

1шт.

Выбрано товаров: 18
