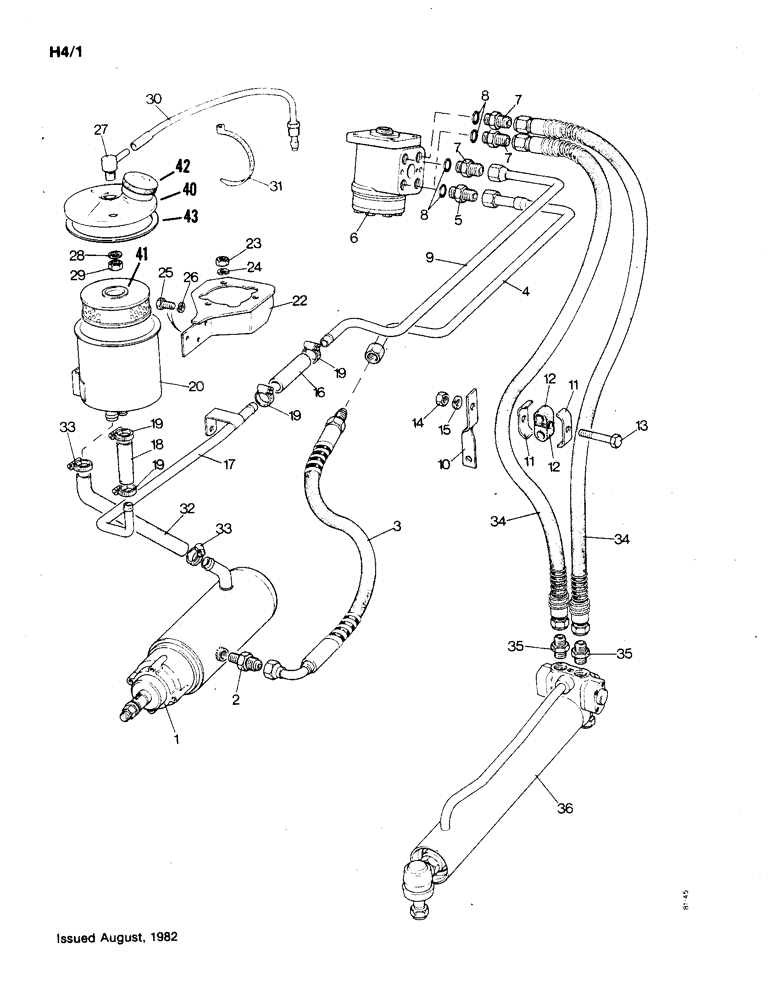

Запчасти Case IH 1190 (H-04) - PIPES AND FITTINGS, POWER STEERING (13) - STEERING SYSTEM

1

K203698

PUMP

ASSEMBLY - steering (see Figure H5)

1шт.

2

K626087

FITTING

ADAPTER - 1/2 x 3/4 UNF

1шт.

3

K203929

HOSE

PIPE - flexible, 3/4 UNF x 10"

1шт.

4

K202412

PIPE

- steering valve inlet

1шт.

5

K203639

VALVE

NON-RETURN VALVE - pressure line

1шт.

6

K946083

VALVE

STEERING VALVE - see Figure H3

1шт.

7

K626039

FITTING

UNION - 3/4 UNF

3шт.

8

K623591

O-RING

- 5/8" internal diameter

4шт.

9

K202149

PIPE

- return line

1шт.

10

K202151

BRACKET

- pipe clamp

1шт.

11

K951982

SHIM

CLAMP - flex pipe

2шт.

12

K951993

SLEEVE

BLOCK - rubber

2шт.

13

K600476

BOLT

- 3/8 UNC x 1-3/4"

1шт.

14

280136

NUT,3/8"-16, G8

1шт.

15

K19482

SPRING WASHER

WASHER - lock, 3/8"

1шт.

16

K204374

HOSE

- 1/2 x 4-1/2", reservoir return

1шт.

17

K204373

PIPE

- reservoir return

1шт.

18

K204377

HOSE

- 1/2 x 2-1/8"

1шт.

19

K622024

CLAMP

HOSE CLIP - 3/4"

4шт.

22

K302091

BRACKET

- reservoir

1шт.

22

K304396

BRACKET

For Upswept Exhaust

1шт.

22

K304692

BRACKET

For Downswept Exhaust

1шт.

23

280136

NUT,3/8"-16, G8

3шт.

24

K19482

SPRING WASHER

WASHER - lock, 3/8"

3шт.

25

K612731

SCREW

BOLT - 1/4 UNF x 1/2", Serial Range: reservoir-bracket

3шт.

26

K626341

SPRING WASHER

WASHER - lock, 3/4"

3шт.

27

K203877

BREATHER

ELBOW - 1/2 UNF

1шт.

28

K15735

WASHER

- 1/2" special

1шт.

29

K616984

NUT

- 1/2 UNF

1шт.

30

K204271

PIPE

- breather

1шт.

31

K621734

CABLE

CLIP - breather pipe

1шт.

32

K203921

HOSE

-, Serial Range: reservoir-pump

1шт.

33

K622024

CLAMP

HOSE CLIP - 3/4"

2шт.

34

K945756

HOSE

PIPE - flexible, 3/4 UNF x 32"

2шт.

35

K626039

FITTING

UNION - 3/4 UNF, steering cylinder

2шт.

36

K200564

STEERING CYLINDER

ASSEMBLY - see Figure H6

1шт.

40

K203699

RESERVOIR

ASSEMBLY - steering, Includes Ref: 41 - 43

1шт.

41

K964931

FILTER

ELEMENT - filter

1шт.

On the tractors with short revervoir body, use one filter element. On tractors with long revervoir boddy use two filter elements.

1шт.

42

K260852

CAP

- filter, reservoir

1шт.

43

K960725

GASKET

- reservoir cover

1шт.
