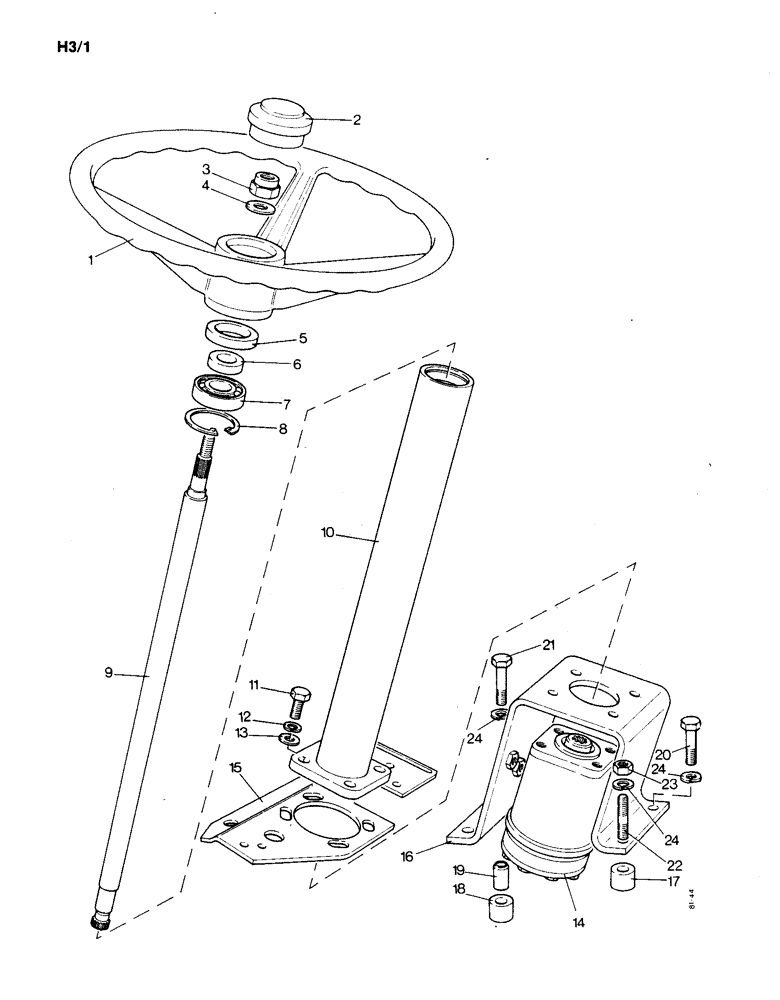

Запчасти Case IH 1190 (H-03) - STEERING COLUMN, POWER STEERING (13) - STEERING SYSTEM

1

K949446

HANDWHEEL

STEERING WHEEL

1шт.

2

K952274

CAP

HUB CAP

1шт.

3

K607304

NUT

- 1/2 UNC, self-locking

1шт.

4

K626686

WASHER

- 1/2", order K966755 (10)

1шт.

5

K623479

WASHER

FELT WASHER - 1/2" internal diameter

1шт.

6

K627103

BUSHING

SPACER

1шт.

7

K620192

BALL

BEARING

1шт.

8

K11911

RING, SNAP

RETAINING RING - 1-5/8", internal

2шт.

9

K201585

SHAFT

- 14-1/4"

1шт.

10

K201581

FLANGE

STEERING COLUMN

1шт.

11

K600476

BOLT

- 3/8 UNC x 1-3/4", order K966392 (10)

4шт.

12

K19482

SPRING WASHER

WASHER - lock, 3/8", order K966206 (10)

4шт.

13

K19472

WASHER

- 3/8", order K966202 (10)

4шт.

14

K946083

VALVE

STEERING VALVE - Oribitrol OSP 125

1шт.

Ref #14:seal pack-If steering handpump has Danfoss part #150n1051 on it, order seal kit P/N 3141548R91. By: tsg bc 9/18/98 Modified by TSG DBN 6-10-98

1шт.

K962387

GASKET KIT

SEAL

1шт.

K964157

SPRING

CENTERING SPRING - set of three

2шт.

15

K300200

SUPPORT

- engine cover

1шт.

16

K201587

BRACKET

- steering column

1шт.

17

K201515

BUSHING

SPACER

3шт.

18

K200813

BUSHING

SPACER

1шт.

19

K622042

RING

DOWEL - 17/32" diameter x 1-1/8"

1шт.

20

K600476

BOLT

- 3/8 UNC x 1-3/4", order K966392 (10)

1шт.

21

K600563

BOLT

- 3/8 UNC x 2-1/4"

1шт.

22

K608215

STUD

- 3/8 UNC x 2-1/4"

2шт.

23

280136

NUT,3/8"-16, G8

Order K966474 (10) 3/8"-16, G8

2шт.

24

K19482

SPRING WASHER

WASHER - lock, 3/8", order K966206 (10)

4шт.
