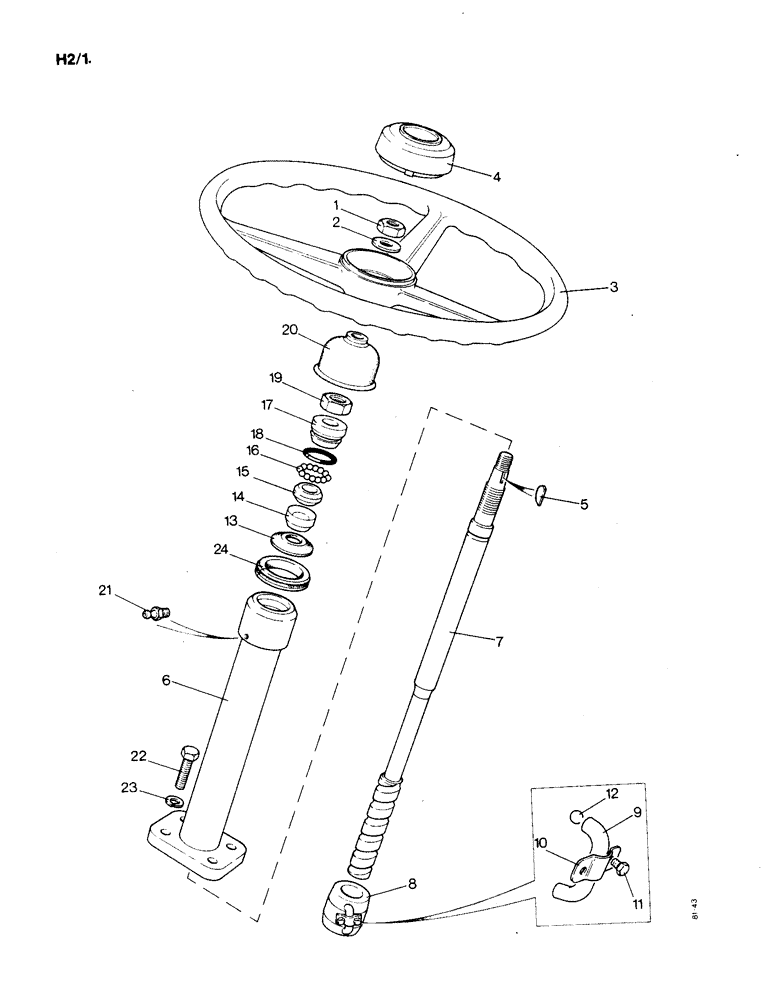

Запчасти Case IH 1190 (H-02) - STEERING COLUMN, MANUAL STEERING (13) - STEERING SYSTEM

1

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8 UNC

1шт.

2

K626671

WASHER

- 5/8", special

1шт.

3

K956407

SCREW

STEERING WHEEL

1шт.

4

K300074

COVER

HUB CAP

1шт.

5

K19608

KEY

- Woodruff, No. 606, order K966242 (10)

1шт.

K956632

STEERING COLUMN

ASSEMBLY, Includes Ref: 6 - 12

1шт.

6

K200714

SUPPORT

STEERING COLUMN

1шт.

7

K956700

SCREW

STEERING SCREW AND NUT, Includes Ref: 8 - 12

1шт.

8

K961672

NUT

STEERING NUT

1шт.

9

K960990

TUBE NUT

TRANSFER TUBE - halves

2шт.

10

K960991

RETAINER

CLIP - transfer tubes

1шт.

11

K960992

BOLT

- 1/4 UNF, special

2шт.

12

K11286

BALL

STEEL BALL - 5/16", order K966029 (10)

28шт.

13

K903469

PAD, RUBBER

RUBBER BAFFLE

1шт.

14

K903461

SPACER

SPHERICAL SEATING

1шт.

15

K903462

SPHERICAL BEARING

LOWER BEARING

1шт.

16

K13506

BALL

STEEL BALL - 3/8", order K966113 (10)

12шт.

17

K903463

BEARING CONE

ADJUSTABLE BEARING CONE

1шт.

18

K903468

O-RING,0.156" Thk x 1.234" ID, 75 Duro

- 1-1/4" internal diameter

1шт.

19

K924967

NUT

LOCKNUT

1шт.

20

K923681

SEAL

DIRT EXCLUDER

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , UNF, Order K966110 (10) 1/4"-28 NPT x .54" lg

1шт.

22

K600604

SCREW

BOLT - 7/16 UNC x 1-3/4", order K966395 (10)

4шт.

23

K626344

WASHER, LOCK

WASHER - lock, 7/16", order K966715 (10)

4шт.

24

K627760

GROMMET

- instrument panel

1шт.
