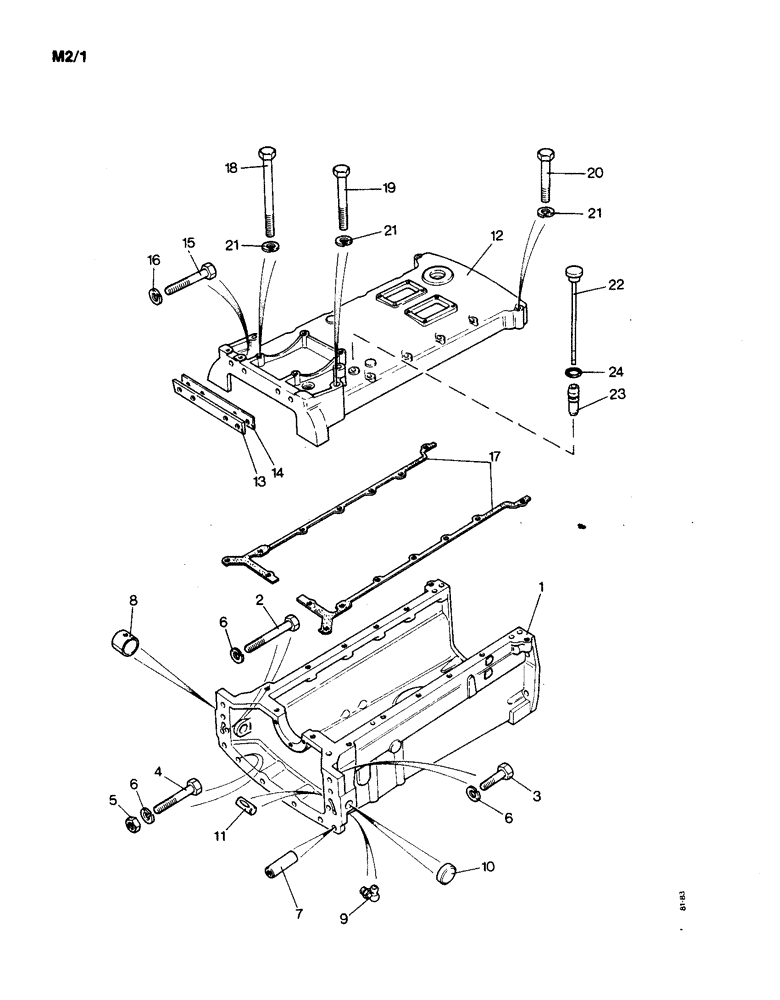

Запчасти Case IH 1190 (M-02) - MAIN FRAME REAR AND GEARBOX COVER (12) - FRAME

1

K956019

FRAME

MAIN FRAME - rear

1шт.

2

K600615

BOLT

- 7/16 UNC x 3-1/4", front frame to rear main frame

4шт.

3

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

- 7/16 UNC x 1-1/2", front frame to rear main frame - order K966394 (10)

2шт.

4

K600608

BOLT

- 7/16 UNC x 2-1/4", front frame to rear main frame

4шт.

5

280717

NUT,7/16"-14, G5

Front frame to rear main frame - Order K966475 (10) 7/16"-14, G5

4шт.

6

K626344

WASHER, LOCK

WASHER - lock, 7/16", front frame to rear main frame - order K966715 (10)

10шт.

7

K621852

PIN

DOWEL - 5/8 x 1-5/8", front frame to rear main frame

2шт.

8

K628753

BUSHING

- clutch cross shaft

4шт.

9

K22164

FITTING

GREASE FITTING

2шт.

10

K623790

CORE

PLUG - 1-1/8" diameter, continuous clutch tractor - order K967324 (10)

2шт.

11

K623729

PIN

PLUG - 3/16 x 3/4", continuous clutch tractors

1шт.

12

K956144

COVER

GEARBOX COVER

1шт.

13

K200259

WEDGE

- gearbox cover to clutch housing

1шт.

14

K200718

SHIM

- gearbox cover to clutch housing

1шт.

15

K600616

BOLT

- 7/16 UNC x 3-1/2", gearbox cover to clutch housing

4шт.

16

K626344

WASHER, LOCK

WASHER - lock, 7/16", gearbox cover to clutch housing - order K966715 (10)

4шт.

17

K922555

GASKET

2шт.

18

K600827

BOLT - 1/2 UNC x 6-1/4"

2шт.

19

K600823

BOLT

- 1/2 UNC x 5-1/4"

2шт.

20

K600887

BOLT

- 1/2 UNC x 3-1/4"

10шт.

21

K626345

LOCK WASHER

WASHER - lock, 1/2", order K966716 (10)

14шт.

22

K956099

DIPSTICK

- transmission oil

1шт.

23

K942348

SLEEVE

- dipstick

1шт.

24

K24701

O-RING,0.426" ID x 0.566" OD x 0.07"

- 7/16" internal diameter, order K966265 (10)

1шт.
