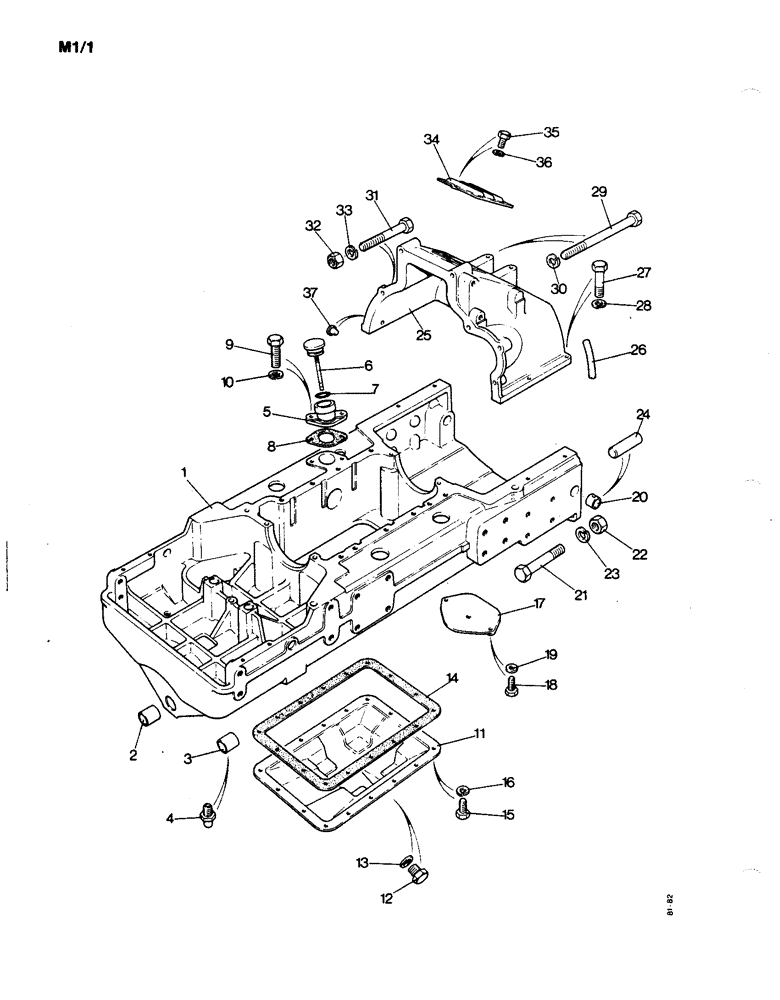

Запчасти Case IH 1190 (M-01) - MAIN FRAME FRONT AND CLUTCH HOUSING (12) - FRAME

1

K956015

FRAME

MAIN FRAME - front

1шт.

2

K621427

BUSHING

- front, trunnion pin bearings

1шт.

3

K621301

BUSHING

- rear, trunnion pin bearings

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Trunnion pin bearings, Order K966110 (10) 1/4"-28 NPT x .54" lg

1шт.

5

K902042

FILLER

OIL FILLER

1шт.

6

K912773

DIPSTICK

FILLER CAP AND DIPSTICK

1шт.

7

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- 1-3/8" internal diameter

1шт.

8

K902043

SEAL

- oil filler, order K966968 (10)

1шт.

9

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Order K966428 (10) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

10

K19482

SPRING WASHER

WASHER - lock, 3/8", order K966206 (10)

2шт.

11

K907339

COVER

SUMP - engine lubrication

1шт.

12

K623849

PLUG

DRAIN PLUG - 1/2 BSP

1шт.

13

K626317

WASHER

SEALING WASHER - 7/8U

1шт.

14

K907585

GASKET

- sump

1шт.

15

K602883

SCREW,5/16" - 18 x 3/4", Gr V

BOLT - 5/16 UNC x 3/4", order K966419 (10)

16шт.

16

K19481

SPRING WASHER

WASHER - lock, 5/16", order K966205 (10)

16шт.

17

K956333

COVER

- clutch pit

1шт.

18

K602733

SCREW

BOLT - 1/4 UNC x 5/8", order K966398 (10)

2шт.

19

K19470

WASHER

- 1/4", order K966201 (10)

2шт.

20

K628753

BUSHING

- clutch cross shaft

4шт.

21

K600608

BOLT

- 7/16 UNC x 2-1/4", front frame to rear frame

4шт.

22

280717

NUT,7/16"-14, G5

Front frame to rear frame - Order K966475 (10) 7/16"-14, G5

4шт.

23

K626344

WASHER, LOCK

WASHER - lock, 7/16", front frame to rear frame - order K966715 (10)

4шт.

24

K621852

PIN

DOWEL - 5/8 x 1-5/8", front frame to rear frame

2шт.

25

K956048

CLUTCH

HOUSING

1шт.

26

K200263

SEAL

ING STRIP - clutch housing

2шт.

27

K600475

BOLT

- 3/8 UNC x 1-1/2", order K966391 (10)

4шт.

28

K19482

SPRING WASHER

WASHER - lock, 3/8", order K966206 (10)

4шт.

29

K600421

BOLT

- 3/8 UNC x 4-1/4", clutch, Serial Range: housing-engine

2шт.

30

K19482

SPRING WASHER

WASHER - lock, 3/8", clutch housing to engine - order K966206 (10)

2шт.

31

K600412

BOLT

- 3/8 UNC x 2-1/2", clutch, Serial Range: housing-engine

1шт.

32

280136

NUT,3/8"-16, G8

Clutch housing to engine - order K966474 (10) 3/8"-16, G8

1шт.

33

K19482

SPRING WASHER

WASHER - lock, 3/3", clutch housing to engine - order K966206 (10)

1шт.

34

K904246

COVER

- clutch housing

1шт.

35

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- 1/4 UNC x 1/2", cover to housing - order K966399 (10)

2шт.

36

K626341

SPRING WASHER

WASHER - lock, 1/4", cover to housing - order K966714 (10)

2шт.

37

K628087

PLUG

PLASTIC PLUG - 3/8", timing peg aperture - order K966819 (10)

1шт.
