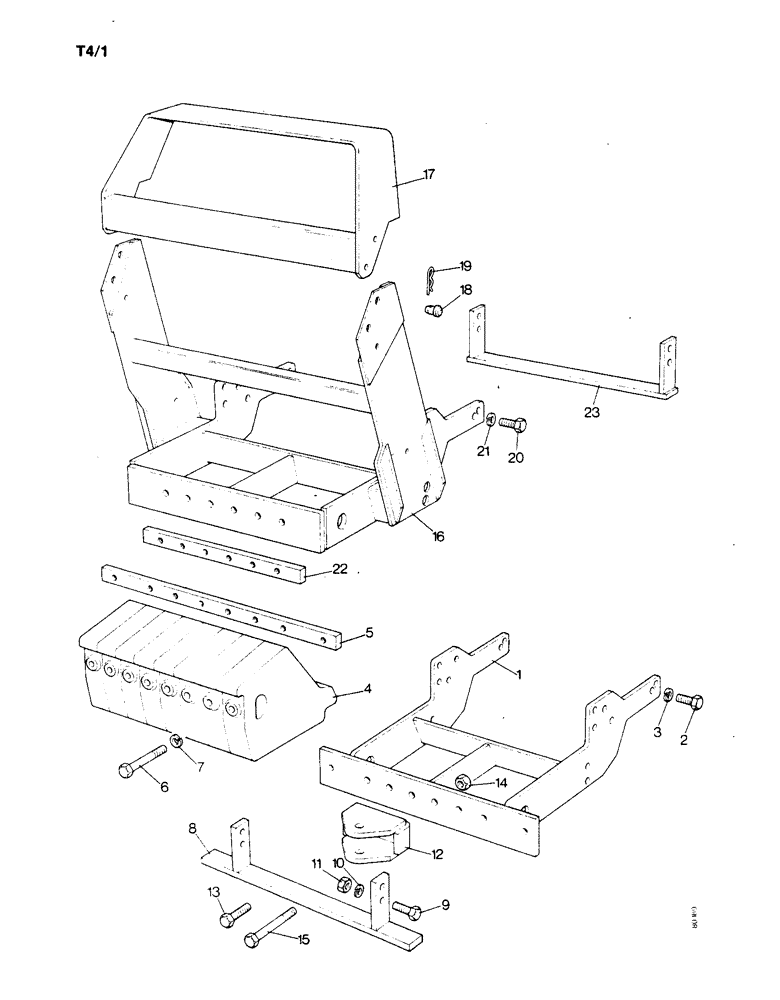

Запчасти Case IH 1190 (T-04) - FRAME, FRONT BALLAST WEIGHTS, TOW BRACKET AND RADIATOR GUARD UNITS (11) - WHEELS & WEIGHTS

UK5134

FRAME

UNIT, Includes Ref: 1 - 3

1шт.

1

K301622

FRAME

SUPPORT FRAME

1шт.

2

K603276

SCREW

BOLT - 5/8 UNC x 1-3/4"

6шт.

3

K19485

WASHER

- lock, 5/8", order K966207 (10)

6шт.

UK5139

WEIGHT

BALLAST WEIGHT UNIT, Includes Ref: 4 - 11

1шт.

4

K203843

WEIGHT

BALLAST WEIGHT

8шт.

5

K203861

SUPPORT

LOCKING BAR

1шт.

6

K601324

BOLT

- 5/8 UNC x 3-3/4"

8шт.

7

K19485

WASHER

- lock, 5/8", order K966207 (10)

8шт.

8

K301614

SUPPORT

STRUT

1шт.

9

K603278

SCREW

BOLT - 5/8 UNC x 2"

4шт.

10

K19485

WASHER

- lock, 5/8", order K966207 (10)

4шт.

11

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

UK5141

ADJUSTABLE CLEVIS

TOW BRACKET UNIT, Includes Ref: 12 - 15

1шт.

12

K301627

CLEVIS

TOW BRACKET

1шт.

13

K603278

SCREW

BOLT - 5/8 UNC x 2"

2шт.

14

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

15

K601334

BOLT

- 5/8 UNC x 4-1/4"

2шт.

UK5131

GUARD

RADIATOR GUARD UNIT, Includes Ref: 16 - 21

1шт.

16

K301616

RADIATOR

GUARD - radiator

1шт.

17

K301597

GUARD

- bonnet nose

1шт.

18

K770632

PIN

4шт.

19

K771626

FASTENER

SPRING CLIP

4шт.

20

K603276

SCREW

BOLT - 5/8 UNC x 1-3/4"

6шт.

21

K19485

WASHER

- lock, 5/8", order K966207 (10)

6шт.

UK5137

BALLAST WEIGHT UNIT - for use with radiator guard unit UK5131, Includes Ref: 4 - 11

1шт.

4

K203843

WEIGHT

BALLAST WEIGHT - for use with radiator guard unit UK5131

6шт.

22

K301632

SUPPORT

LOCKING BAR - for use with radiator guard unit UK5131

1шт.

7

K601324

BOLT

- 5/8 UNC x 3-3/4", for use with radiator guard unit UK5131

6шт.

10

K19485

WASHER

- lock, 5/8", for use with radiator guard unit UK5131 - order K966207 (10)

6шт.

23

K301630

SUPPORT

STRUT - for use with radiator guard unit UK5131

1шт.

9

K603278

SCREW

BOLT - 5/8 UNC x 2", for use with radiator guard unit UK5131

4шт.

10

K19485

WASHER

- lock, 5/8", for use with radiator guard unit UK5131 - order K966207 (10)

4шт.

11

280374

NUT,Hex, 5/8" - 11, Gr 5

For use with radiator guard unit UK5131 5/8"-11, G5

4шт.
