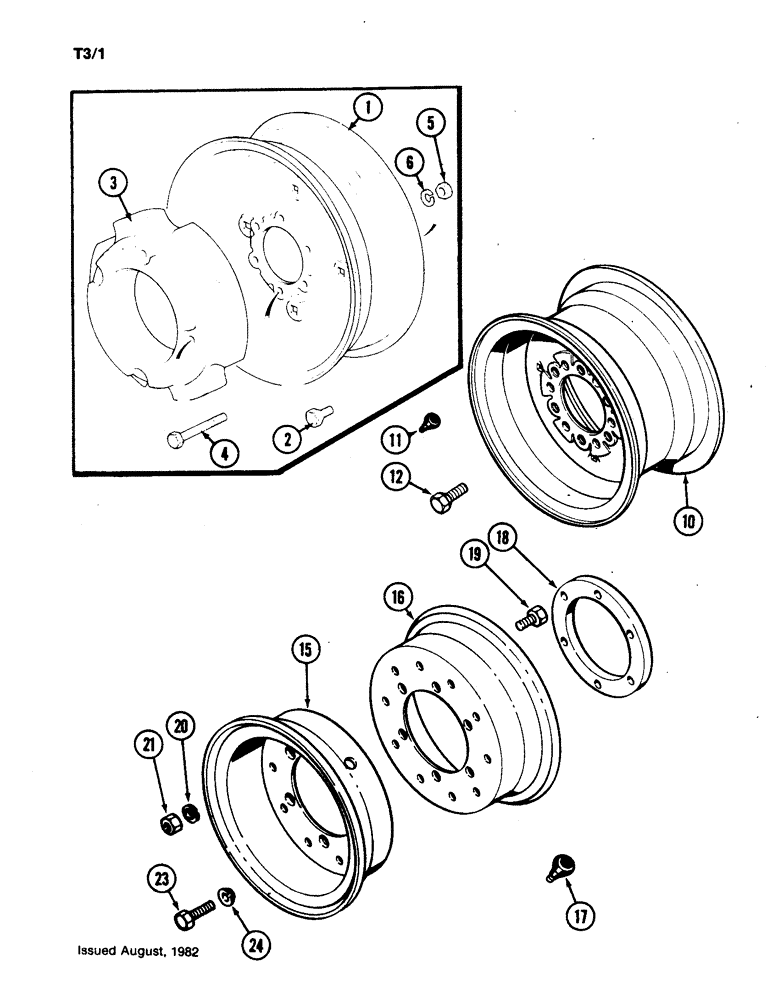

Запчасти Case IH 1190 (T-03) - FRONT WHEELS AND BALLAST WEIGHTS (11) - WHEELS & WEIGHTS

1

K947937

WHEEL

FRONT WHEEL - 450E x 16, fits 6.00-16 tires

2шт.

1

K947941

WHEEL

FRONT WHEEL - 5.50 x 16, fits 7.50-16 tires

2шт.

2

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

WHEEL BOLT - 1/2 UNC x 1"

12шт.

UK436

WHEEL

WEIGHT UNIT - ballast, Includes Ref: 3 - 6

1шт.

3

K909316

WEIGHT

BALLAST WEIGHT - 85 lb.

2шт.

4

K600889

BOLT

- 1/2 UNC x 3-3/4"

8шт.

5

280431

NUT,1/2"-13, G5

8шт.

6

K626345

LOCK WASHER

WASHER - lock, 1/2"

8шт.

10

K952716

WHEEL

- front, 8LB x 15 (Takes 9.5L-1511 tire), low profile special

2шт.

11

A38261

VALVE

- air, tire, low profile special

2шт.

12

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

BOLT - wheel, 1/2 x 1" NC hex, low profile special

12шт.

15

A143943

WHEEL

- outer half, front 5.50-10 (With valve hole) (Takes 9.0 x 10 tire), low profile special

2шт.

16

A143944

WHEEL

- inner half, front 5.50-10 (Without valve hole) (Takes 9.0 x 10 tire), low profile special

2шт.

17

A38261

VALVE

- air, tire, low profile special

2шт.

18

K910174

BUSHING

SPACER - front wheel, low profile special

2шт.

19

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Low profile special Hex, 1/2"-13 x 1", G5, Full Thd

20шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Low profile special 1/2"

20шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

Low profile special 1/2"-13, G5

12шт.

23

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Low profile special Hex, 1/2"-13 x 2", G5

12шт.

24

K626687

WASHER

- cone, special, low profile special

12шт.
