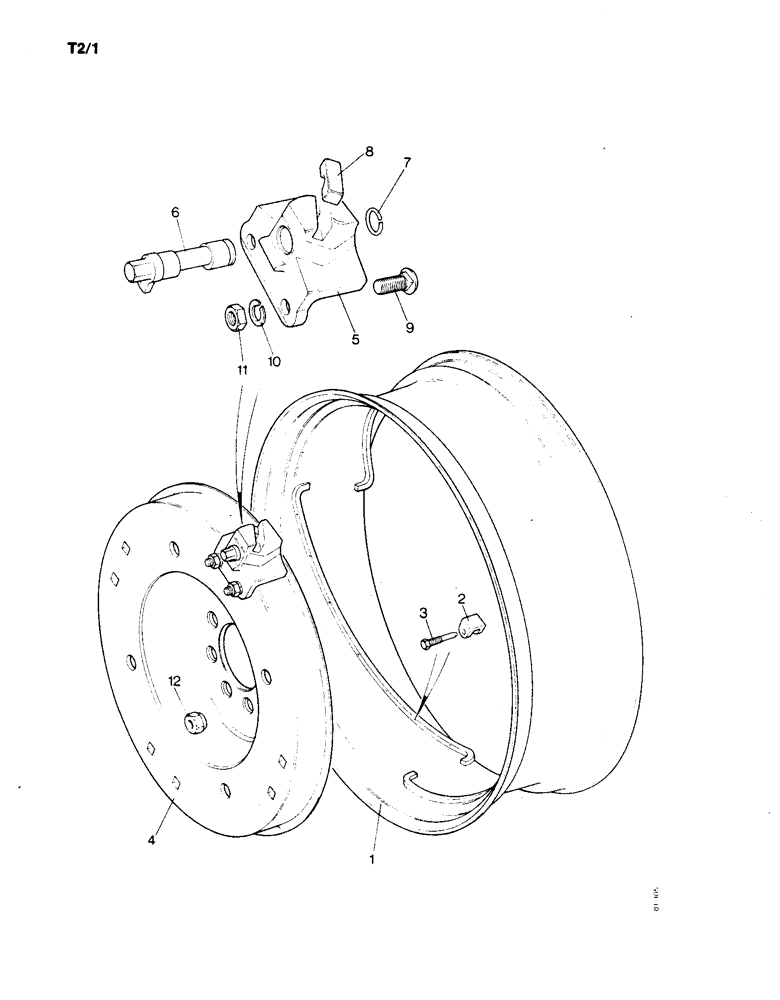

Запчасти Case IH 1190 (T-02) - POWER ADJUSTED REAR WHEELS (11) - WHEELS & WEIGHTS

K302517

RIM

REAR RIM AND CENTER ASSEMBLY - fits 12.4/11-28, 13.6/12-28 and 14.9/13-28 tires, Includes Ref: 1 - 11

2шт.

1

K302519

RIM

REAR WHEEL RIM - W11 x 28

1шт.

2

K917337

STOP

BRACKET - wheel rim

2шт.

3

K200142

SCREW,Hex, 9/16" x 2 1/8"

SETSCREW - stop bracket

2шт.

4

K302518

WHEEL

REAR WHEEL CENTER

1шт.

5

K917340

SUPPORT

BODY

4шт.

6

K200128

PIN

ECCENTRIC PIN

4шт.

7

K917341

RING

SNAP RING - eccentric pin

4шт.

8

K917342

BLOCK

4шт.

9

K601323

BOLT

- 5/8 UNC x 1-5/8", body to center

8шт.

10

K19485

WASHER

- lock, 5/8", body to center - order K966207 (10)

8шт.

11

K607035

NUT

- 5/8 UNC, Serial Range: body-center

8шт.

12

K617176

NUT

WHEEL NUT

16шт.
