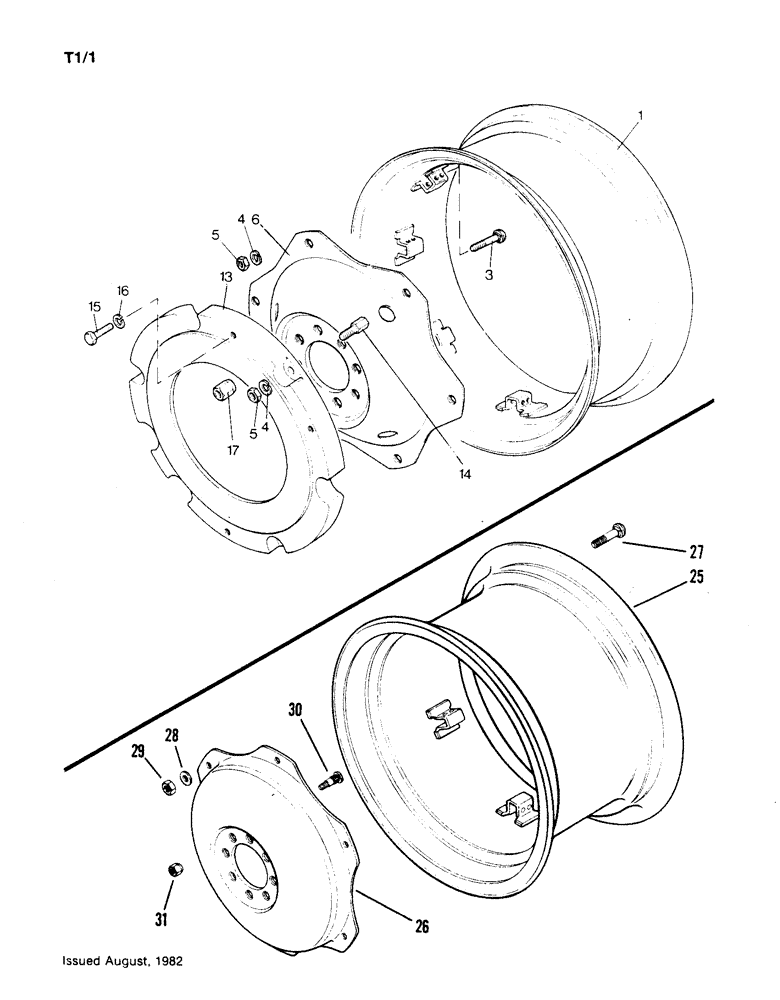

Запчасти Case IH 1190 (T-01) - REAR WHEELS AND BALLAST WEIGHTS (11) - WHEELS & WEIGHTS

K301059

WHEEL

REAR RIM AND CENTER ASSEMBLY - fits 13.6/12-28 and 14.9/13-28 tires, Includes Ref: 1 - 5

2шт.

1

K301060

RIM

- rear wheel, W11 x 28

1шт.

6

K301003

WHEEL

CENTER - rear

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

RIM BOLT - 5/8 UNF x 2-7/8"

8шт.

4

K19475

WASHER

- 5/8"

8шт.

5

425-1110

NUT,5/8"-18, G5

8шт.

K301039

RIM

REAR RIM AND CENTER ASSEMBLY - fits 14.9 x 24 tires, Includes Ref: 1 - 5

2шт.

1

K301040

DISC, WHEEL

RIM - rear wheel

1шт.

6

K301038

WHEEL

CENTER - rear

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

RIM BOLT - 5/8 UNF x 2-7/8"

12шт.

4

K19475

WASHER

- 5/8"

12шт.

5

425-1110

NUT,5/8"-18, G5

12шт.

UK729

WHEEL

BALLAST WEIGHT UNIT - for wheel K301059, Includes Ref: 13 - 16

1шт.

13

K86167

WEIGHT

BALLAST WEIGHT - 100 lb. for wheel K301059

2шт.

14

K914869

STUD

- 5/8 UNF, special, for wheel K301059

6шт.

15

K19305

BOLT

- 5/8 BSF x 2", for wheel K301059

6шт.

16

K19485

WASHER

- lock, 5/8", for wheel K301059

12шт.

17

K617171

WHEEL NUT

- wheel

16шт.

25

A161257

RIM

- rear wheel, W15-24 (Takes 16.9 x 24 R1 ro R3 tire), low profile special

2шт.

26

K301038

WHEEL

CENTER WHEEL - rear rim, low profile special

2шт.

27

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 x 2.88 NF special, low profile special

12шт.

28

K19475

WASHER

- flat, 5/8", low profile special

12шт.

29

129-565

SPECIAL NUT,5/8"-18, G5

- 5/8" NF hex, low profile special

12шт.

30

K611266

BOLT

- mounting, 5/8 x 2-1/8" NF Special, low profile special

16шт.

31

K617171

WHEEL NUT

- 5/8" NF hex, low profile special

16шт.
