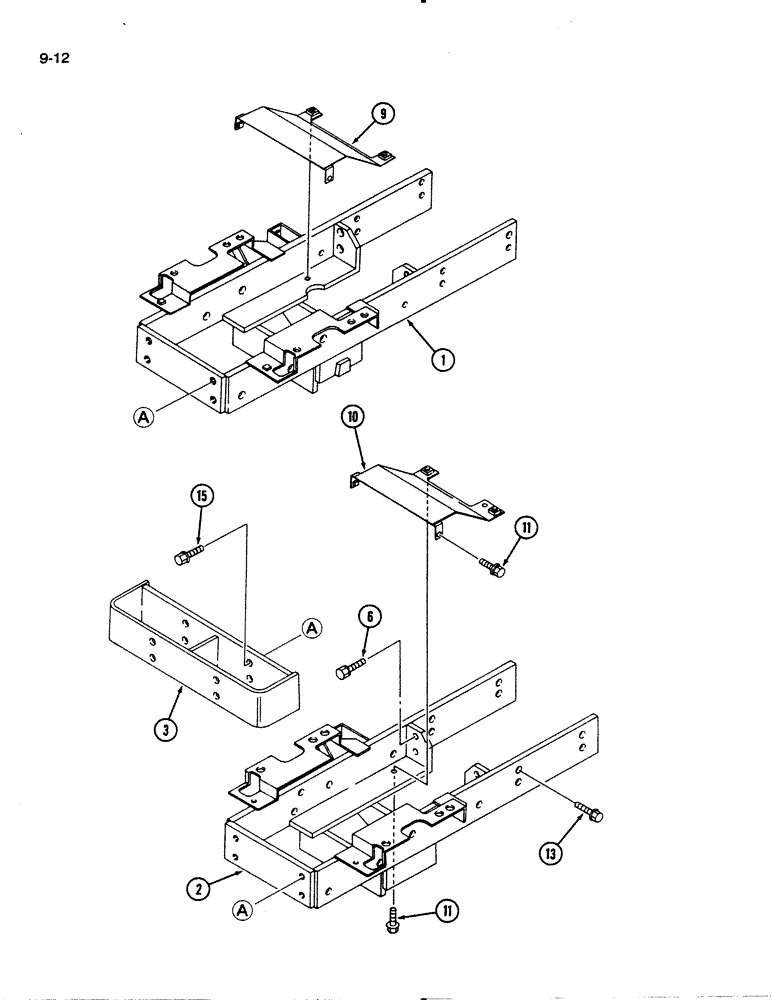

Запчасти Case IH 1140 (9-12) - MAIN FRAME AND WEIGHT BRACKET (09) - CHASSIS/ATTACHMENTS

1

1991779C1

BRACKET

FRAME ASSEMBLY - main (1130 Tractor)

1шт.

2

1991780C1

BRACKET

FRAME ASSEMBLY - main (1140 Tractor)

1шт.

3

1991781C1

BRACKET

- weight

1шт.

6

514-928

BOLT,Hex, M14 x 1.5 x 60mm, Cl 10.9

2шт.

PER WERDS THERE IS A 514-929. 14 x 1.5 x 35 10.9 BOLT USED WITH THIS FRAME.

1шт.

9

1991783C1

COVER

- frame (1130 Tractor)

1шт.

10

1991784C1

COVER

- frame (1140 Tractor)

1шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

13

1992535C1

BOLT

8шт.

15

514-821

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.25 x 40 mm

4шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.
