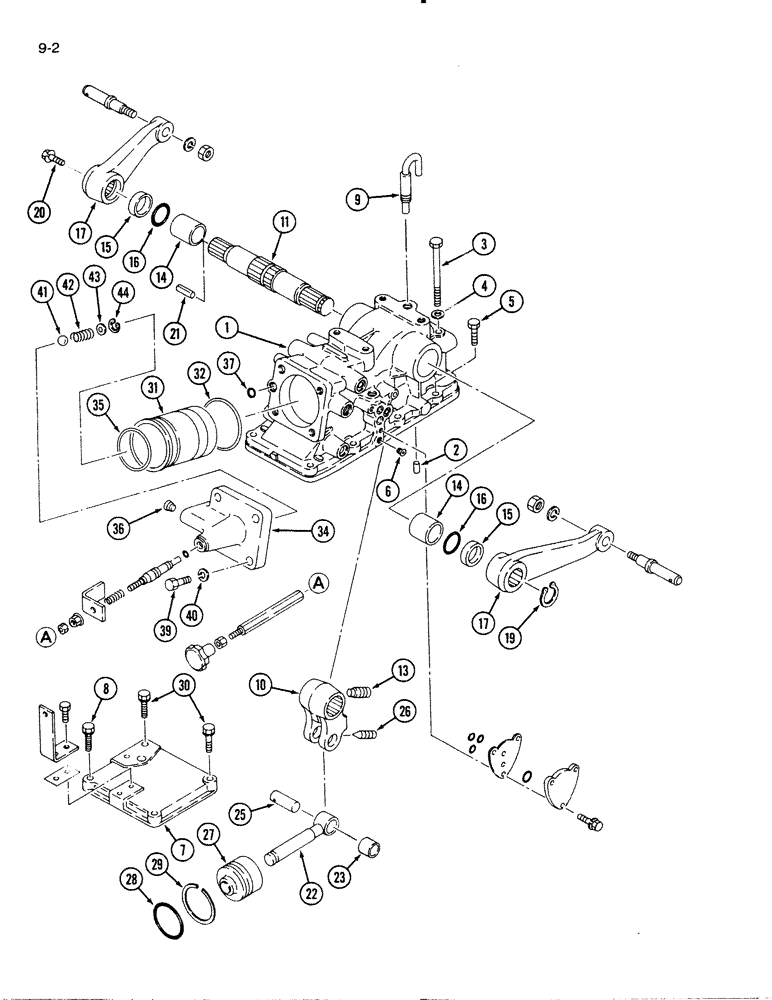

Запчасти Case IH 1140 (9-02) - HITCH SYSTEM (09) - CHASSIS/ATTACHMENTS

1

1992019C1

CASE

HOUSING - rockshaft

1шт.

2

837-10020

DOWEL,M10 x 20

M10 x 20

2шт.

3

514-727

BOLT,Hex, M10 x 1.25 x 130mm, Cl 8.8

- hex, 10 mm - 1.25 x 130 mm

2шт.

4

892-11010

LOCK WASHER,M10

2шт.

5

514-713

BOLT,Hex, M10 x 1.25 x 45mm, Cl 5.6

- hex, 10 mm - 1.25 x 45 mm

6шт.

892-11010

LOCK WASHER,M10

6шт.

6

444693

PLUG,Hex Soc, 1/4"-18, Brass

- hex socket, automotive, 1/4-18 pipe

4шт.

7

1992020C1

COVER

- housing

1шт.

8

514-718

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.25 x 40 mm

1шт.

892-11010

LOCK WASHER,M10

1шт.

9

1992659C1

VENTILATION PIPE

TUBE - vent pipe

1шт.

10

1992021C1

ARM

- power

1шт.

1992021C1 VERBAGE IN SYSTEM SAYS THIS IS A COVER. PER PRINT IT IS A POWER ARM.

1шт.

11

1992022C1

SHAFT

ROCKSHAFT - hitch

1шт.

13

879-50820

SET SCREW,Hex Skt, M8 x 20mm, Dog Pt

SCREW - set, dog point, 8 x 20 mm

1шт.

14

1981367C1

SPACER

BUSHING - housing, 50 mm

2шт.

15

1962290C1

COLLAR CLAMP

SPACER - rockshaft, 5 mm

2шт.

16

1282531C1

O-RING

O-RING - 16 mm ID

2шт.

17

1992023C1

ARM

- lift

2шт.

19

933572R1

SNAP RING,M42, Ext

RING - retaining

1шт.

20

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

892-11010

LOCK WASHER,M10

1шт.

21

838-1416

LOCK PIN,M4 x 16, Slotted

PIN - spring, 4 x 16 mm

1шт.

22

1992024C1

ROD

- piston

1шт.

23

1275194C1

BUSHING

- piston rod

1шт.

25

1991478C1

PIN

- piston

1шт.

26

877-20816

SET SCREW,M8 x 16mm

SCREW - set, cone point, 8 x 16 mm

1шт.

27

1992025C1

PISTON

- lift

1шт.

28

1962522C1

O-RING

- piston

1шт.

29

1992026C1

RING

- back up

1шт.

30

514-722

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

- hex, 10 x 55 mm (Tractors with auxiliary valve)

2шт.

30

514-711

BOLT,Hex, M10 x 1.25 x 50mm, Cl 8.8

- hex, 10 x 50 mm (Tractors without auxiliary valve)

2шт.

892-11010

LOCK WASHER,M10

2шт.

31

1992027C1

CYLINDER

ASSEMBLY - lift

1шт.

Is a cylinder barrel.

1шт.

32

1992660C1

O-RING,90mm ID x 93mm OD x 2mm

1шт.

34

1992028C1

HEAD

- cylinder

1шт.

35

1962517C1

O-RING

- 75 mm ID

1шт.

36

444692

PLUG,Hex Soc, 1/4"-18

- hex socket, automotive pipe, 1/4-18 PT

1шт.

37

1273523C1

O-RING

O-RING - 12 mm ID

1шт.

39

514-922

BOLT,Hex, M14 x 1.5 x 50mm, Cl 8.8, Full Thd

- hex, 14 x 50 mm

4шт.

40

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

41

17014R1

BALL

- 7/16 inch, Grade 25

1шт.

42

1275044C1

VALVE SPRING

SPRING - cylinder head

1шт.

43

1273211C1

WASHER

- flat, 1/4 x 35/64 x 3/64 inch

1шт.

44

933687R1

SNAP RING,M15, Int

RING - retaining, internal, 16 mm OD

1шт.
