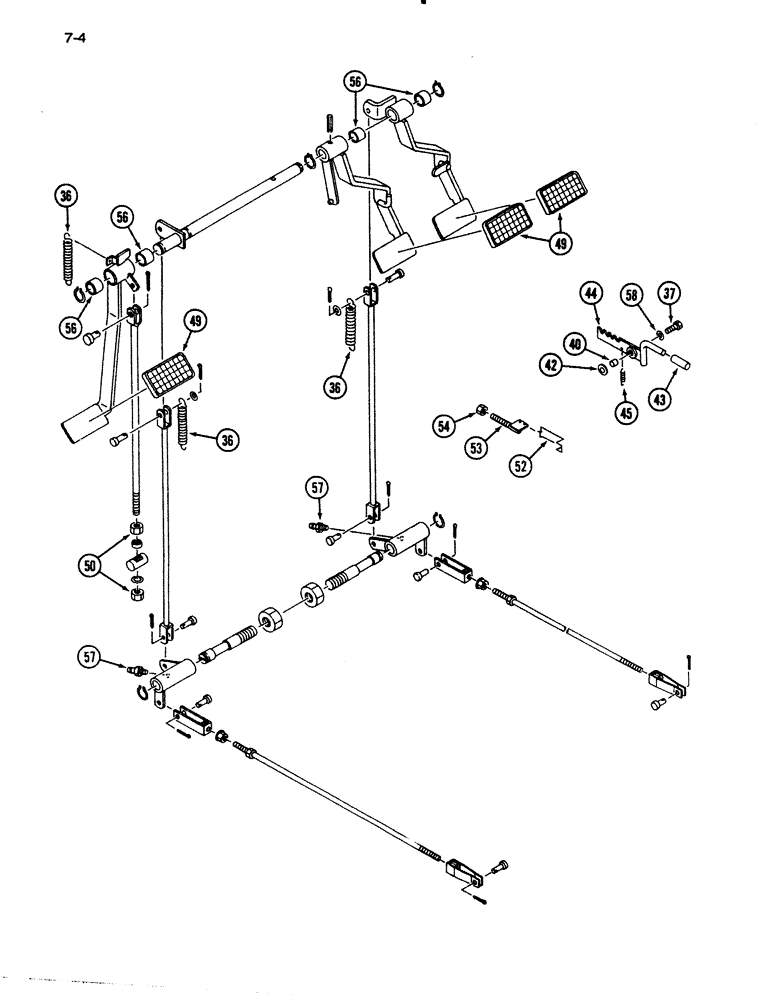

Запчасти Case IH 1140 (7-04) - BRAKE AND CLUTCH CONTROLS (07) - BRAKES

36

1992327C1

SPRING

- clutch linkage

3шт.

37

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

40

1269821C1

SPACER

- ratchet

1шт.

42

1992809C1

SLEEVE CYLINDER

WASHER

1шт.

43

1992303C1

GRIP

- handle

1шт.

44

1992326C1

LEVER

- parking brake

1шт.

45

1269815C1

VALVE SPRING

SPRING

1шт.

49

1992325C1

COVER

- foot pedal

3шт.

50

825-11412

NUT,M12 x 1.25, Cl 8

- hex, 12 mm

2шт.

52

1992330C1

HOOK

- clutch pedal

1шт.

53

1992815C1

BOLT

- stopper

1шт.

54

825-11412

NUT,M12 x 1.25, Cl 8

- hex, 12 mm

1шт.

56

1991217C1

BUSHING

4шт.

57

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

58

896-16008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

- flat, 9 x 17 x 2 mm

1шт.
