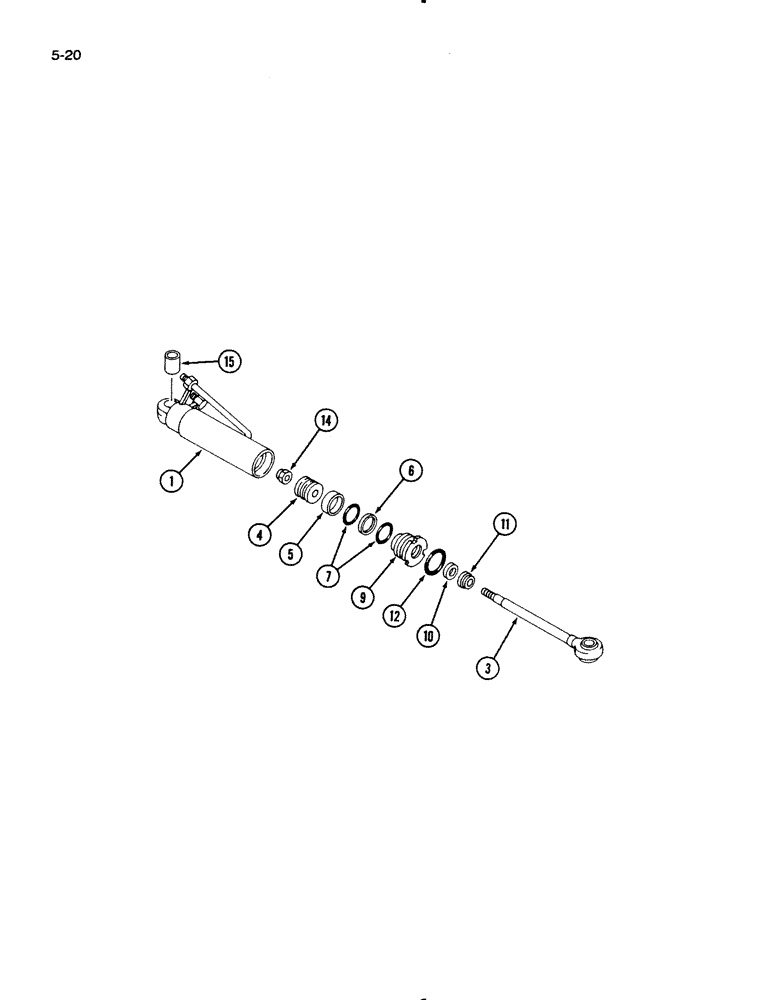

Запчасти Case IH 1140 (5-20) - STEERING CYLINDER (05) - STEERING

1991831C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering, Includes: Ref. 1 - 15

1шт.

1

1991832C1

TUBE

ASSEMBLY - cylinder

1шт.

3

1991833C1

ROD ASSY.

ROD - cylinder

1шт.

4

1991200C1

PISTON

- cylinder

1шт.

5

1991202C1

RING

- wear

1шт.

Part of Seal Kit P/N 1991201C1

1шт.

6

1991203C1

O-RING

1шт.

Part of Seal Kit P/N 1991201C1

1шт.

7

1992746C1

RING

2шт.

Part of Seal Kit P/N 1991201C1

1шт.

9

1991204C1

CASE

RETAINER - cylinder end

1шт.

10

1991206C1

SEAL

- rod

1шт.

11

1991207C1

SEAL

SEAL - dust

1шт.

12

1991208C1

O-RING

1шт.

14

825-11412

NUT,M12 x 1.25, Cl 8

- hex, 12 mm

1шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

1шт.

15

1991209C1

BUSHING

1шт.

1991201C1

SEAL KIT

- seal, Includes: Ref. 5, 6 and 7

1шт.
