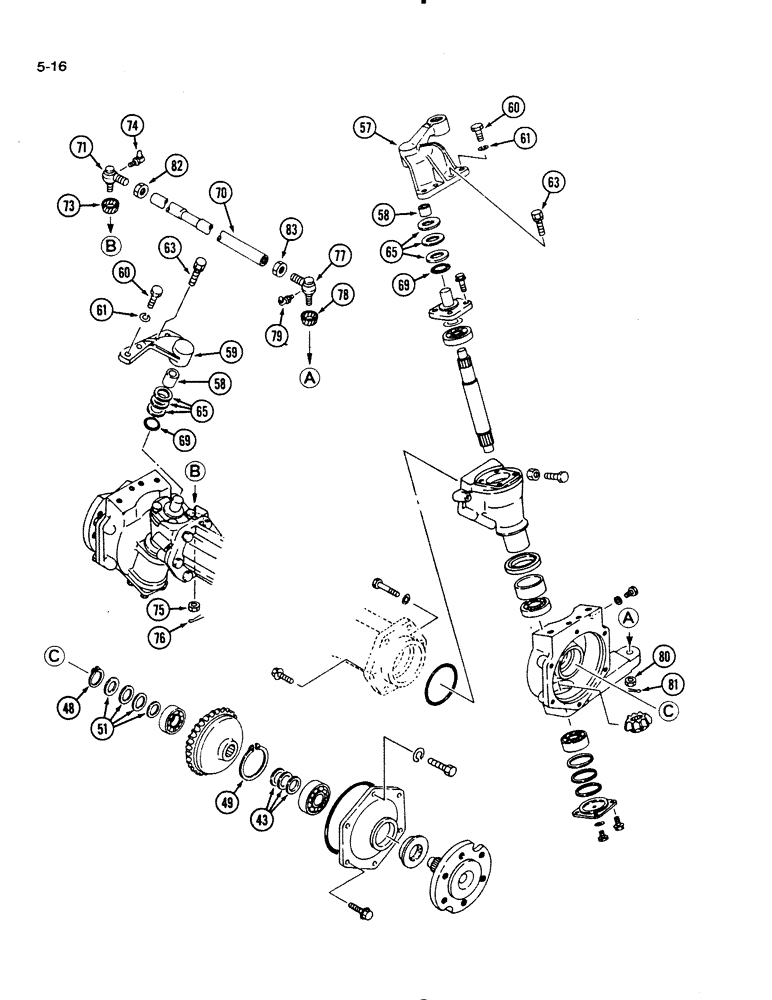

Запчасти Case IH 1140 (5-16) - FRONT AXLE FINAL DRIVE, TIE ROD AND STEERING LINKAGE, MFD TRACTOR (05) - STEERING
№
Артикул
Название
Примечание
Количество
1273206C1
SHIM
KIT - bevel gear, Includes: Ref. 43
1шт.
43
NSS
NOT SOLD SEPARAT
SHIM - wheel shaft
1шт.
43
NSS
NOT SOLD SEPARAT
SHIM - wheel shaft
1шт.
43
NSS
NOT SOLD SEPARAT
SHIM - wheel shaft
1шт.
43
NSS
NOT SOLD SEPARAT
SHIM - wheel shaft
1шт.
43
NSS
NOT SOLD SEPARAT
SHIM - wheel shaft
1шт.
48
933128R1
SNAP RING,M25, Ext
RING - retaining, external, 23 mm ID
2шт.
49
933076R1
SNAP RING,M72, Int
RING - retaining, internal, 76 mm OD
2шт.
1273217C1
SHIM
KIT - axle shaft, Includes: Ref. 51
1шт.
51
NSS
NOT SOLD SEPARAT
SHIM - axle shaft
1шт.
51
NSS
NOT SOLD SEPARAT
SHIM - axle shaft
1шт.
51
NSS
NOT SOLD SEPARAT
SHIM - axle shaft
1шт.
51
NSS
NOT SOLD SEPARAT
SHIM - axle shaft
1шт.
51
NSS
NOT SOLD SEPARAT
SHIM - axle shaft
1шт.
57
1991826C1
ARM
- pivot, left
1шт.
58
1273226C1
BUSHING
- steering arm
2шт.
59
1991827C1
ARM
- pivot, right
1шт.
60
1273558C1
BOLT,Hex, M12 x 1.25 x 35mm
BOLT - hex, special
4шт.
61
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
4шт.
63
514-842
BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd
4шт.
892-11012
LOCK WASHER,M12
WASHER, LOCK, M12
4шт.
1273560C1
SHIM
KIT - steering arm, Includes: Ref. 65
1шт.
65
NSS
NOT SOLD SEPARAT
SHIM - steering arm
1шт.
65
NSS
NOT SOLD SEPARAT
SHIM - steering arm
1шт.
65
NSS
NOT SOLD SEPARAT
SHIM - steering arm
1шт.
65
NSS
NOT SOLD SEPARAT
SHIM - steering arm
1шт.
69
1269874C1
O-RING
O-RING - 24 mm ID
2шт.
1991828C1
ROD ASSY.
ROD ASSEMBLY - tie, Includes: Ref. 70 - 83
1шт.
70
1991829C1
ROD
- tie
1шт.
1273546C91
END ASSY.
END ASSEMBLY - tie rod, right, Includes: Ref. 71 - 76
1шт.
71
NSS
NOT SOLD SEPARAT
SOCKET - tie rod, right
1шт.
73
1273548C1
COVER ASSY
COVER - dust
1шт.
74
1273649C1
FITTING
- grease, extra short, straight, 1/4-18 PT
1шт.
75
1273549C1
NUT
- castle, 12 mm
1шт.
76
732-3220
COTTER PIN,M3.2 x 20
PIN - cotter, 3.2 x 20 mm
1шт.
1273547C91
END ASSY.
END ASSEMBLY - tie rod, left, Includes: Ref. 77 - 81
1шт.
77
NSS
NOT SOLD SEPARAT
SOCKET - tie rod, left
1шт.
78
1273548C1
COVER ASSY
COVER - dust
1шт.
79
1273649C1
FITTING
- grease, extra short, straight, 1/4-18 PT
1шт.
80
1273549C1
NUT
- castle, 12 mm
1шт.
81
732-3220
COTTER PIN,M3.2 x 20
PIN - cotter, 3.2 x 20 mm
1шт.
82
1273544C1
NUT
- hex, special, 17 mm
1шт.
83
1273545C1
NUT
- hex, special, left hand thread, 17 mm
1шт.
Выбрано товаров: 43
