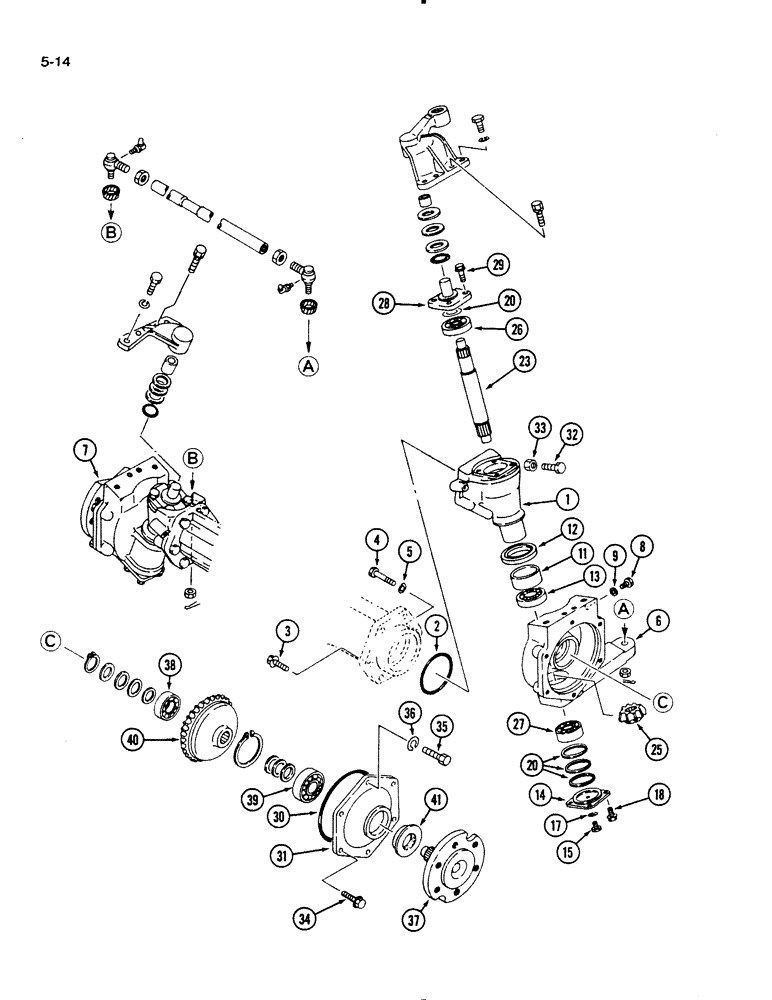

Запчасти Case IH 1140 (5-14) - FRONT AXLE FINAL DRIVE, TIE ROD AND STEERING LINKAGE, MFD TRACTOR (05) - STEERING

1

1991821C1

HOUSING

- king pin

2шт.

2

1269887C1

O-RING

O-RING - 75 mm ID

2шт.

3

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.25 x 30 mm

10шт.

892-11010

LOCK WASHER,M10

10шт.

4

1273202C1

BOLT,Hex, M10 x 1.25 x 35mm

BOLT - shoulder

2шт.

5

892-11010

LOCK WASHER,M10

2шт.

6

1991822C1

HOUSING ASSY.

HOUSING - final drive, left

1шт.

7

1991823C1

HOUSING ASSY.

HOUSING - final drive, right

1шт.

8

1269630C1

BOLT,M8 x 1.25 x 12mm

BOLT - tank drain plug

2шт.

9

1992268C1

SEALING WASHER

- drain plug

2шт.

11

1273227C1

SPACER

BUSHING - housing

2шт.

12

1273212C1

OIL SEAL

SEAL - oil

2шт.

13

1271869C91

THRUST BEARING

ASSEMBLY - thrust, ball

2шт.

14

1273161C1

COVER ASSY

COVER - housing, lower

2шт.

15

1269630C1

BOLT,M8 x 1.25 x 12mm

BOLT - tank drain plug

2шт.

17

1992268C1

SEALING WASHER

- washer

2шт.

18

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

8шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

1991605C1

SHIM KIT

KIT - shim, Includes: Ref. 20

1шт.

20

NSS

NOT SOLD SEPARAT

SHIM - bearing

1шт.

20

NSS

NOT SOLD SEPARAT

SHIM - bearing

1шт.

20

NSS

NOT SOLD SEPARAT

SHIM - bearin

1шт.

23

1991824C1

SHAFT

- king pin

2шт.

25

1273207C1

GEAR WHEEL

GEAR - pinion, 12 tooth

2шт.

26

1991825C1

BALL BEARING,20 mm ID x 52 mm OD x 15 mm

BEARING ASSEMBLY - ball

2шт.

27

1288022C91

BEARING, BALL

BEARING ASSEMBLY - ball, 51/64 inch ID

2шт.

28

1273213C1

NOZZLE HOLDER

HOLDER - bearing, upper

2шт.

29

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

892-11010

LOCK WASHER,M10

8шт.

30

1269888C1

O-RING

O-RING - 145 mm ID

2шт.

31

1273205C1

COVER ASSY

COVER - housing

2шт.

32

1269764C1

BOLT,Hex, M10 x 1.25 x 40mm

- hex, 40 mm

2шт.

33

825-1410

NUT,M10, Cl 8

2шт.

34

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

10шт.

892-11010

LOCK WASHER,M10

10шт.

35

1273202C1

BOLT,Hex, M10 x 1.25 x 35mm

BOLT - shoulder

2шт.

36

892-11010

LOCK WASHER,M10

2шт.

37

1273204C1

SHAFT HOUSING

SHAFT - wheel

2шт.

38

1271864C91

CRANKSHAFT BEARING

BEARING ASSEMBLY - ball

2шт.

39

1271866C91

BALL BEARING

ASSEMBLY - ball

2шт.

40

1273208C1

GEAR WHEEL

GEAR - bevel, 32 tooth

2шт.

41

1273188C1

OIL SEAL

SEAL - oil

2шт.
