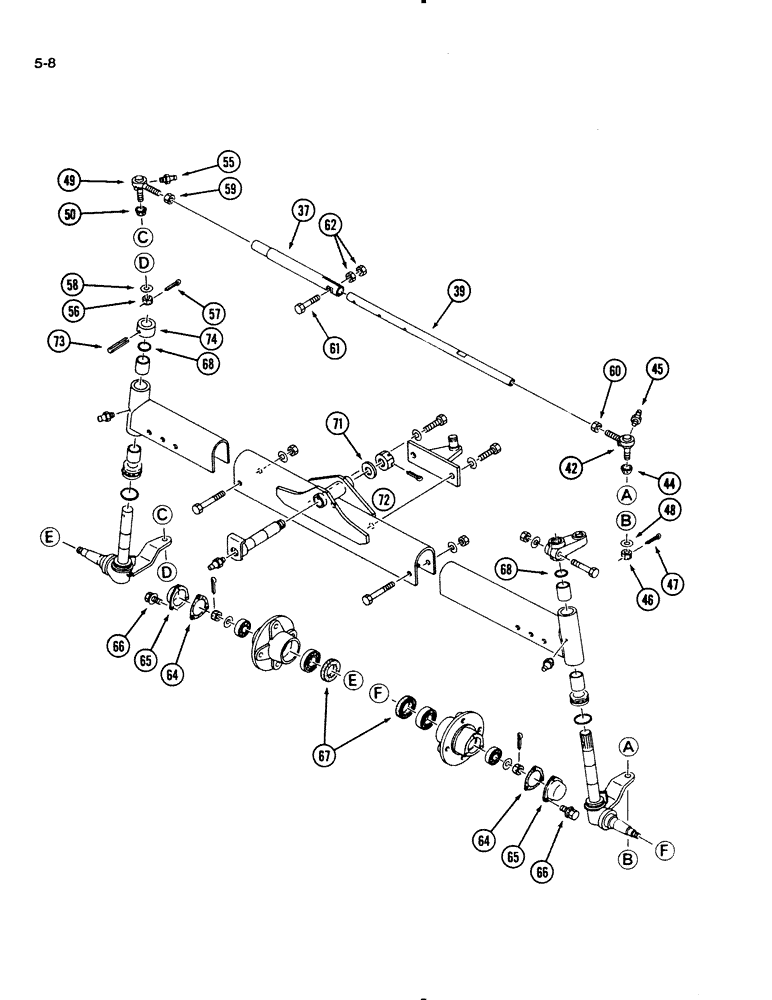

Запчасти Case IH 1140 (5-08) - FRONT AXLE, TWO WHEEL DRIVE, 1140 TRACTOR (05) - STEERING

37

1962108C1

TUBE,15.2 mm ID, 28.6 mm OD, 328 mm Length

ROD - tie, inner right

1шт.

39

1991809C1

TIE-ROD

ROD - tie, inner left

1шт.

1273546C91

END ASSY.

END ASSEMBLY - tie rod, left, Includes: Ref. 42 - 48

1шт.

42

NSS

NOT SOLD SEPARAT

SOCKET - tie rod, left

1шт.

44

1273548C1

COVER ASSY

COVER - dust

1шт.

45

1273649C1

FITTING

- grease, extra short, straight, 1/4-18 PT

1шт.

46

1273549C1

NUT

- castle, 12 mm

1шт.

47

732-3220

COTTER PIN,M3.2 x 20

PIN - cotter, 3.2 x 20 mm

1шт.

48

1991153C1

WASHER

- lock

1шт.

1273547C91

END ASSY.

END ASSEMBLY - tie rod, right

1шт.

49

NSS

NOT SOLD SEPARAT

SOCKET - tie rod, right

1шт.

50

1273548C1

COVER ASSY

COVER - dust

1шт.

55

1273548C1

COVER ASSY

FITTING - grease, extra short, straight, 1/4-18 PT

1шт.

56

1273549C1

NUT

- castle, 12 mm

1шт.

57

732-3220

COTTER PIN,M3.2 x 20

PIN - cotter, 3.2 x 20 mm

1шт.

58

1991154C1

WASHER

WASHER - lock

2шт.

59

1273545C1

NUT

- hex, special, left hand thread, 17 mm

1шт.

60

1273544C1

NUT

- hex, special, 17 mm

1шт.

61

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, 8 mm - 1.25 x 45 mm

1шт.

62

825-1408

NUT,M8, Cl 8

2шт.

64

1271891C1

GASKET

- hub cap

2шт.

65

1269749C1

CYLINDER END CAP

CAP - hub

2шт.

66

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

6шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6шт.

67

1992431C1

OIL SEAL

SEAL - oil

2шт.

68

1962519C1

O-RING

O-RING - 29 mm ID

2шт.

71

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

- flat, 26 ID x 44 x 5 mm, hardened

1шт.

72

732-5040

COTTER PIN,M5 x 40

PIN - cotter, 5 x 40 mm

1шт.

73

838-1848

LOCK PIN,M8 x 48 Slotted

PIN - slotted spring, 8 x 48 mm

1шт.

74

1962088C1

BOSS

COLLAR - spindle

1шт.
