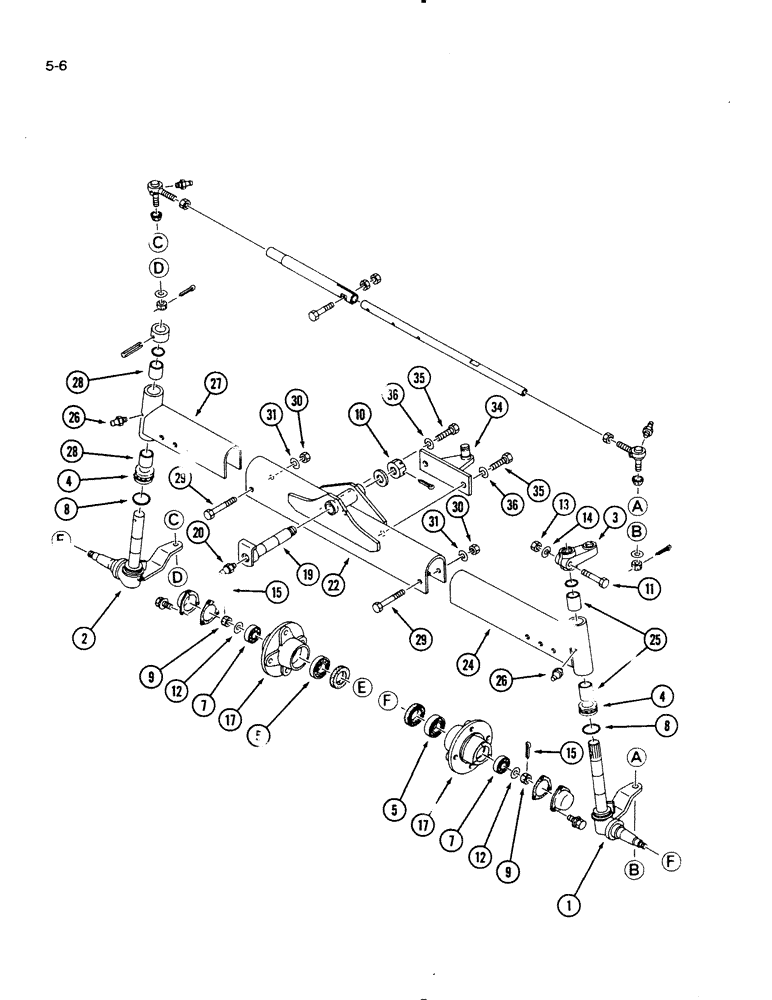

Запчасти Case IH 1140 (5-06) - FRONT AXLE, TWO WHEEL DRIVE, 1140 TRACTOR (05) - STEERING

1

1991787C1

KNUCKLE

SPINDLE - axle, left

1шт.

2

1991788C1

KNUCKLE

SPINDLE - axle, right

1шт.

3

1991789C1

STEERING ARM

ARM - steering

1шт.

4

1271869C91

THRUST BEARING

ASSEMBLY - thrust, ball

2шт.

5

1271857C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

7

1271862C91

BEARING, BALL

BEARING ASSEMBLY - ball

2шт.

8

1962510C1

O-RING

O-RING - 42 mm ID

2шт.

9

1271877C1

NUT

- castle, 15 mm

2шт.

10

1992745C1

NUT

2шт.

11

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

- hex, 10 mm - 1.25 x 60 mm

1шт.

12

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

2шт.

13

825-11410

NUT,M10 x 1.25, Cl 8

1шт.

14

892-11010

LOCK WASHER,M10

1шт.

15

732-4032

COTTER PIN,M4 x 32

PIN - cotter, 4 x 32 mm

2шт.

17

1991793C1

HUB

- wheel, front

2шт.

19

1991794C1

PIN

- center

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

22

1991801C1

AXLE

ASSEMBLY - center section

1шт.

1991802C1

AXLE

ASSEMBLY - outer, left, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

AXLE - outer, left

1шт.

25

1962084C1

BUSHING

- front axle

2шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

1991804C1

AXLE

ASSEMBLY - outer, right, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

AXLE - outer, right

1шт.

28

1962084C1

BUSHING

- front axle

2шт.

29

514-921

BOLT,Hex, M14 x 1.5 x 100mm, Cl 8.8

- hex, 14 mm - 1.50 x 100 mm

2шт.

30

525-5105

NUT,M14 x 1.5, Cl 8

- hex, 14 mm

2шт.

31

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

2шт.

34

1991806C1

BRACKET

- pin

1шт.

35

514-1013

BOLT,Hex, M16 x 1.5 x 50mm, Cl 8.8, Full Thd

3шт.

36

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

3шт.
