Запчасти Case IH 1140 (4-24) - AUXILIARY ELECTRIC OUTLET (04) - ELECTRICAL SYSTEMS

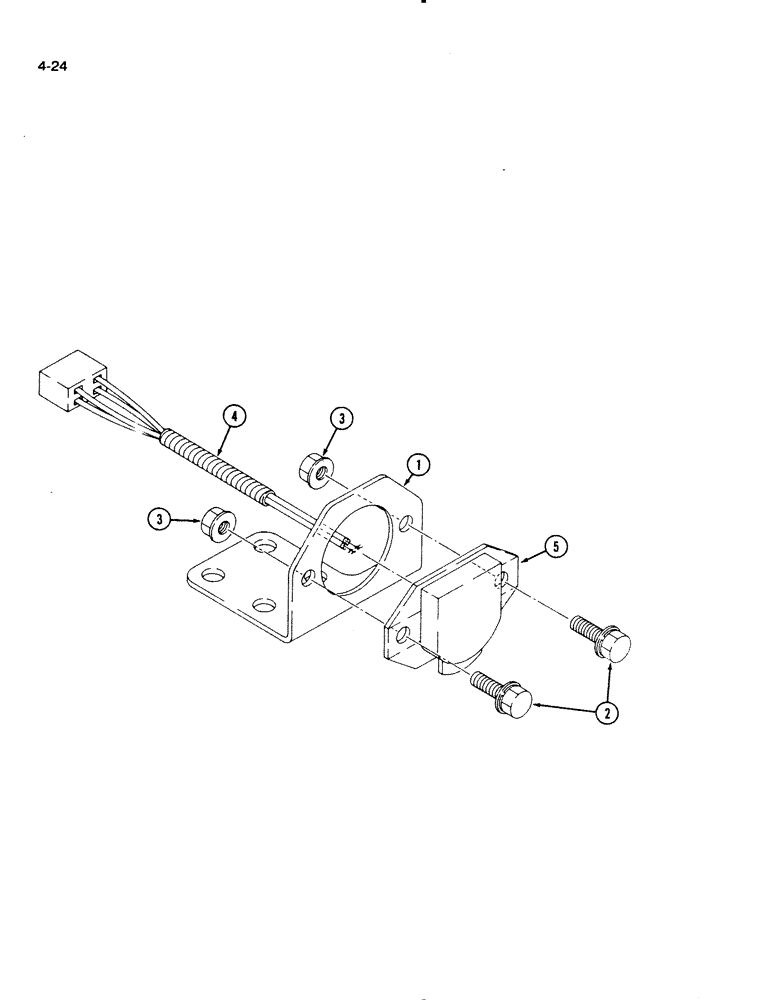

Схема запчастей Case IH 1140 - (4-24) - AUXILIARY ELECTRIC OUTLET (04) - ELECTRICAL SYSTEMS
2
3
3
4
5
1

Артикул

Название

Примечание

Количество

1

1992709C1

BRACKET

- mounting

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

3

825-1408

NUT,M8, Cl 8

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

4

1963007C1

HARNESS

- connector

1шт.

5

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR ASSEMBLY - 7 point auxiliary outlet

1шт.

Выбрано товаров: 8
