Запчасти Case IH 1140 (4-22) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

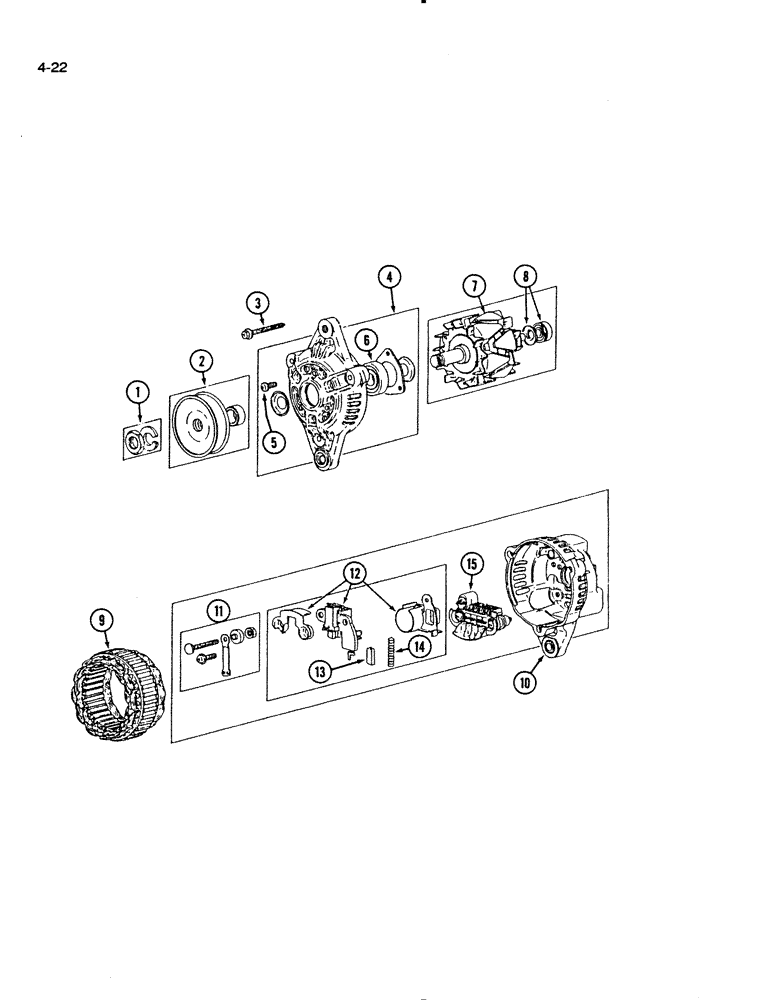

Схема запчастей Case IH 1140 - (4-22) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS
5
12
15
6
2
9
14
1
3
13
7
10
8
11
4

Артикул

Название

Примечание

Количество

1991739C1

ALTERNATOR

ASSEMBLY - engine, Includes: Ref. 1 - 4

1шт.

1

1962948C1

NUT

HARDWARE KIT - nut and washer

1шт.

2

1991054C1

PULLEY

ASSEMBLY - alternator

1шт.

3

1991742C1

BOLT (MACHINE),Set

HARDWARE KIT - screw

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - front, Includes: Ref. 5 and 6

1шт.

5

1991056C1

SET SCREW

HARDWARE SET - screw

1шт.

6

1991057C1

BEARING ASSY

BEARING - rotor, front

1шт.

7

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - alternator, Includes: Ref. 8

1шт.

8

1991059C1

BEARING ASSY

BEARING - rotor, rear

1шт.

9

NSS

NOT SOLD SEPARAT

STATOR - alternator

1шт.

1991744C1

BRACKET

ASSEMBLY - rear

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - alternator, rear

1шт.

11

1991062C1

TERMINAL CONNECTOR

TERMINAL SET - alternator

1шт.

12

1991745C1

REGULATOR

HOLDER ASSEMBLY - brush, Includes: Ref. 13 and 14

1шт.

13

1991064C1

BRUSH, COMMUTATOR

BRUSH - alternator

2шт.

14

1962957C1

VALVE SPRING

SPRING - brush

2шт.

15

1991065C1

RECTIFIER

ASSEMBLY - alternator

1шт.

Выбрано товаров: 17
