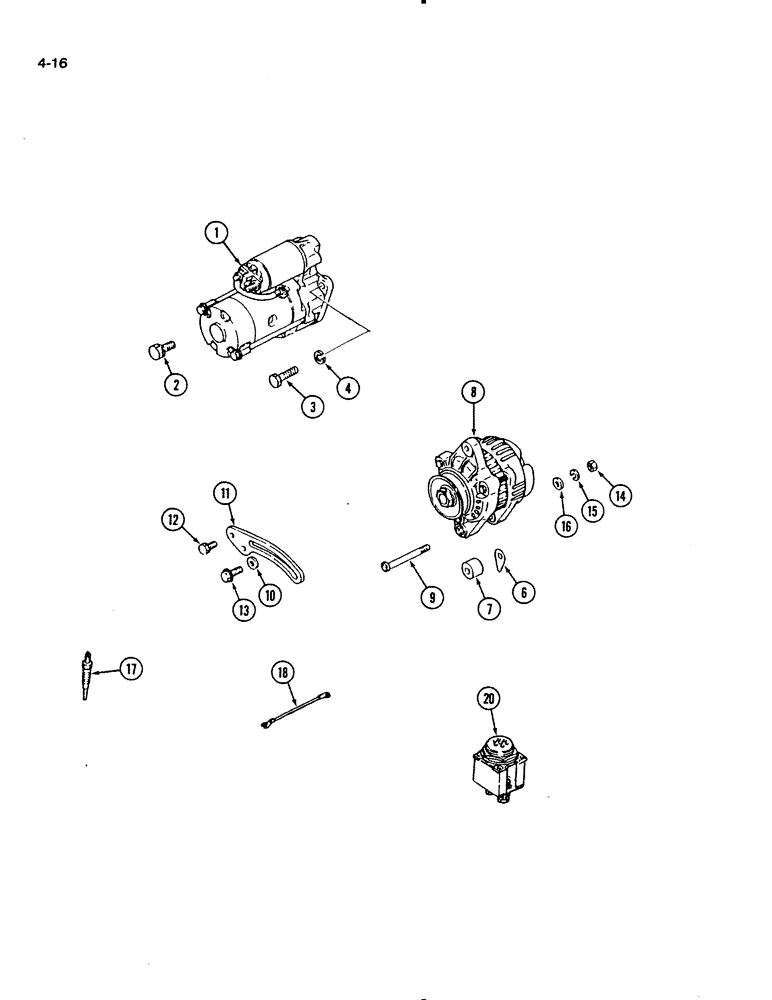

Запчасти Case IH 1140 (4-16) - STARTER MOUNTING, 1140 TRACTOR, ALTERNATOR MOUNTING, GLOW PLUG 1140 TRACTOR (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Fig. 4-20)

1шт.

2

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

892-11010

LOCK WASHER,M10

1шт.

3

1992226C1

BOLT

- hex, 10 x 45 mm

1шт.

4

892-11010

LOCK WASHER,M10

1шт.

6

1273114C1

SHIM

- mounting adjust, alternator mounting

1шт.

7

1991738C1

SPACER

- mounting, alternator mounting

1шт.

8

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Fig. 4-22), alternator mounting

1шт.

9

1991740C1

BOLT

- hex, 8 x 82 mm, alternator mounting

1шт.

10

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, alternator mounting

1шт.

11

1962784C1

BRACKET

STRAP - alternator adjust, alternator mounting

1шт.

12

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm, alternator mounting

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Alternator mounting M8

1шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm, alternator mounting

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Alternator mounting M8

1шт.

14

825-1108

NUT,Hex, M8, Cl 8

Alternator mounting Hex, M8, Cl 8

1шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Alternator mounting M8

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, Alternator mounting

1шт.

17

1992228C1

PLUG

- glow

3шт.

18

1991032C1

LEVER ASSY.

CABLE - glow plug

2шт.

20

1273120C1

LAMP

- indicator, glow plug

1шт.
