Запчасти Case IH 1140 (4-08) - HEAD LAMP ASSEMBLY (04) - ELECTRICAL SYSTEMS

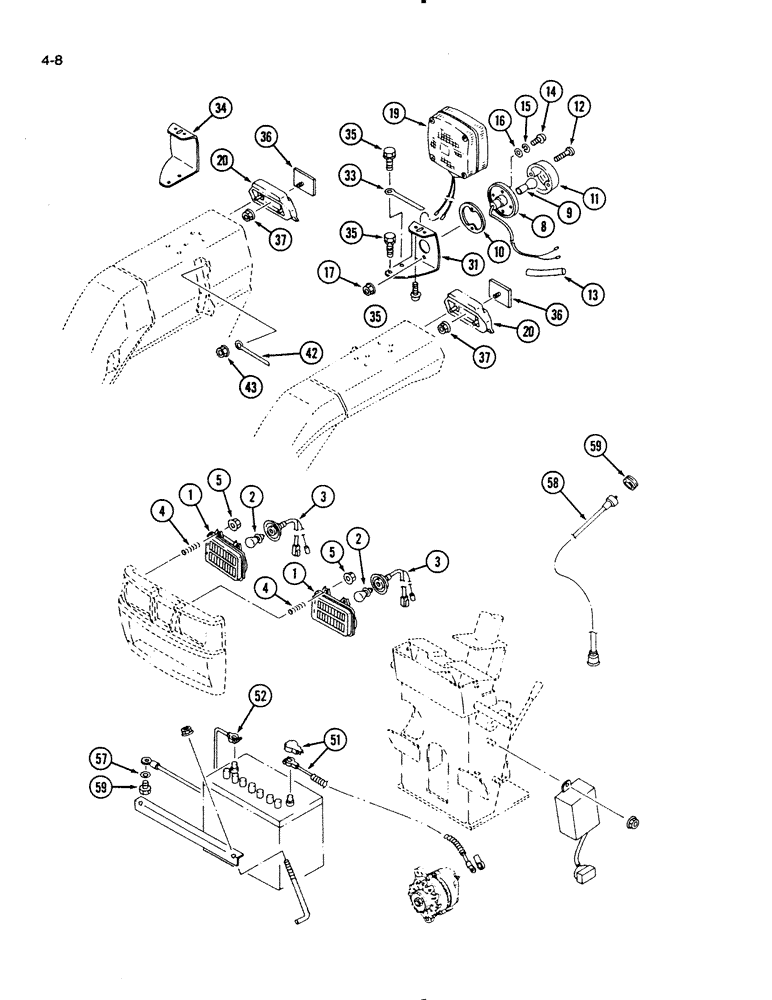

Схема запчастей Case IH 1140 - (4-08) - HEAD LAMP ASSEMBLY (04) - ELECTRICAL SYSTEMS
16
36
3
31
2
1
19
37
5
13
59
59
52
17
12
20
5
3
57
15
34
11
37
8
51
58
4
2
9
43
4
35
20
10
42
33
35
36
1
14
35

Артикул

Название

Примечание

Количество

1271730C91

LIGHT

Headlamp Assembly

2шт.

1

NSS

NOT SOLD SEPARAT

LAMP - head

2шт.

2

1271731C1

BULB

- head lamp

2шт.

3

NSS

NOT SOLD SEPARAT

SOCKET - lamp

2шт.

4

1271733C1

VALVE SPRING

SPRING - headlight adjusting

6шт.

5

824-1405

NUT,M5, Cl 5

6шт.

892-11005

LOCK WASHER,M5

6шт.

1271739C91

LIGHT

LAMP ASSEMBLY - tail, Includes: Ref. 8 - 16

1шт.

8

NSS

NOT SOLD SEPARAT

SOCKET - lamp, tail light assembly

1шт.

9

142450

BULB,C2R, #67, 13.5V

1шт.

10

NSS

NOT SOLD SEPARAT

GASKET - lamp, tail light assembly

1шт.

11

NSS

NOT SOLD SEPARAT

LENS - lamp, tail light assembly

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW, tail light assembly

2шт.

13

NSS

NOT SOLD SEPARAT

TUBE - tail lamp, tail light assembly

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW, tail light assembly

2шт.

15

NSS

NOT SOLD SEPARAT

WASHER - spring, tail light assembly

2шт.

16

NSS

NOT SOLD SEPARAT

WASHER, tail light assembly

2шт.

17

824-1405

NUT,M5, Cl 5

2шт.

892-11005

LOCK WASHER,M5

2шт.

19

91887C91

LIGHT ASSY.

LAMP ASSEMBLY - signal, tail light assembly

2шт.

A41264

BULB,#1156, 12V

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

2шт.

20

REF

INSTRUCTION

COVER - fender rear (see figure 9-18), tail light assembly

2шт.

31

1991133C1

BRACKET

- lamp, left, tail light assembly

1шт.

33

1275499C1

CLAMP

- harness retaining, tail light assembly

2шт.

34

1991134C1

BRACKET

- lamp, right, tail light assembly

1шт.

35

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

892-11008

LOCK WASHER,8mm ID

4шт.

36

1271744C1

REFLECTOR

- red, tail light assembly

2шт.

37

825-1106

NUT,Hex, M6, Cl 8

2шт.

892-11006

LOCK WASHER,M6

2шт.

42

1275499C1

CLAMP

- harness retaining, tail light assembly

2шт.

43

825-1408

NUT,M8, Cl 8

2шт.

892-11008

LOCK WASHER,8mm ID

2шт.

51

1962370C1

CABLE PULLING GRIP

CABLE ASSEMBLY - battery, positive, battery and battery cables

1шт.

52

99184C1

CABLE PULLING GRIP

CABLE - battery ground, battery and battery cables

1шт.

55

1962561C1

BOLT (SPREADER),M8 - 1.25 x 25mm

2шт.

57

892-11008

LOCK WASHER,8mm ID

2шт.

58

1991123C1

CABLE

tachometer, battery and battery cables

1шт.

59

1991124C1

GROMMET

- rubber, battery and battery cables

1шт.

Выбрано товаров: 41
