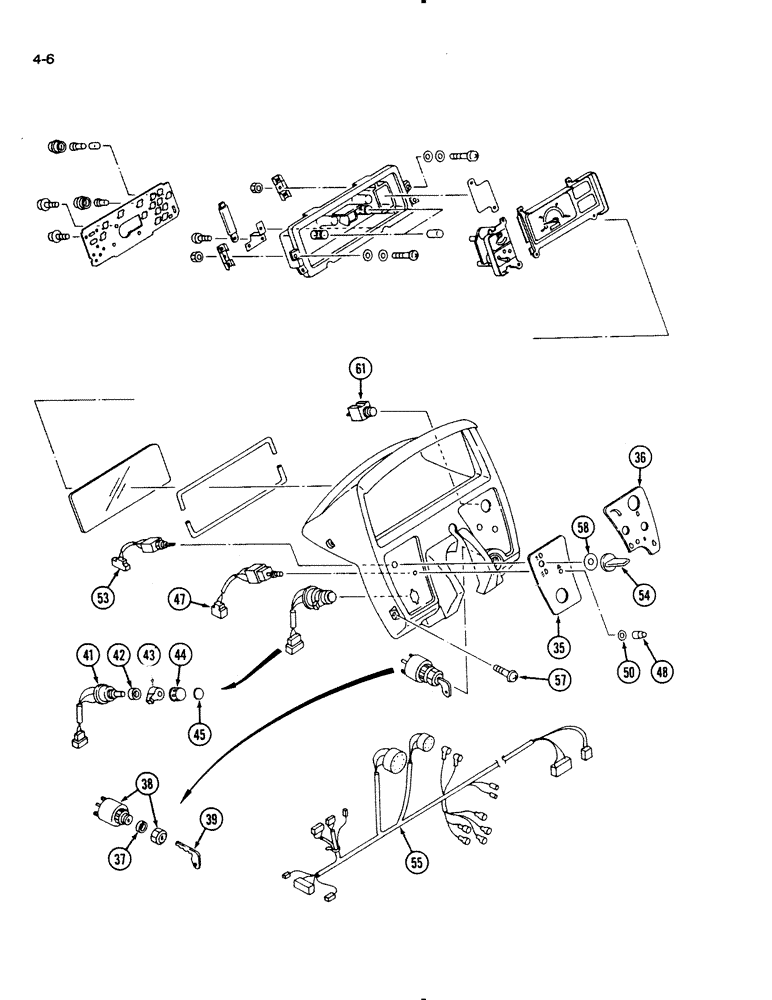

Запчасти Case IH 1140 (4-06) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

35

1991120C1

LABEL

DECAL - instrument panel, left

1шт.

36

1991121C1

LABEL

DECAL - instrument panel, right

1шт.

1991035C1

SWITCH

ASSEMBLY - ignition, Includes: Ref. 37 - 39

1шт.

37

NSS

NOT SOLD SEPARAT

PACKING - starter switch

1шт.

38

NSS

NOT SOLD SEPARAT

SWITCH - ignition

1шт.

39

1961805C1

KEY, IGNITION

KEY - ignition

2шт.

1991096C1

SWITCH

ASSEMBLY - flasher, Includes: Ref. 41 - 45

1шт.

41

NSS

NOT SOLD SEPARAT

HOUSING - switch assembly

1шт.

42

1992519C1

SPECIAL NUT

RING - nut

1шт.

43

1992520C1

LEVER ASSY.

LEVER - flasher

1шт.

44

1992521C1

KNOB

- switch

1шт.

45

1992522C1

LABEL

DECAL - lamp

1шт.

1991181C1

SWITCH

ASSEMBLY - hazard

1шт.

47

NSS

NOT SOLD SEPARAT

SWITCH - hazard, Includes: Ref. 47 - 50

1шт.

48

1992524C1

CAP

- switch housing

1шт.

50

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

- flat, 6.6 x 12.5 x 2 mm

1шт.

52

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

1шт.

53

1991214C1

SWITCH

- headlamp

1шт.

54

1992280C1

BOOT

- switch

1шт.

55

1992281C1

HARNESS

- wiring

1шт.

PICTURE SHOWS 2 ROUND CONNECTORS THAT ARE A PART OF THIS HARNESS. SUPPLIER HAS REMOVED THE SMALLER ROUND CONNECTOR AS THIS WAS FOR AN APPLICATION THAT WAS NOT RELEASED FOR PRODUCTION. THE HARNESS MAY BE USED WITH NO PROBLEM.

1шт.

57

540-702

SCREW,Cross Pan Hd, M6 x 12

- pan head cross recessed, 6 x 12 mm

4шт.

58

1992805C1

PACKING

SEAL - rubber

1шт.

60

1992495C1

WASHER

SEAL - dust

1шт.

61

1273120C1

LAMP

PLUG - glow (Replaces 1992228C1)

1шт.
