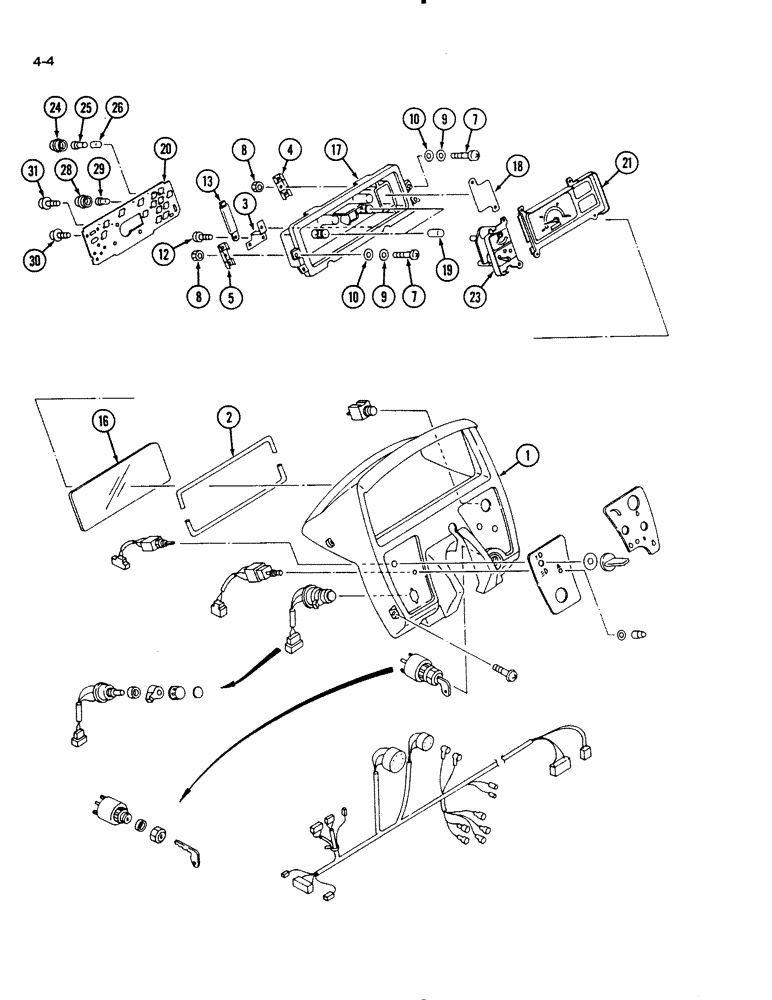

Запчасти Case IH 1140 (4-04) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

1991116C1

PANEL

- enclosure, instrument cluster

1шт.

2

1992273C1

PACKING

- instrument cluster

1шт.

3

1992274C1

BRACKET

- mounting

1шт.

4

1992275C1

BRACKET

- instrument panel, left

1шт.

5

1992276C1

BRACKET

- instrument panel, right

1шт.

7

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

4шт.

8

825-1405

NUT,M5, Cl 8

4шт.

9

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

4шт.

10

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

12

1992277C1

SCREW

8шт.

13

1992278C1

CLAMP

2шт.

1991117C1

METER

GAUGE ASSEMBLY - instrument, Includes: Ref. 16 - 31

1шт.

16

1992505C1

GLASS

- instrument gauge

1шт.

1992506C1

CASE ASSY.

CASE ASSEMBLY - gauge, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

CASE - instrument

1шт.

18

1992508C1

PLATE

- monitor

1шт.

19

1992509C1

LENS

- indicator

2шт.

20

1992510C1

BOARD

- print

1шт.

21

1992511C1

TACHOMETER

- engine speed

1шт.

23

1992512C1

METER

GAUGE - fuel and temperature

1шт.

1991118C1

BULB

ASSEMBLY, Includes: Ref. 24 - 26

4шт.

24

1992513C1

SOCKET

- bulb

4шт.

25

1992514C1

BULB

- lamp

4шт.

26

1992515C1

CAP

- housing

4шт.

1991119C1

BULB

ASSEMBLY, Includes: Ref. 28 - 30

10шт.

28

1992516C1

SOCKET

- bulb

10шт.

29

1992514C1

BULB

- lamp

10шт.

30

840-1414

SCREW,Pan, Cl 4.8

- pan, 4 x 14 mm

4шт.

31

1992517C1

SCREW

2шт.
