Запчасти Case IH 1140 (4-02) - WIRING HARNESSES, FUSES AND FUSE HOLDER (04) - ELECTRICAL SYSTEMS

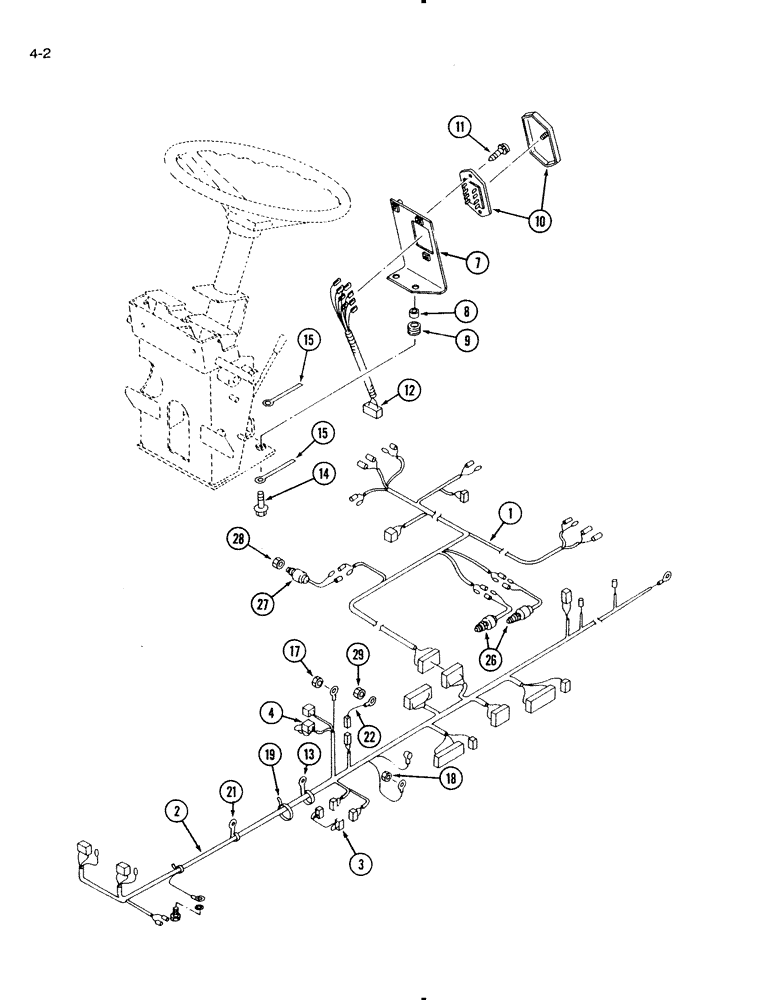

Схема запчастей Case IH 1140 - (4-02) - WIRING HARNESSES, FUSES AND FUSE HOLDER (04) - ELECTRICAL SYSTEMS
21
13
18
11
29
10
15
2
26
22
15
4
14
12
17
3
27
9
7
19
1
8
28

Артикул

Название

Примечание

Количество

1

1992623C1

HARNESS

- wiring

1шт.

1991127C1

HARNESS

ASSEMBLY - electrical, Includes: Ref. 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

HARNESS - electrical

1шт.

3

1992526C1

LINK

WIRE - fusible

1шт.

4

1991129C1

DIODE

RECTIFIER

1шт.

5

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

7

1992625C1

BRACKET

- fuse

1шт.

8

1992530C1

SPACER

2шт.

9

117961

GROMMET,3/8" ID x 27/32" x .062"

- light harness

2шт.

10

1963559C1

BOX

HOLDER ASSEMBLY - fuse

1шт.

223-27

FUSE,20 Amp, Type 3AG

- 20 amperes, 3AG

2шт.

117142

FUSE,10 Amp, Type 3AG

- 10 ampere

2шт.

11

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

2шт.

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

12

1991122C1

HARNESS

- wiring

1шт.

13

1963135C1

CLAMP

- fusible link

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

15

1962981C1

CLAMP

- wire

2шт.

17

824-1405

NUT,M5, Cl 5

1шт.

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

18

825-1408

NUT,M8, Cl 8

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

19

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

7шт.

20

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

4шт.

21

1992270C1

SHAFT

WRAP - tie

2шт.

22

1992532C1

HARNESS

- wiring

1шт.

26

1991138C1

NEUTRAL START SWITCH

SWITCH ASSEMBLY - safety (Without Mid-PTO)

1шт.

26

1991138C1

NEUTRAL START SWITCH

SWITCH ASSEMBLY - safety (With Mid-PTO)

2шт.

27

1991139C1

SENSOR

SWITCH ASSEMBLY - safety

1шт.

28

1992534C1

NUT

1шт.

29

825-1408

NUT,M8, Cl 8

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

Выбрано товаров: 35
