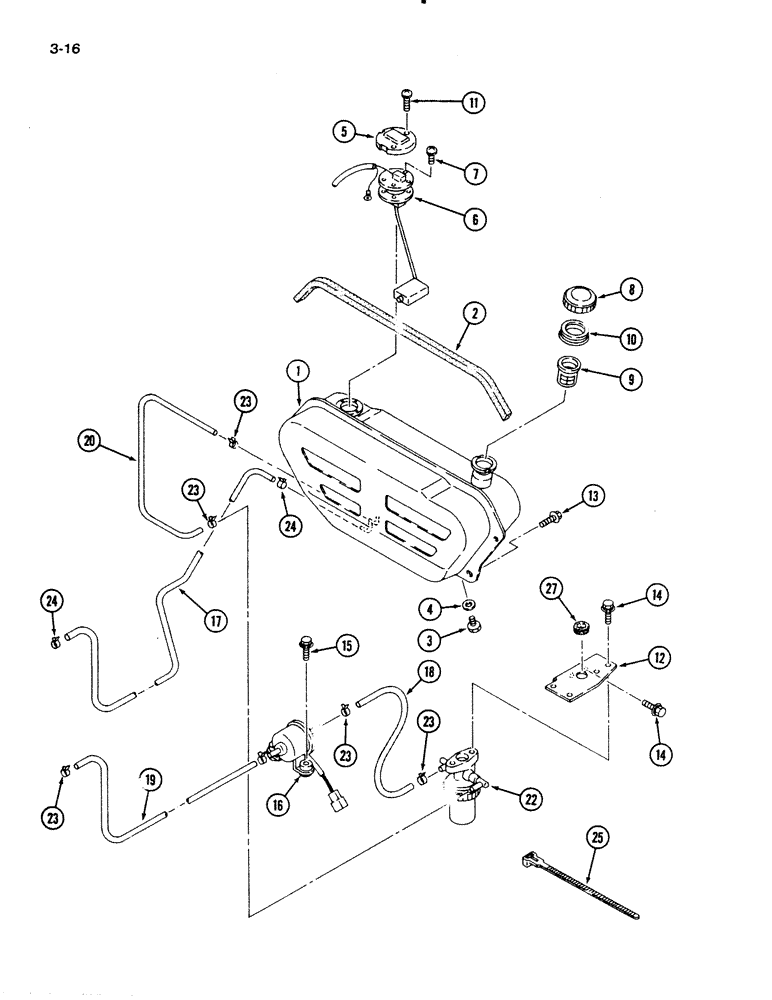

Запчасти Case IH 1140 (3-16) - FUEL TANK AND LINES (03) - FUEL SYSTEM

1991767C1

TANK

ASSEMBLY - fuel, Includes: Ref. 1 - 10

1шт.

1

1991768C1

FUEL TANK

TANK - fuel

1шт.

2

1991769C1

ORNAMENTAL STRIP

TRIM - fuel tank

1шт.

3

1269630C1

BOLT,M8 x 1.25 x 12mm

PLUG - drain

1шт.

4

1992268C1

SEALING WASHER

- drain plug

1шт.

5

1992263C1

COVER

- fuel unit

1шт.

6

1269633C1

GAUGE ASSY.

SENDER ASSEMBLY - fuel level

1шт.

7

30512R1

SCREW,Cross Pan Hd, M4 x 12

- machine, 4 x 12 mm, Grade 4.8

3шт.

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

3шт.

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(Flat, 4.3 x 9 x 0.8 mm) M4

3шт.

8

99395C1

CAP ASSY.

CAP - fuel tank

1шт.

9

1269628C2

STRAINER ELEMENT

STRAINER - fuel

1шт.

10

1269627C1

SEAL

- fuel tank cap

1шт.

11

30496R1

SCREW,Cross Pan Hd, M4 x 10

- pan cross recess, 4 x 10 mm, Grade 4.8

2шт.

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

2шт.

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(Flat, 4.3 x 9 x 0.8 mm) M4

2шт.

12

1992264C1

BRACKET

- fuel filter

1шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

14

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

892-11010

LOCK WASHER,M10

3шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

3шт.

15

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

REF

INSTRUCTION

PUMP ASSEMBLY - fuel (see figure 3-2 or 3-4)

1шт.

17

1991097C1

FUEL HOSE,6.00 mm ID x 400.00 mm

6.00 mm ID x 400.00 mm

1шт.

(1991097C1) : 15.75" long

1шт.

18

1991098C1

FUEL HOSE

1шт.

(1991098C1) : 11.81" long

1шт.

19

1991099C1

FUEL HOSE

1шт.

(1991099C1) : 72.84" long

1шт.

20

1992622C1

HOSE

- fuel

1шт.

(1992622C1) : 84.65" long

1шт.

22

REF

INSTRUCTION

FILTER ASSEMBLY - fuel (see figure 3-6)

1шт.

23

214-1308

HOSE CLAMP,#8, 1/2", Spring

CLAMP, HOSE, #8, 1/2", Spring

6шт.

24

214-1306

CLAMP - hose

2шт.

25

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

5шт.

27

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

- 1-1/8 x 1-3/4 x 7/16 inch

1шт.
