(3-10) - FUEL INJECTION PUMP, 1140 TRACTOR

Запчасти Case IH 1140 (3-10) - FUEL INJECTION PUMP, 1140 TRACTOR (03) - FUEL SYSTEM

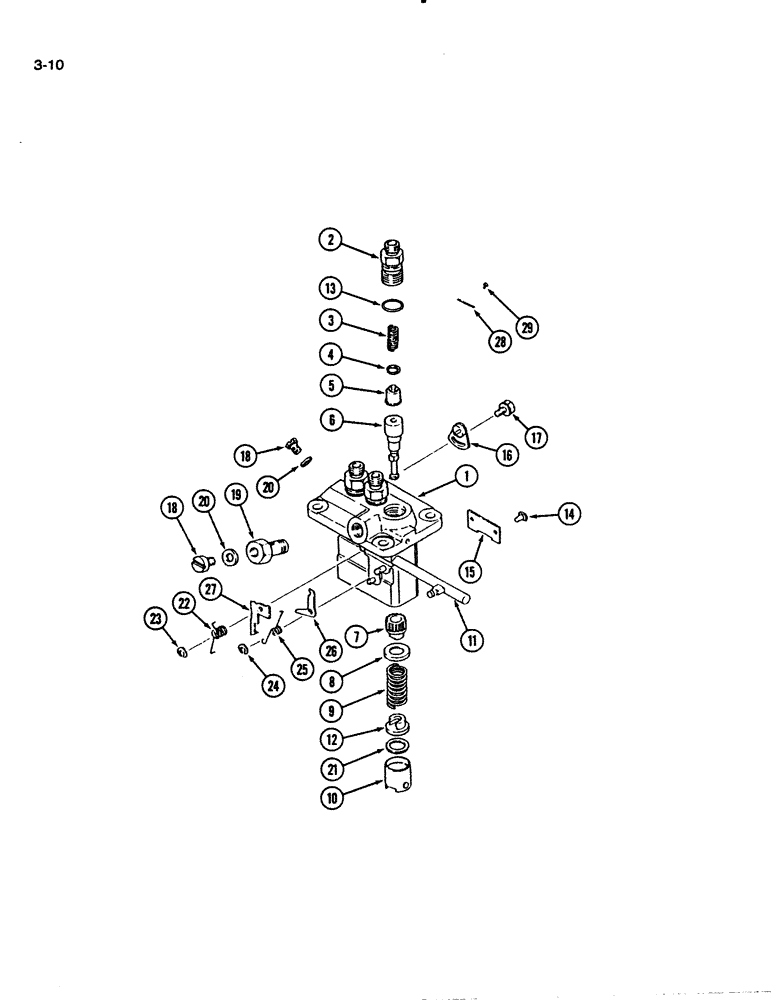

Схема запчастей Case IH 1140 - (3-10) - FUEL INJECTION PUMP, 1140 TRACTOR (03) - FUEL SYSTEM
25
1
5
15
13
24
23
10
21
4
7
11
2
26
6
28
22
20
12
20
18
18
8
27
3
9
16
29
19
17
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1991705C1

PUMP

ASSEMBLY - fuel injection, Includes: Ref. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - injection pump

1шт.

2

1992792C1

HOLDER

- delivery valve

3шт.

3

1992793C1

SPRING

- delivery valve

3шт.

4

1991031C1

GASKET

- delivery valve

3шт.

5

1992794C1

VALVE

ASSEMBLY - delivery

3шт.

6

NSS

NOT SOLD SEPARAT

ELEMENT - pump

3шт.

7

NSS

NOT SOLD SEPARAT

SLEEVE - control

3шт.

8

NSS

NOT SOLD SEPARAT

SEAT - spring, upper

3шт.

9

NSS

NOT SOLD SEPARAT

SPRING - pump plunger

3шт.

10

NSS

NOT SOLD SEPARAT

TAPPET - pump

3шт.

11

NSS

NOT SOLD SEPARAT

RACK ASSEMBLY - control

1шт.

12

NSS

NOT SOLD SEPARAT

SEAT - spring, lower

3шт.

13

1273511C1

O-RING

O-RING - delivery valve

3шт.

14

NSS

NOT SOLD SEPARAT

PIN - tappet guide

3шт.

15

NSS

NOT SOLD SEPARAT

PLATE - pump

1шт.

16

NSS

NOT SOLD SEPARAT

PLATE - adjusting

2шт.

17

NSS

NOT SOLD SEPARAT

BOLT - with washer

2шт.

18

1273516C1

SCREW

- bleed

2шт.

19

1962906C1

HOLLOW SCREW

SCREW - hollow

1шт.

20

1273518C1

WASHER

- breather

2шт.

21

NSS

NOT SOLD SEPARAT

SHIM - plate

1шт.

22

1962907C1

VALVE SPRING

SPRING - return

1шт.

23

1962757C1

CIRCLIP

E-RING - pump

1шт.

24

1273359C1

RING

E-RING - pump

1шт.

25

1991711C1

SPRING

- set

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE - set

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - set

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

29

NSS

NOT SOLD SEPARAT

RIVET - nameplate

2шт.

1275096C1

KIT

shim, not shown

1шт.
