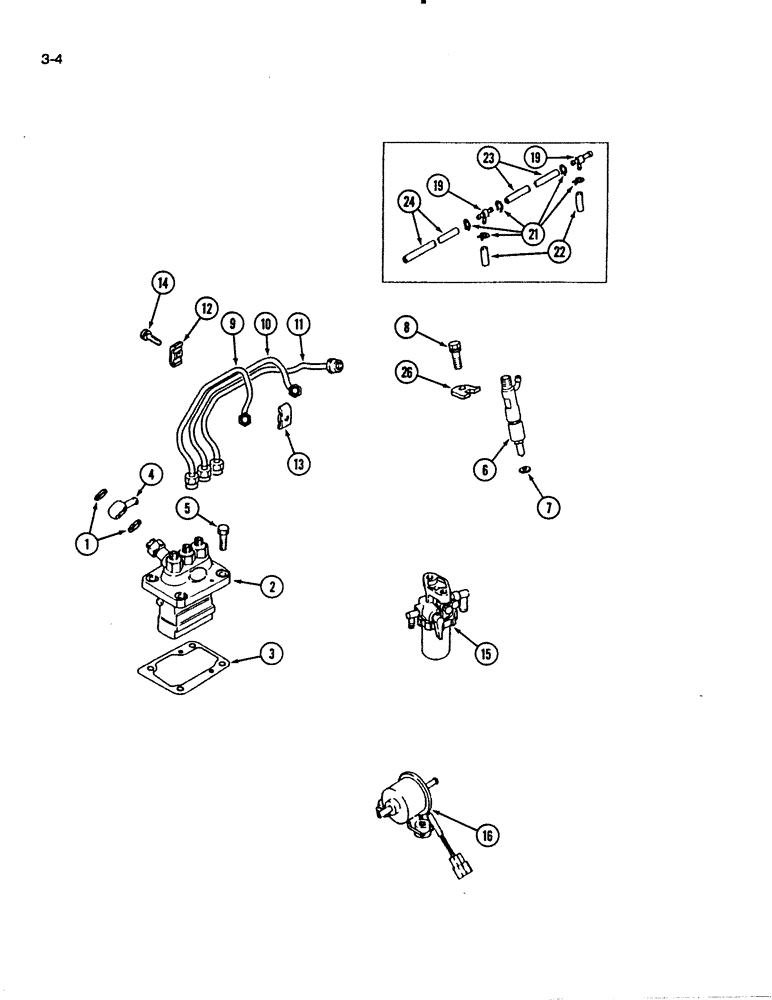

Запчасти Case IH 1140 (3-04) - FUEL INJECTION SYSTEM, 1140 TRACTOR (03) - FUEL SYSTEM

1

1273070C1

SEALING WASHER

SEAL - washer

2шт.

2

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (see page 3-10)

1шт.

3

1275096C1

KIT

SHIM KIT - injection pump adjusting

1шт.

4

1992786C1

COLLAR

TEE - union

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

4шт.

6

1992787C1

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection (Components not serviced)

3шт.

7

1992187C1

GASKET

- nozzle holder

3шт.

8

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

- hex, 8 - 1.25 x 35 mm

6шт.

9

1992788C1

FUEL TUBE

TUBE ASSEMBLY - fuel injection, No. 1 cylinder

1шт.

10

1992789C1

PIPE ASSY.

TUBE ASSEMBLY - fuel injection, No. 2 cylinder

1шт.

11

1992790C1

FUEL TUBE

TUBE ASSEMBLY - fuel injection, No. 3 cylinder

1шт.

12

1273005C1

CLAMP

- injection tubes

2шт.

13

1273004C1

CLAMP

- injection tubes

1шт.

14

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

15

REF

INSTRUCTION

FILTER ASSEMBLY - fuel (see page 3-6)

1шт.

16

1991029C1

PUMP

ASSEMBLY - fuel

1шт.

1992791C1

PIPE ASSY.

TUBE ASSEMBLY - fuel return, Includes: Ref. 19 - 24

1шт.

19

1273011C1

TEE

- fuel, leak off

2шт.

21

214-1304

HOSE CLAMP,#4, 1/4", Spring

CLAMP - hose

8шт.

22

1954142C1

FUEL HOSE,0.19" ID x 25.00' Bulk, SAE 30R1

0.19" ID x 25.00' Bulk, SAE 30R1

2шт.

23

1954142C1

FUEL HOSE,0.19" ID x 25.00' Bulk, SAE 30R1

0.19" ID x 25.00' Bulk, SAE 30R1

1шт.

24

1954142C1

FUEL HOSE,0.19" ID x 25.00' Bulk, SAE 30R1

0.19" ID x 25.00' Bulk, SAE 30R1

1шт.

26

1992188C1

SUPPORT

- nozzle

1шт.
