(2-42) - ENGINE GASKET KIT, 1140 TRACTOR

Запчасти Case IH 1140 (2-42) - ENGINE GASKET KIT, 1140 TRACTOR (02) - ENGINE

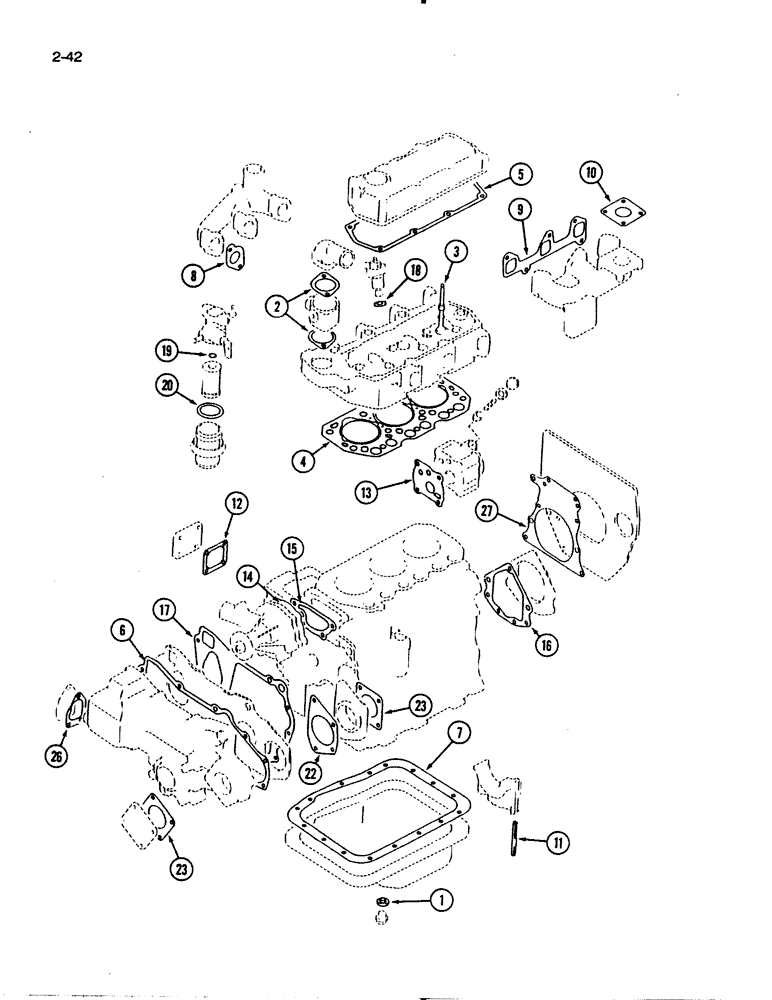

Схема запчастей Case IH 1140 - (2-42) - ENGINE GASKET KIT, 1140 TRACTOR (02) - ENGINE
7
2
12
9
1
16
4
5
3
20
23
23
10
6
19
22
18
13
11
27
15
17
8
14
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1991746C1

GASKET KIT

GASKET KIT - engine, Includes: Ref. 1 - 37

1шт.

1

1271905C1

GASKET

- drain plug

2шт.

2

1273088C1

GASKET

- thermostat housing

2шт.

3

1962787C1

SEAL

SEAL - valve stem

6шт.

4

1992797C1

GASKET

- cylinder head

1шт.

5

1991702C1

GASKET

- cover

1шт.

6

1991699C1

GASKET

- gear cover

1шт.

7

1991698C1

GASKET

- oil pan

1шт.

8

1962793C1

MANIFOLD GASKET

- intake manifold

3шт.

9

1991736C1

MANIFOLD GASKET

- manifold, exhaust

1шт.

10

1991737C1

GASKET

- manifold, exhaust

2шт.

11

1271776C1

SEAL

SEAL - end bearing cap, side

4шт.

12

1991034C1

GASKET

- cover

1шт.

13

1991040C1

GASKET

- oil pump

1шт.

14

NSS

NOT SOLD SEPARAT

GASKET - water pump

1шт.

15

1991043C1

GASKET

- water pump

1шт.

16

1991693C1

GASKET

- oil seal

1шт.

17

1991694C1

GASKET

- front plate

1шт.

18

1992187C1

GASKET

- nozzle holder

3шт.

19

NSS

NOT SOLD SEPARAT

O-RING - element

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - filter

1шт.

22

1991701C1

GASKET

- housing

1шт.

23

1991011C1

GASKET

- oil pump

2шт.

26

1992770C1

GASKET

- governor cover

1шт.

27

1991696C1

GASKET

- rear plate

1шт.
