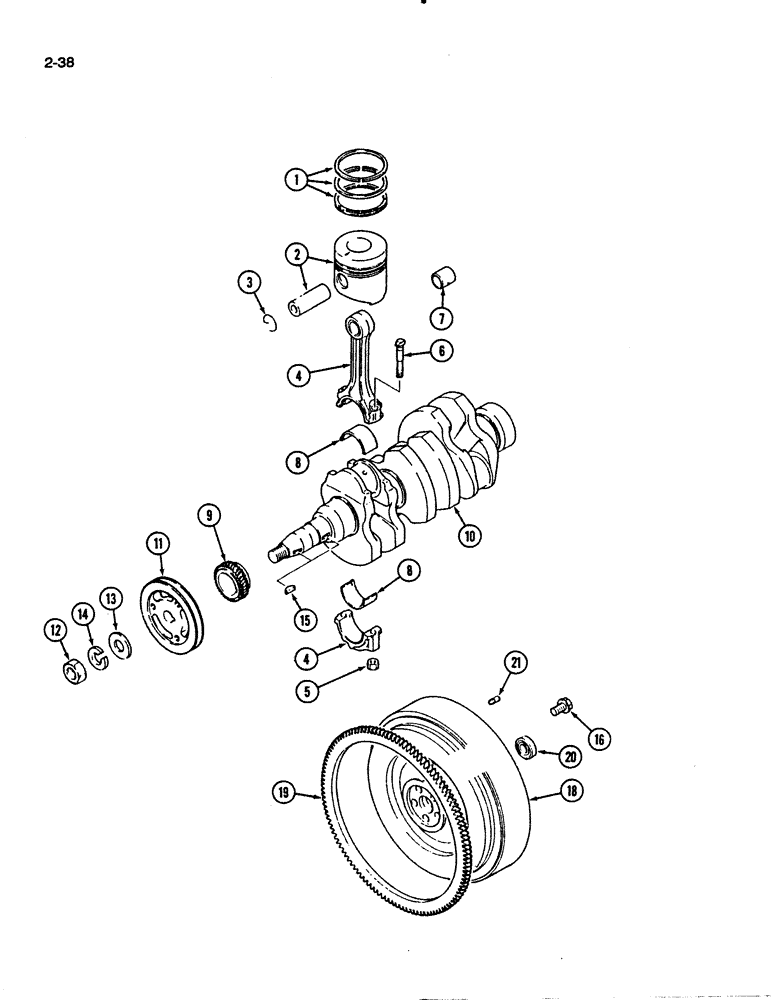

Запчасти Case IH 1140 (2-38) - PISTONS AND SLEEVES, 1140 TRACTOR (02) - ENGINE

1

1992773C1

RING, PISTON

RING KIT - piston, standard

3шт.

1

1992774C1

RING

KIT - piston, 0.25 mm oversize

3шт.

1

1992775C1

RING

KIT - piston, 0.50 mm oversize

3шт.

1

1992776C1

RING

KIT - piston, 0.75 mm oversize

3шт.

2

1992777C1

PITMAN ASSY.

PISTON KIT - engine, standard

3шт.

2

1992778C1

PITMAN ASSY.

PISTON KIT - engine, 0.25 mm oversize

3шт.

2

1992779C1

PITMAN ASSY.

PISTON KIT - engine, 0.50 mm oversize

3шт.

2

1992780C1

PITMAN ASSY.

PISTON KIT - engine, 0.75 mm oversize

3шт.

3

1992781C1

CLIP

- piston pin retainer

6шт.

4

1992782C1

ROD ASSY.

ROD ASSEMBLY - connecting, connecting rod 1140 tractor, Includes: Ref. 5 - 7

3шт.

5

1962865C1

NUT

- connecting rod, connecting rod 1140 tractor

6шт.

6

1962866C1

BOLT (SPREADER),M9-1 x 57.5mm

BOLT - connecting rod 1140 tractor

6шт.

7

1992783C1

BEARING LINER

- connecting rod 1140 tractor

3шт.

8

1346694C1

BEARING SET,48mm ID x 51mm OD x 25mm W

BEARING KIT - rod, standard, connecting rod 1140 tractor

3шт.

8

1346695C1

BEARING SET

BEARING KIT - rod, 0.25 mm undersize, connecting rod 1140 tractor

3шт.

8

1346696C1

BEARING SET

BEARING KIT - rod, 0.50 mm undersize, connecting rod 1140 tractor

3шт.

8

1346697C1

BEARING SET

BEARING KIT - rod, 0.75 mm undersize, connecting rod 1140 tractor

3шт.

9

1271963C1

GEAR WHEEL

GEAR - crankshaft, front, crankshaft 1140 tractor

1шт.

10

1962876C1

CRANKSHAFT

- engine, crankshaft 1140 tractor

1шт.

11

1991018C1

PULLEY

- crankshaft, crankshaft 1140 tractor

1шт.

12

1282748C1

NUT

- lock, 20 mm, crankshaft 1140 tractor

1шт.

13

1962878C1

WASHER

- flat, crankshaft 1140 tractor

1шт.

14

892-11020

LOCK WASHER,M20

WASHER, LOCK, , Crankshaft 1140 tractor M20

1шт.

15

1271974C1

KEY

- Woodruff, 5 x 19 mm, crankshaft 1140 tractor

2шт.

1991703C1

FLYWHEEL

ASSEMBLY - engine (Single clutch), Includes: Ref. 16 and 17

1шт.

1991704C1

FLYWHEEL

ASSEMBLY - engine (Dual clutch), Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

FLYWHEEL - engine, flywheel 1140 tractor

1шт.

17

1271969C1

GEAR WHEEL

GEAR - ring, flywheel 1140 tractor

1шт.

18

1271833C2

FLANGE BOLT,Hex Wshr Hd, M12 x 1.25 x 29mm

BOLT - flywheel, 1140 tractor

5шт.

19

1273355C91

BEARING, BALL,15 mm ID x 32 mm OD x 9 mm

BEARING ASSEMBLY - ball, flywheel 1140 tractor

1шт.

20

1271835C1

AXLE PIN

PIN - dowel, 8 mm (Dual clutch only), flywheel 1140 tractor

3шт.
