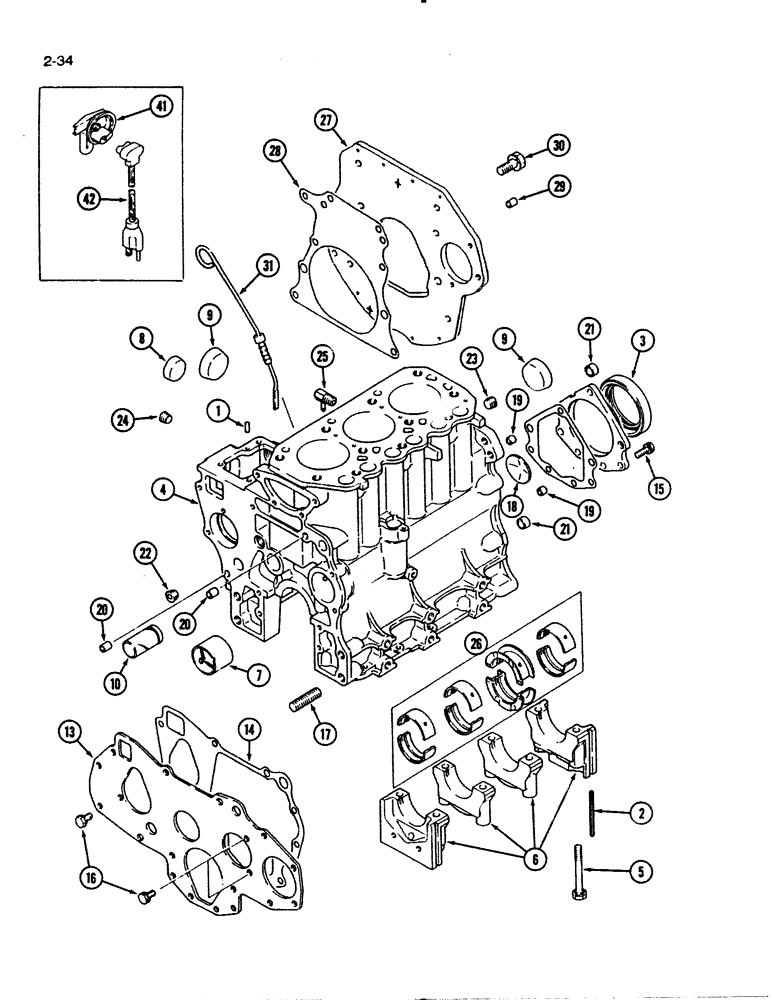

Запчасти Case IH 1140 (2-34) - CYLINDER BLOCK, 1140 TRACTOR (02) - ENGINE

1991741C1

ENGINE ASSEMBLY

- complete

1шт.

Note - 1991741C1 is 3 Cyl. K3M-14R 91.3 Cu In. 1496 cc 12/15/95

1шт.

1

837-4010

DOWEL,M4 x 10

PIN - dowel

2шт.

2

1271776C1

SEAL

SEAL - end bearing cap, side

4шт.

3

1273127C1

OIL SEAL

SEAL - oil

1шт.

4

1962801C1

BLOCK

ASSEMBLY - cylinder, Includes: Ref. 5 - 9

1шт.

5

1271825C1

BOLT,Hex, M10 x 1.25 x 81mm

BOLT - bearing cap

8шт.

6

NSS

NOT SOLD SEPARAT

CAP - bearing (Order 1962801C1)

4шт.

7

1962802C1

CAMSHAFT BEARING

BUSHING - camshaft

1шт.

8

1962803C1

PLUG

- tapered cup, 35 mm

1шт.

9

30734R1

PLUG,M45, Tapered

- tapered cup, 45 mm

2шт.

10

1271781C1

SHAFT HOUSING

SHAFT - idler

1шт.

11

1962804C1

CASE

RETAINER - oil seal

1шт.

12

1962795C1

GASKET

- oil seal (Replaces 1991693C1)

1шт.

13

1962806C1

PLATE ASSY.

PLATE - front

1шт.

14

1991694C1

GASKET

- front plate

1шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm

7шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

7шт.

16

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

17

1273132C1

STUD

- threaded, 14 x 30 mm

2шт.

18

1962808C1

PLUG

- expansion, 45 mm

1шт.

19

1271786C1

SPACER

- bushing, 8 mm OD x 9 mm

2шт.

20

1271787C1

SPACER

- bushing, 8 mm OD x 13 mm

2шт.

21

1271788C1

SPACER

- bushing, 8 mm OD x 9 mm

2шт.

22

444699

PLUG,Hex Soc, 3/8"-18

- pipe, hex socket, 3/8 inch PT

1шт.

23

1962809C1

PLUG

- hex socket, 3/8 inch PT

1шт.

24

444693

PLUG,Hex Soc, 1/4"-18, Brass

- hex socket, 1/4 inch PT

1шт.

25

1271724C1

ELBOW UNION

ELBOW - water drain

1шт.

26

1346687C1

BEARING SET,2.375"

BEARING KIT - upper and lower, standard

1шт.

26

1346686C1

BEARING SET,22.5 mm

BEARING KIT - upper and lower, 0.25 mm oversize

1шт.

26

1346685C1

BEARING SET,2.125"

BEARING KIT - upper and lower, 0.50 mm oversize

1шт.

26

1346684C1

BEARING SET,2"

BEARING KIT - upper and lower, 0.75 mm oversize

1шт.

27

1991695C1

PLATE

- rear

1шт.

28

1991696C1

GASKET

- rear plate

1шт.

29

1271827C1

AXLE PIN

PIN - dowel, 8 mm OD x 10 mm

2шт.

30

1273131C1

BOLT,Hex, M10 x 1.25 x 40mm

BOLT - hex, (with washer), 12 x 28 mm

6шт.

31

1991697C1

GAUGE

DIPSTICK - oil level

1шт.

245565C1

STRIPPER PACKAGE

HEATER ASSEMBLY - cylinder block, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - heater, coolant heater kit

1шт.

42

245564C1

ELECTRICAL WIRE

CORD ASSEMBLY - heater, coolant heater kit

1шт.
