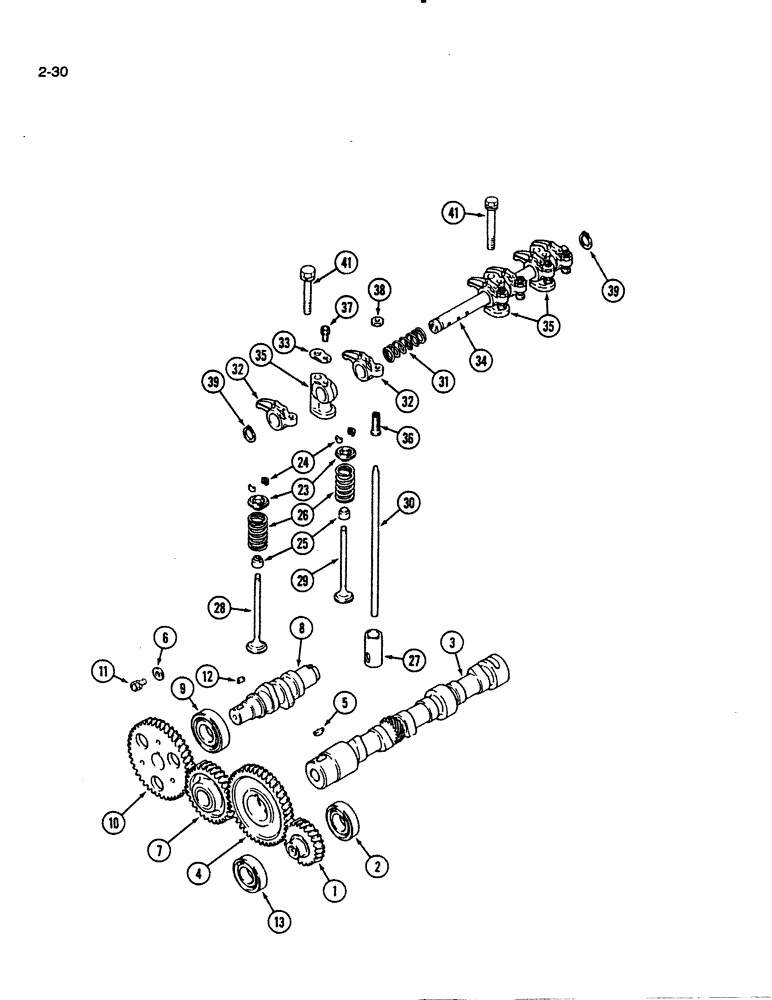

Запчасти Case IH 1140 (2-30) - CAMSHAFTS AND TIMING GEARS, 1140 TRACTOR (02) - ENGINE

1

1991020C1

PUMP

GEAR - oil pump

1шт.

2

1991021C1

BALL BEARING

BEARING ASSEMBLY - ball

1шт.

3

1992784C1

CAMSHAFT

- engine

1шт.

4

1271973C1

GEAR WHEEL

GEAR - camshaft

1шт.

5

1271974C1

KEY

- Woodruff, 5 x 19 mm

1шт.

6

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm

1шт.

7

1962884C1

GEAR WHEEL

GEAR ASSEMBLY - idler

1шт.

8

1992184C1

SHAFT

CAMSHAFT - injection pump

1шт.

9

1273356C91

BEARING, BALL,28 mm ID x 58 mm OD x 16 mm

BEARING ASSEMBLY - ball

1шт.

10

1271977C1

GEAR WHEEL

GEAR - injection pump

1шт.

11

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

12

1271978C1

BAR

KEY - injection pump gear, 5 x 12 mm

1шт.

13

1273146C91

BEARING, BALL,25 mm ID x 52 mm OD x 15 mm

BEARING ASSEMBLY - ball

1шт.

23

1962885C1

RETAINER

- valve spring, valve mechanism 1140 tractor

6шт.

24

1962886C1

LOCK ASSY

KEY - valve spring retainer lock, valve mechanism 1140 tractor

12шт.

25

1962787C1

SEAL

SEAL - valve stem, valve mechanism 1140 tractor

6шт.

26

1962888C1

VALVE SPRING

SPRING - valve, valve mechanism 1140 tractor

6шт.

27

1271983C1

TAPPET

- push rod, valve mechanism 1140 tractor

6шт.

28

1992785C1

VALVE

- intake, valve mechanism 1140 tractor

3шт.

29

1962890C1

LOCK VALVE

VALVE - exhaust, valve mechanism 1140 tractor

3шт.

30

1962891C1

ROD

- push, valve mechanism 1140 tractor

6шт.

31

1271987C1

VALVE SPRING

SPRING - rocker arm shaft, valve mechanism 1140 tractor

2шт.

32

1271988C1

ARM

- rocker, valve mechanism 1140 tractor

6шт.

33

1271989C1

WASHER

- seat, valve mechanism 1140 tractor

2шт.

34

1962892C1

SHAFT HOUSING

SHAFT ASSEMBLY - rocker, valve mechanism 1140 tractor

1шт.

35

1962893C1

STAY

BRACKET - rocker arm shaft, valve mechanism 1140 tractor

3шт.

36

1271992C1

ADJUSTMENT SCREW,M10 x 1.25 x 34mm

SCREW - adjusting, valve mechanism 1140 tractor

6шт.

37

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

Valve mechanism 1140 tractor Hex, M6 x 16, 8.8

2шт.

38

1269793C1

NUT

- hex jam, 10 mm, valve mechanism 1140 tractor

6шт.

39

933081R1

SNAP RING,M19, Ext

RING - retaining, external, 17 mm ID, valve mechanism 1140 tractor

2шт.

41

514-728

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

- hex, 10 mm - 1.25 x 65 mm, valve mechanism 1140 tractor

3шт.

892-11010

LOCK WASHER,M10

Valve mechanism 1140 tractor M10

3шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm, Valve mechanism 1140 tractor

1шт.
