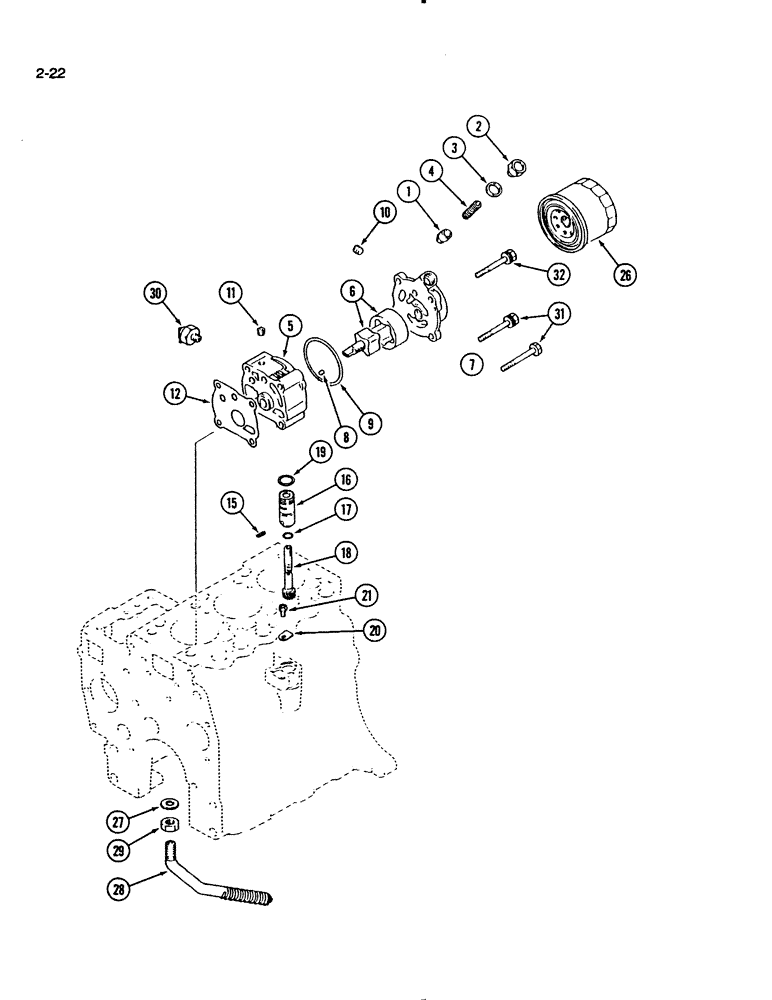

Запчасти Case IH 1140 (2-22) - OIL PUMP AND OIL FILTER, 1140 TRACTOR (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1273056C91
PUMP, ENGINE OIL
PUMP ASSEMBLY - oil, Includes: Ref. 1 - 11
1шт.
1273080C1
KIT
RELIEF VALVE KIT - oil pump, Includes: Ref. 1 - 4
1шт.
1
NSS
NOT SOLD SEPARAT
PLUNGER - relief
1шт.
2
NSS
NOT SOLD SEPARAT
PLUG - relief
1шт.
3
1271905C1
GASKET
- drain plug
1шт.
4
NSS
NOT SOLD SEPARAT
SPRING - relief
1шт.
1991041C1
KIT
ROTOR KIT - oil pump, Includes: Ref. 5 - 9
1шт.
5
NSS
NOT SOLD SEPARAT
BODY - oil pump
1шт.
6
NSS
NOT SOLD SEPARAT
ROTOR ASSEMBLY - oil pump
1шт.
7
NSS
NOT SOLD SEPARAT
COVER - oil pump
1шт.
8
NSS
NOT SOLD SEPARAT
PIN - dowel
2шт.
9
NSS
NOT SOLD SEPARAT
O-ring
1шт.
10
NSS
NOT SOLD SEPARAT
PLUG - tapered, 1/4 inch PT
1шт.
11
NSS
NOT SOLD SEPARAT
PLUG - tapered, 1/8 inch PT
1шт.
12
1991040C1
GASKET
- oil pump
1шт.
1273065C91
DRIVE ASSY.
DRIVE ASSEMBLY - speedometer, Includes: Ref. 15 - 19
1шт.
15
NSS
NOT SOLD SEPARAT
PIN - spring, 3 x 14 mm
1шт.
16
NSS
NOT SOLD SEPARAT
SLEEVE - gear
1шт.
17
1271834C1
O-RING,10.3mm ID x 2.4mm Width
O-RING - 10 mm
1шт.
18
NSS
NOT SOLD SEPARAT
GEAR - driven
1шт.
19
1269871C1
O-RING,17.8mm ID x 2.4mm Width
- 18 mm
1шт.
20
1273068C1
BAR
- speedometer drive, locking
1шт.
21
614-6016
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
11шт.
892-11006
LOCK WASHER,M6
WASHER, LOCK, M6
1шт.
26
1962769C2
FILTER, ELEMENT
FILTER ASSEMBLY - oil
1шт.
27
1273070C1
SEALING WASHER
SEAL - washer
1шт.
28
1962909C1
TUBE
- oil screen, Includes: Ref. 29
1шт.
29
1269797C1
TUBE NUT
NUT - hex jam, 16 mm
1шт.
30
1273073C2
SWITCH
ASSEMBLY - oil pressure
1шт.
31
814-8065
BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8
- hex, 8 mm - 1.25 x 65 mm
2шт.
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
2шт.
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
- flat, 9 x 17 x 1.6 mm
2шт.
32
814-8075
BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8
1шт.
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
1шт.
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
- flat, 9 x 17 x 1.6 mm
1шт.
Выбрано товаров: 35
