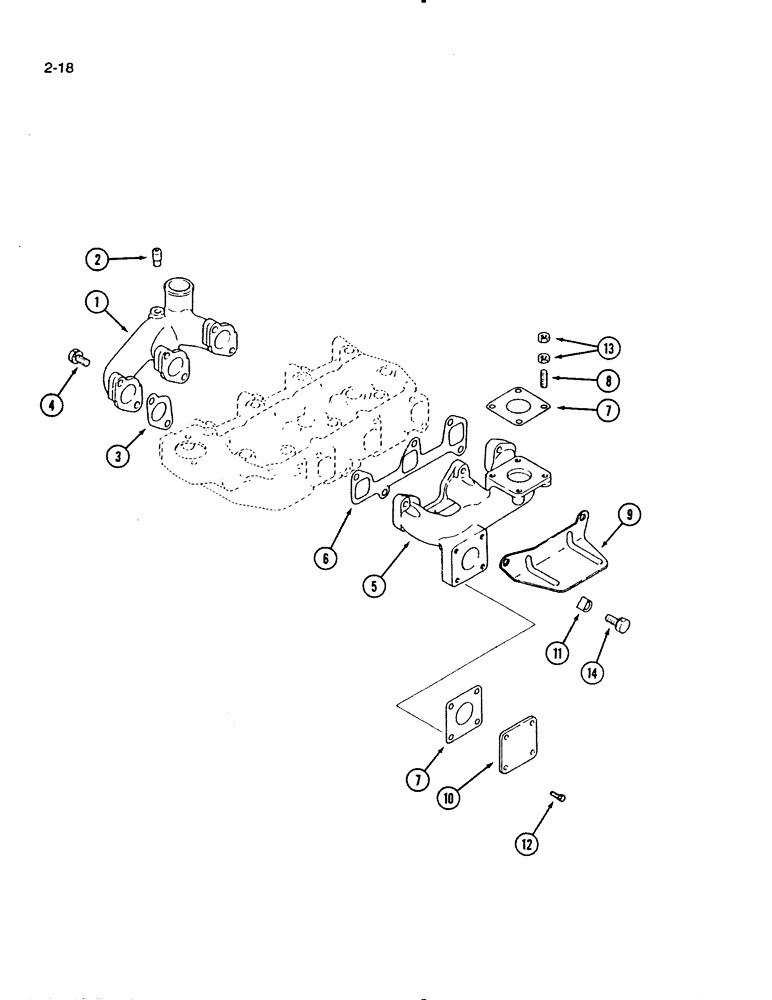

Запчасти Case IH 1140 (2-18) - MANIFOLDS, 1140 TRACTOR (02) - ENGINE

1

1962914C1

MANIFOLD

ASSEMBLY - intake, Includes: Ref. 2

1шт.

2

1271925C1

TUBE,7 mm ID, 10.8 mm OD, 75 mm Length

- breather hose, intake

1шт.

3

1962793C1

MANIFOLD GASKET

- intake manifold

3шт.

4

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.25 x 30 mm, Intake

6шт.

5

1962916C1

MANIFOLD

- exhaust

1шт.

6

1991736C1

MANIFOLD GASKET

- manifold, exhaust

1шт.

7

1991737C1

GASKET

- manifold, exhaust

2шт.

8

1273129C1

STUD

- muffler mounting, 8 x 25 mm, exhaust

4шт.

9

1962918C1

COVER ASSY

COVER - starter, exhaust

1шт.

10

1962919C1

COVER ASSY

COVER - manifold, exhaust

1шт.

11

1962780C1

CLAMP

CLIP - tachometer cable, exhaust

1шт.

12

615-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

Exhaust Hex, M8 x 16, 8.8, Full Thd

4шт.

13

1282956C2

NUT

- hex special, 8 mm, exhaust

8шт.

14

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.25 x 30 mm, Exhaust

5шт.
