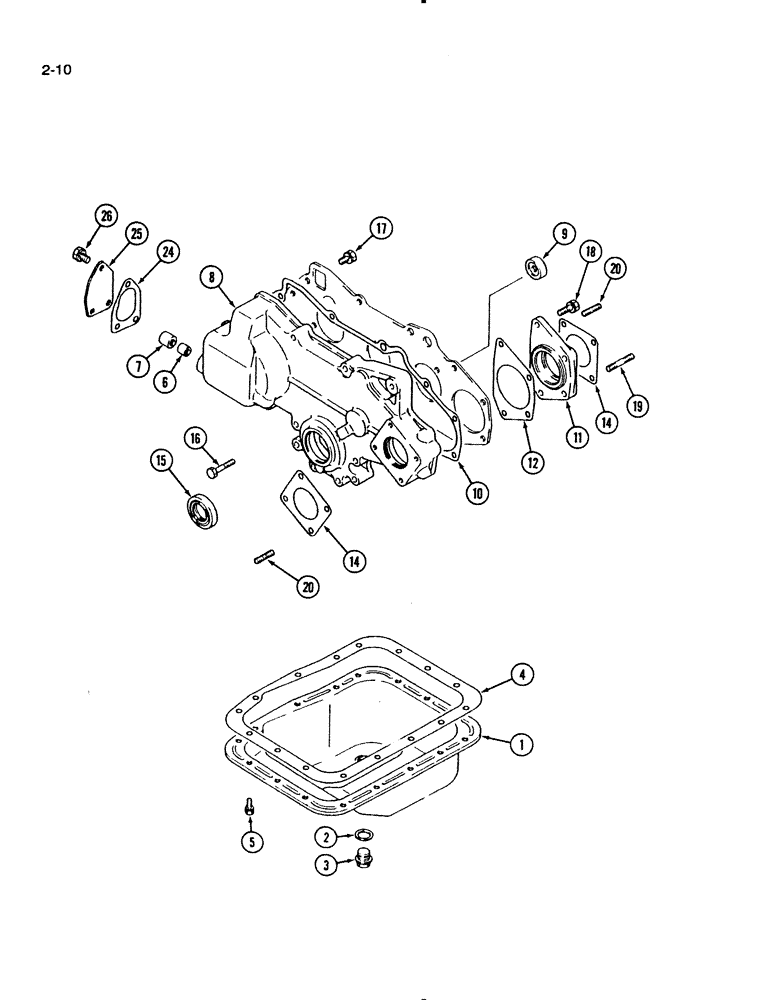

Запчасти Case IH 1140 (2-10) - OIL PAN, 1140 TRACTOR (02) - ENGINE

1

1962823C1

PAN ASSY.

PAN ASSEMBLY - oil, engine, Includes: Ref. 2 and 3

1шт.

2

1271905C1

GASKET

- drain plug

1шт.

3

1271906C1

PLUG

- oil drain

1шт.

4

1991698C1

GASKET

- oil pan

1шт.

5

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

16шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

16шт.

6

1273346C91

NEEDLE BEARING

BEARING ASSEMBLY - needle, front gear cover

1шт.

7

1273347C91

NEEDLE BEARING

BEARING ASSEMBLY - needle, front gear cover

1шт.

8

1963630C1

CASE

COVER ASSEMBLY - gear, front, front gear cover

1шт.

9

1273077C1

PLUG

- thrust, front gear cover

1шт.

10

1991699C1

GASKET

- gear cover, front gear cover

1шт.

11

1991700C1

HOUSING

- pump gear bearing, front gear cover

1шт.

12

1991701C1

GASKET

- housing, front gear cover

1шт.

14

1991011C1

GASKET

- pump, front gear cover

2шт.

15

1273348C1

OIL SEAL

SEAL - oil, front gear cover

1шт.

16

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, 8 mm - 1.25 x 45 mm, front gear cover

10шт.

17

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm, front gear cover

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Front gear cover M8

2шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm, front gear cover

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Front gear cover M8

2шт.

19

1273128C1

STUD

- threaded, 8 x 45 mm, front gear cover

2шт.

20

1346688C1

STUD

- threaded, 8 x 22 mm, front gear cover

6шт.

24

1991012C1

GASKET

- governor cover, front gear cover

1шт.

25

1963631C1

COVER ASSY

COVER - governor, front gear cover

1шт.

26

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm, front gear cover

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Front gear cover M8

3шт.
