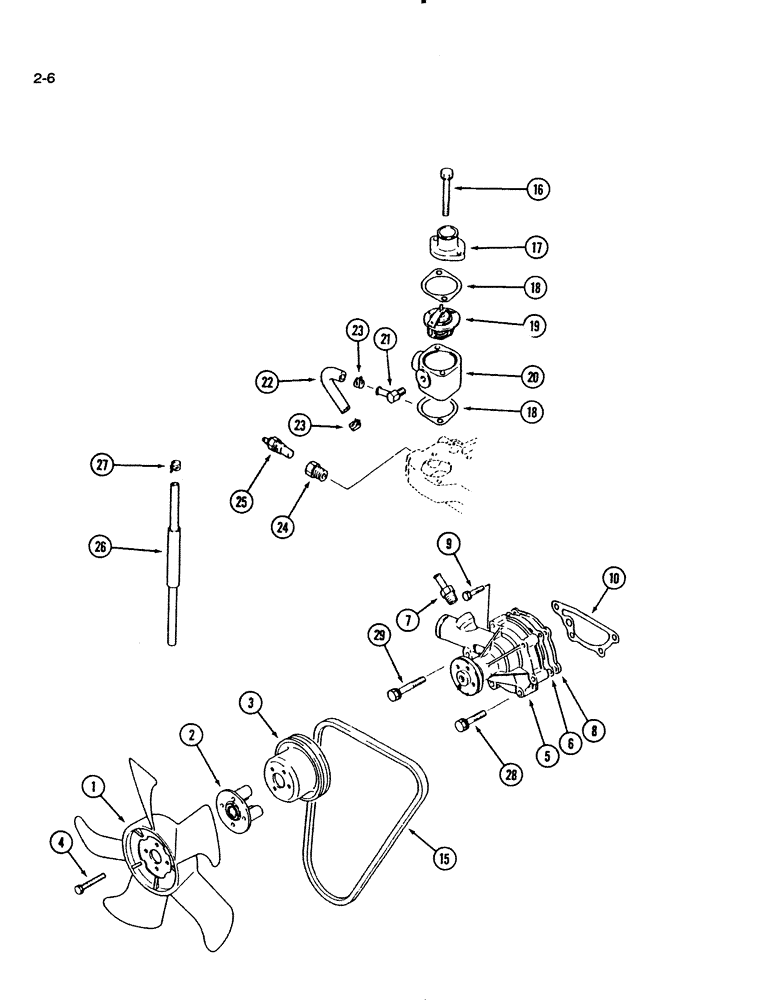

Запчасти Case IH 1140 (2-06) - WATER PUMP AND FAN, 1140 TRACTOR (02) - ENGINE

1

1962910C1

FAN

- cooling

1шт.

2

1991732C1

SPACER

- fan

1шт.

3

1273084C1

PULLEY

- water pump

1шт.

4

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

1962912C1

PUMP

ASSEMBLY - water

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - water pump

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - pump

1шт.

7

1273096C1

FITTING

- hose, nipple, straight, 3/8 PT

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - pump

1шт.

9

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

- hex, 6mm - 1.00 x 30 mm

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

10

1991043C1

GASKET

- water pump

1шт.

15

1992796C1

BELT

V-BELT, Fan

1шт.

16

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 70

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

17

1273092C1

FITTING

HOUSING - thermostat

1шт.

18

1273088C1

GASKET

- thermostat housing

2шт.

19

1992224C1

THERMOSTAT

- coolant

1шт.

20

1273098C1

HOUSING

- thermostat

1шт.

21

1273090C1

ELBOW UNION

FITTING - water outlet

1шт.

22

1992823C1

HOSE ASSY.

HOSE - bypass, 8 x 150 mm

1шт.

23

214-1308

HOSE CLAMP,#8, 1/2", Spring

CLAMP, HOSE, #8, 1/2", Spring

2шт.

24

1991046C1

JOINT

FITTING - thermostat

1шт.

25

1991045C1

UNIT

SENDER - engine coolant temperature

1шт.

26

1992225C1

HOSE ASSY.

HOSE ASSEMBLY - water drain, 6 x 240 mm

1шт.

27

214-1308

HOSE CLAMP,#8, 1/2", Spring

CLAMP, HOSE, #8, 1/2", Spring

1шт.

28

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

- hex, 8 mm - 1.25 x 45 mm

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

3шт.

29

614-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8, Full Thd

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.
