Запчасти Case IH 1140 (2-02) - RADIATOR AND ATTACHING PARTS (02) - ENGINE

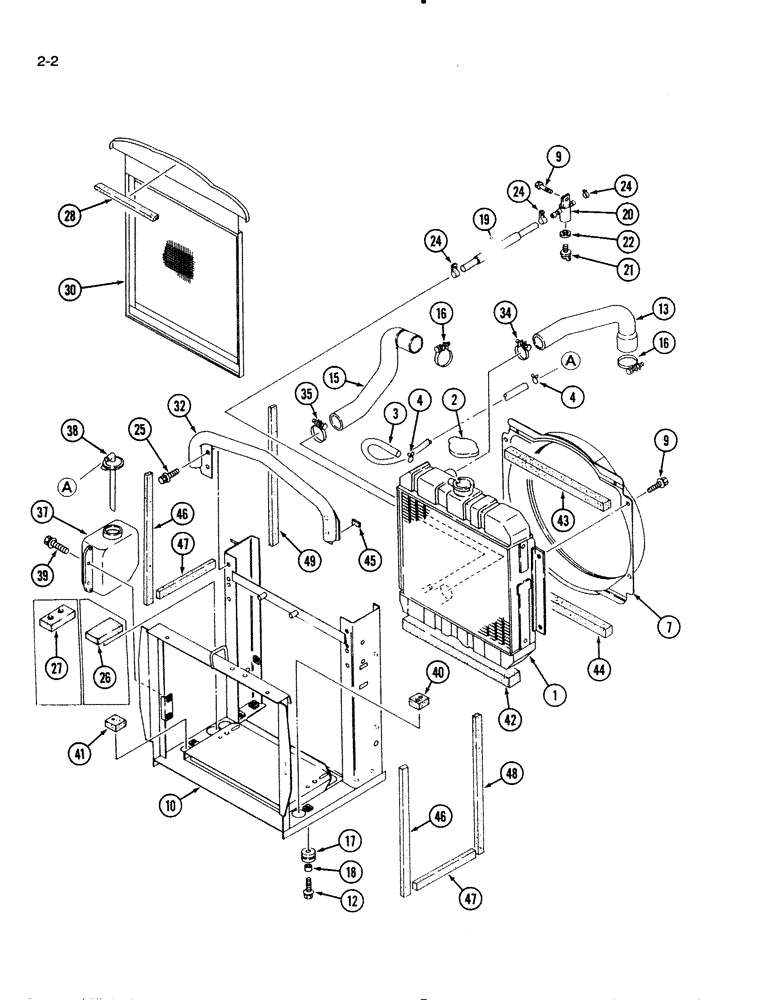

Схема запчастей Case IH 1140 - (2-02) - RADIATOR AND ATTACHING PARTS (02) - ENGINE
24
21
41
a
16
39
48
46
19
49
37
47
a
15
13
45
24
28
32
1
17
40
47
3
12
4
18
24
10
2
46
9
7
35
38
34
25
20
26
44
42
9
22
27
30
43
4
16

Артикул

Название

Примечание

Количество

1

1991753C1

BODY

RADIATOR - engine (1130 Tractor)

1шт.

1

1991755C1

BODY

RADIATOR - engine (1140 Tractor)

1шт.

2

1961825C1

RADIATOR CAP

CAP - radiator

1шт.

3

1992621C1

HOSE

- radiator overflow

1шт.

4

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, #4, 0.25/0.62 Type M Worm

2шт.

7

1992748C1

SHROUD

- fan (1130 Tractor)

1шт.

7

1961826C1

SHROUD

- fan (1140 Tractor)

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

5шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

5шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

5шт.

10

1991756C1

BRACKET

- radiator

1шт.

12

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm

6шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

6шт.

13

1991758C1

RADIATOR HOSE

Upper

1шт.

15

1992427C1

HOSE

RADIATOR HOSE, Lower

1шт.

16

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

2шт.

17

1991579C1

GROMMET

- rubber

6шт.

18

1269821C10

COLLAR - stop

6шт.

19

1992500C1

PIPE

- water

1шт.

20

1269622C1

TEE

- radiator drain

1шт.

21

1275078C1

LOCK VALVE

VALVE - drain cock

1шт.

22

1275077C1

GASKET

- drain cock

1шт.

24

214-1506

HOSE CLAMP,11.18mm - 19.81mm

CLAMP - hose

3шт.

25

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

26

1992097C1

CUSHION

- radiator, lower right (Mechanical drive)

1шт.

27

1992098C1

CUSHION

- radiator, lower right (Hydrostatic drive)

1шт.

28

1992501C1

CUSHION

- shroud

1шт.

30

1991762C1

GRILLE

SCREEN - radiator (1130 Tractor)

1шт.

30

1991763C1

GRILLE

SCREEN - radiator (1140 Tractor)

1шт.

32

1992267C1

FRAME

BRACKET - front frame

1шт.

34

214-1524

HOSE CLAMP,#24, 1.06" - 2", Type F Worm, W/ Liner

CLAMP - hose

1шт.

35

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

1шт.

1961821C1

TANK

ASSEMBLY - overflow, Includes: Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

TANK - overflow, radiator

1шт.

38

1963349C1

CAP

- tank, overflow

1шт.

39

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

40

1992502C1

CUSHION

- radiator, lower left

1шт.

41

1992503C1

CUSHION

- radiator, lower right

1шт.

42

1991095C1

CUSHION

- radiator, lower front

1шт.

43

1992403C1

SEAL

- radiator, upper (1130 Tractor only))

1шт.

44

1992681C1

SEAL

SEAL - radiator, lower (1130 Tractor only)

1шт.

45

1992682C1

SEAL

SEAL - radiator bracket

1шт.

46

1992816C1

CUSHION

- radiator

2шт.

47

1992817C1

CUSHION

- radiator

2шт.

48

1992818C1

CUSHION

- radiator

1шт.

49

1992765C1

CUSHION

- radiator

1шт.

Выбрано товаров: 51
