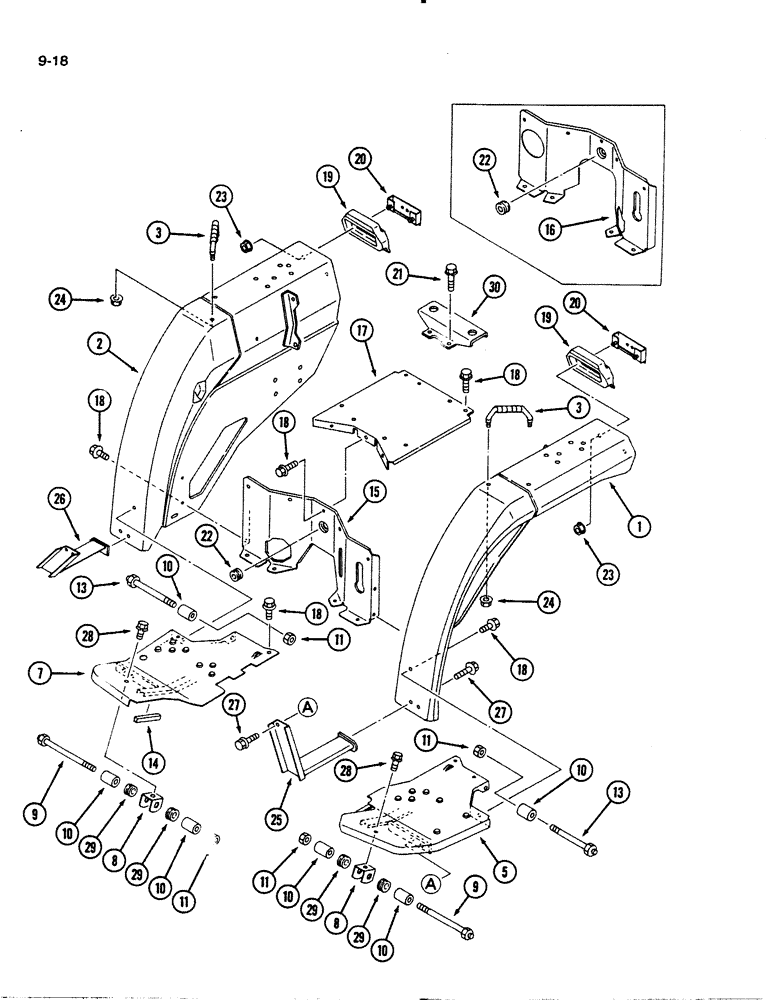

Запчасти Case IH 1130 (9-18) - FENDERS, STEPS AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

1992131C1

FENDER

- rear, left

1шт.

2

1992132C1

FENDER

- rear, right

1шт.

3

1991670C1

RAIL

HANDLE - fender

2шт.

5

1992133C1

STEP

- front, left

1шт.

7

1992134C1

STEP

- front, right

1шт.

8

1991673C1

BRACKET

- step

2шт.

9

1992135C1

BOLT

ROD - step support

2шт.

10

1991675C1

RUBBER

BUSHING - rubber

6шт.

11

525-5109

NUT,M16 x 1.5, Cl 8

- hex, 16 mm

4шт.

13

1991674C1

BOLT

ROD - step support

1шт.

14

1992673C1

RUBBER

STRIP - safety, rubber

1шт.

15

1992137C1

COVER

- front (Mechanical drive)

1шт.

16

1992138C1

COVER

- front (Hydrostatic drive)

1шт.

17

1992139C1

COVER

- upper

1шт.

18

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

17шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

17шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

17шт.

19

1992140C1

CASE

COVER - fender, rear

2шт.

20

1992141C1

BRACKET

- fender, rear

2шт.

21

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.25 x 30 mm

4шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

22

1992198C1

GROMMET

- rubber

1шт.

23

825-1406

NUT,M6, Cl 8

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

24

825-1408

NUT,M8, Cl 8

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

25

1991344C1

STEP

BRACKET - step, left

1шт.

26

1992114C1

STEP

BRACKET - step, right

1шт.

27

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

8шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

8шт.

28

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 12 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

29

1992612C1

GROMMET

4шт.

30

1992145C1

BRACKET

- cover

1шт.
