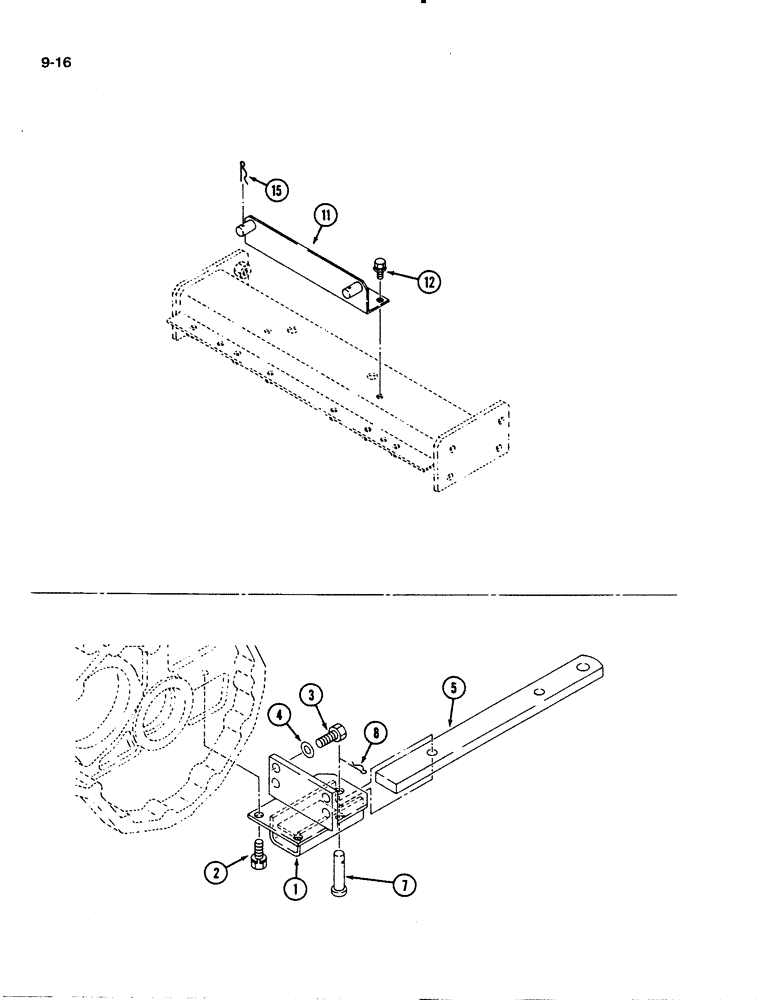

Запчасти Case IH 1130 (9-16) - DRAWBAR (09) - CHASSIS/ATTACHMENTS

1

1991645C1

BRACKET

- drawbar

1шт.

2

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.75 x 30 mm

2шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

3

614-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

- hex, 14 x 35 mm

4шт.

4

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- flat, 15.5 x 28 x 3 mm

4шт.

5

1991647C1

DRAWBAR

- towing

1шт.

7

1992856C1

CLEVIS PIN

PIN - clevis

1шт.

8

1269737C1

AXLE PIN

PIN - snap

1шт.

11

1992115C1

BRACKET

- drawbar (MFD Tractor)

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm (MFD Tractor)

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

15

1269737C1

AXLE PIN

PIN - snap (MFD Tractor)

2шт.
