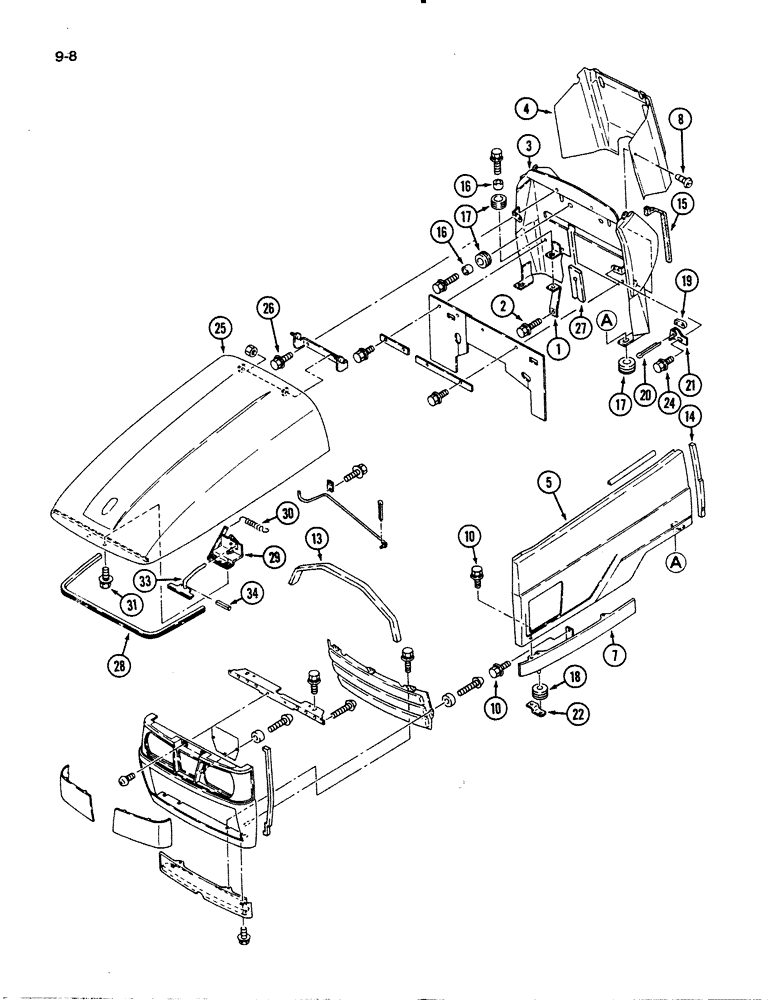

Запчасти Case IH 1130 (9-08) - HOOD, PANELS AND GRILLE (09) - CHASSIS/ATTACHMENTS

1

1992084C1

BRACKET

- hood support

1шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

3

1991570C1

BODY

PANEL ASSEMBLY - instrument shroud

1шт.

4

1991571C1

COVER

- rear panel

1шт.

SEE PRODUCT UPGRADE PROGRAM,SAFETY BULLETIN EBT MP 011 96.NEW PART IS 249811A1.1130 PIN RANGE CCJ0081508 THRU CCJ0082752(HYDROSTATIC UNITS ONLY).THE 1140 PIN RANGE CCJ0094009 THRU CCJ0094999(HYDROSTATIC UNITS ONLY).

1шт.

5

1992085C1

COVER

- side, left (Shown)

1шт.

5

1992086C1

COVER

- side, right

1шт.

7

1992087C1

COVER

- side, left (Shown)

1шт.

7

1992088C1

COVER

- side, right

1шт.

8

540-702

SCREW,Cross Pan Hd, M6 x 12

- pan head cross recessed, 6 x 12 mm

2шт.

10

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

6шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

6шт.

13

1992683C1

CUSHION

- hood

1шт.

14

1992689C1

CUSHION

- side panel, left

1шт.

15

1992855C1

SEAL

- instrument shroud

2шт.

16

1269821C1

SPACER

4шт.

17

1991579C1

GROMMET

- rubber

6шт.

18

1961819C1

GROMMET

- rubber

2шт.

19

1991574C1

HOOK

4шт.

20

732-3232

COTTER PIN,M3.2 x 32

PIN - cotter, 3.2 x 32 mm

4шт.

21

1991580C1

BRACKET

- mounting, left (Shown)

2шт.

21

1991581C1

BRACKET

- mounting, right

2шт.

22

1991596C1

BRACKET

- mounting

2шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

25

1992091C1

HOOD

- engine

1шт.

26

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

27

1992686C1

CUSHION

- instrument shroud

1шт.

28

1991583C1

MOLDING

CUSHION - hood, front

1шт.

29

1992609C1

BRACKET

- lever

1шт.

30

1992400C1

SPRING

- lever

1шт.

31

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

33

1991586C1

LEVER

ASSEMBLY - hood release

1шт.

34

838-1330

LOCK PIN,M3 x 30, Slotted

PIN - spring

1шт.
