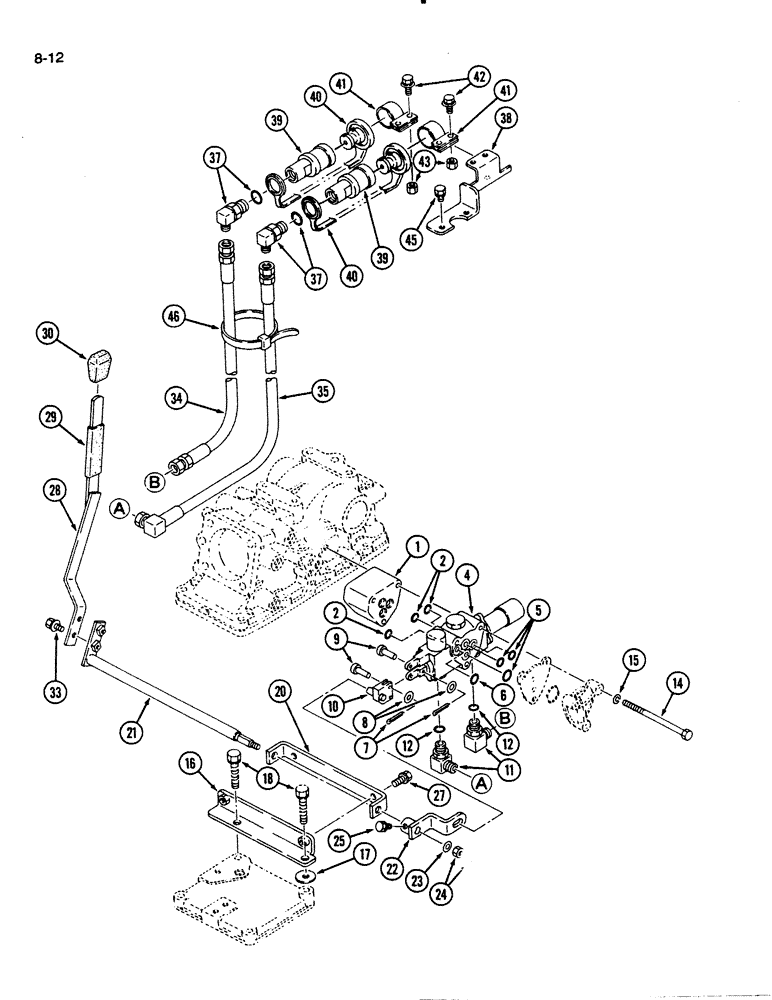

Запчасти Case IH 1130 (8-12) - AUXILIARY VALVE KIT (08) - HYDRAULICS

1992717C1

KIT

- auxiliary valve, Includes: Ref. 1 - 46

1шт.

1

1992664C1

SPACER

- valve

1шт.

2

1273523C1

O-RING

O-RING - 12 mm ID

3шт.

1992594C1

VALVE

ASSEMBLY - auxiliary, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

5

1282749C1

O-RING

O-RING - 12 mm ID

3шт.

6

1288101C1

O-RING

O-RING - 16 mm ID

1шт.

7

732-2516

COTTER PIN,M2.5 x 16

PIN - cotter, 2.5 x 16 mm

3шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

3шт.

9

427-3071

CLEVIS PIN,3/16" x .719"

PIN - clevis

3шт.

10

1992665C1

ARM

1шт.

11

1992381C1

ADAPTER

ELBOW - 90 degree, Includes: Ref. 12

2шт.

12

1273793C1

O-RING

O-RING - 14 mm ID

1шт.

14

814-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

- hex, 8 x 120 mm

3шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

16

1992666C1

BRACKET

- shaft

1шт.

17

896-16010

WASHER,11mm ID x 24mm OD x 3mm Thk

- flat, 11 x 24 x 3 mm, hardened

1шт.

18

514-722

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

- hex, 10 x 55 mm

2шт.

892-11010

LOCK WASHER,M10

2шт.

1992719C1

SHAFT ASSY.

SHAFT ASSEMBLY - control, Includes: Ref. 20 - 25

1шт.

20

1992667C1

BRACKET

- control

1шт.

21

1992668C1

SHAFT

- control

1шт.

22

1992669C1

ARM

- control

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

24

825-1408

NUT,M8, Cl 8

2шт.

25

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 12 mm

1шт.

27

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

1992670C1

LEVER ASSY.

LEVER ASSEMBLY - control, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

LEVER - control

1шт.

29

1992593C1

TUBE

- control lever

1шт.

30

1273379C1

KNOB

- lever

1шт.

33

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

34

1992671C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic

1шт.

35

1992672C1

HOSE ASSY.

HOSE ASSEMBLY - hydraulic

1шт.

1992703C1

COUPLING

ASSEMBLY - hose, Includes: Ref. 37 - 43

1шт.

37

1992605C1

FITTING

- hose

2шт.

38

1992606C1

BRACKET

- hose

1шт.

39

1282338C91

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - self sealing female, 7/8-14 thread

2шт.

40

1954133C1

PLUG

PLUG ASSEMBLY - coupling

2шт.

41

1962931C1

CLAMP

- coupler

2шт.

42

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

43

825-1408

NUT,M8, Cl 8

4шт.

45

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 12 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

46

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

1шт.
