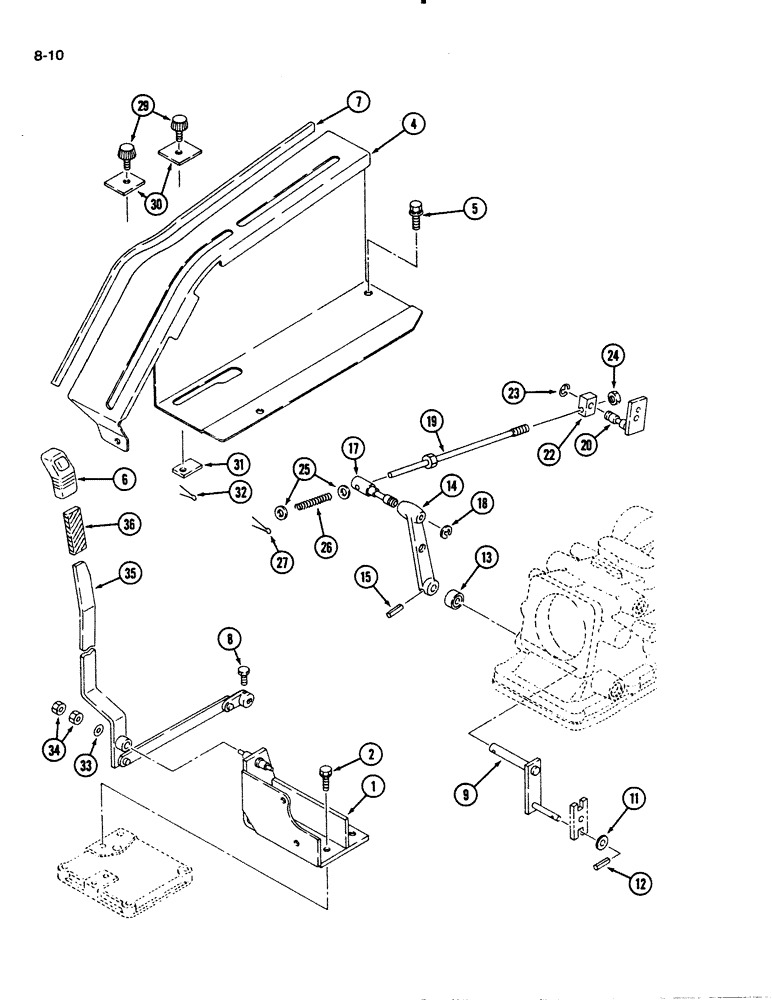

Запчасти Case IH 1130 (8-10) - POSITION CONTROL LEVERS (08) - HYDRAULICS

1

1992033C1

BRACKET

- lever

1шт.

2

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

892-11010

LOCK WASHER,M10

1шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

4

1992035C1

LEVER

GUIDE - lever

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

6

1991505C1

GRIP

- lever

1шт.

7

1992459C1

CUSHION

1шт.

8

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

9

1273372C1

LEVER

- feed back

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

12

738-1320

LOCK PIN,M3 x 20, Slotted

PIN - spring

1шт.

13

1273178C1

OIL SEAL

SEAL - oil

1шт.

14

1273373C1

ARM

- feed back

1шт.

15

838-1532

LOCK PIN,M5 x 32, Slotted

PIN, LOCK, , Spring M5 x 32, Slotted

1шт.

17

1992036C1

PIN

- joint

1шт.

18

1271817C1

CIRCLIP,M9

RING - retaining

1шт.

19

1273376C1

ROD

- control linkage

1шт.

20

1992037C1

PLATE

- linkage

1шт.

22

1273377C1

BAR

BLOCK - pivot

1шт.

23

1962690C1

CIRCLIP,M7

RING - retaining

1шт.

24

825-1408

NUT,M8, Cl 8

1шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

26

1273375C1

VALVE SPRING

SPRING - linkage

1шт.

27

732-2516

COTTER PIN,M2.5 x 16

PIN - cotter, 2.5 x 16 mm

1шт.

29

1273361C1

KNOB

- stop

2шт.

30

1963273C1

STOP

- shift

2шт.

31

1992038C1

PLATE

- lock

2шт.

32

732-2016

COTTER PIN,M2 x 16

PIN - cotter, 2 x 16 mm

2шт.

33

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm

1шт.

34

825-1408

NUT,M8, Cl 8

2шт.

1992034C1

LEVER

ASSEMBLY - position control

1шт.

35

NSS

NOT SOLD SEPARAT

LEVER - position control

1шт.

36

1992593C1

TUBE

- position control lever

1шт.
