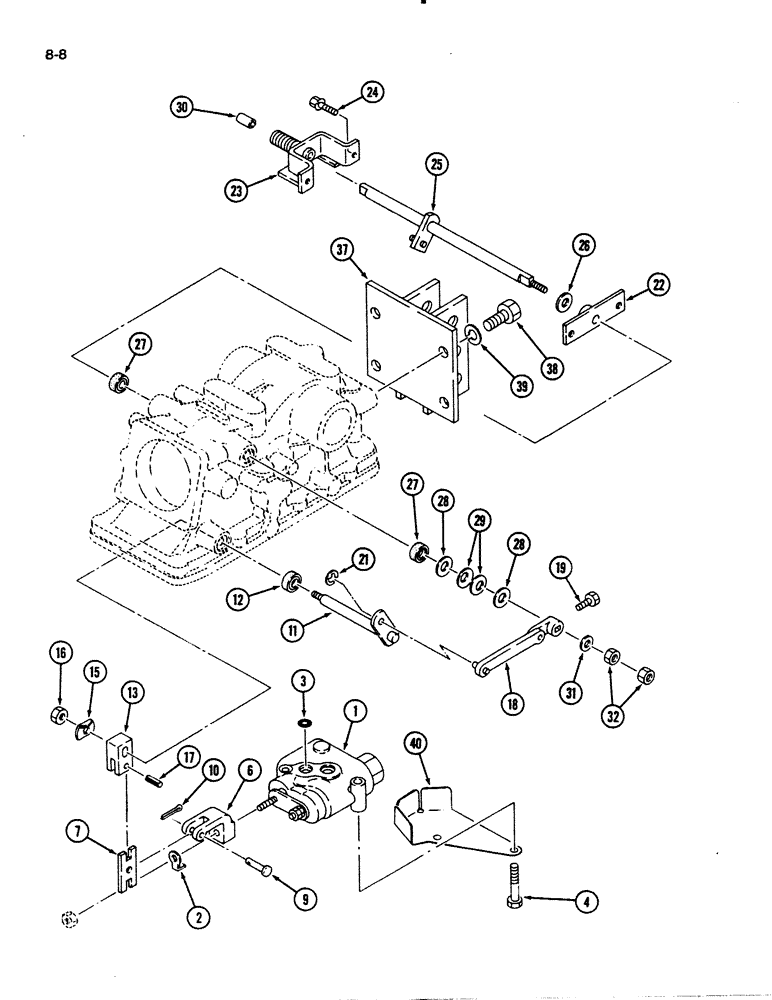

Запчасти Case IH 1130 (8-08) - HITCH LIFT CONTROLS (08) - HYDRAULICS

1

1992031C1

VALVE

ASSEMBLY - control

1шт.

2

1282767C1

LOCK WASHER

- lock, tab

1шт.

3

1273523C1

O-RING

O-RING - 12 mm ID

2шт.

4

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm (8.8)

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

6

1273441C1

SUPPORT ASSY.

YOKE - valve linkage

1шт.

7

1282978C1

BAR

PLATE - valve linkage

1шт.

9

1992843C1

CLEVIS PIN

PIN - clevis

1шт.

10

732-2516

COTTER PIN,M2.5 x 16

PIN - cotter, 2.5 x 16 mm

1шт.

11

1273369C1

SHAFT HOUSING

SHAFT - lever

1шт.

12

1273178C1

OIL SEAL

SEAL - oil

1шт.

13

1273370C1

YOKE

- valve

1шт.

15

1273340C1

SUPPORT ASSY.

PLATE - lock

1шт.

16

825-1408

NUT,M8, Cl 8

1шт.

17

838-1816

LOCK PIN,M8 x 16, Slotted

PIN - spring

1шт.

18

1992661C1

LEVER ASSY.

LEVER - control

1шт.

19

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

21

1962690C1

CIRCLIP,M7

RING - retaining

1шт.

22

1992662C1

PLATE

1шт.

23

1992663C1

BRACKET

- shaft

1шт.

24

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 x 20 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

25

1992032C1

SHAFT

- control

1шт.

26

1992482C1

LINING

WASHER - flat

1шт.

27

1273178C1

OIL SEAL

SEAL - oil

2шт.

28

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

2шт.

29

1269855C1

WASHER

- spring

2шт.

30

1962691C1

BUSHING

- control lever

1шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

32

825-1408

NUT,M8, Cl 8

2шт.

37

1273309C1

BRACKET

- upper link mounting (See Note)

1шт.

38

614-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

(See Note) Hex, M14 x 30, 8.8, Full Thd

4шт.

39

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm (See Note)

4шт.

40

1992751C1

PLATE

- valve guide

1шт.
