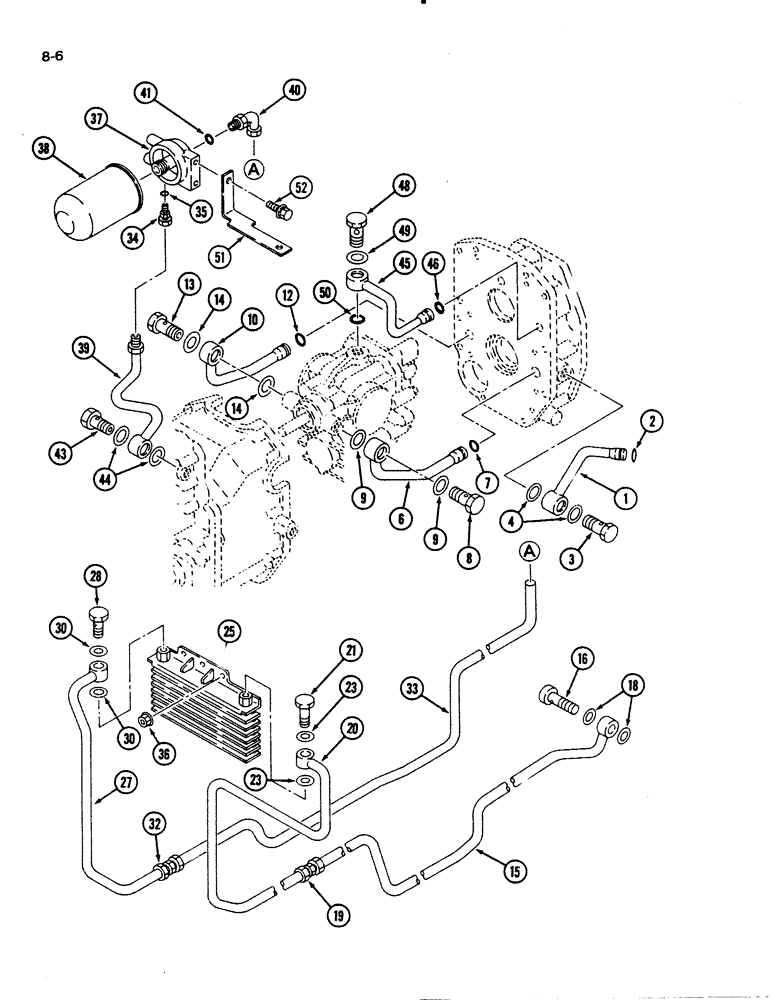

Запчасти Case IH 1130 (8-06) - HYDROSTATIC MOTOR SYSTEM (08) - HYDRAULICS

1

1992070C1

HYD TUBE

TUBE - hydraulic

1шт.

2

1992304C1

O-RING,0.614" ID x 0.754" OD x 0.07"

1шт.

3

1992071C1

BOLT

- eye

1шт.

4

1992072C1

SEALING WASHER

WASHER - seal

2шт.

6

1992073C1

HYD TUBE

TUBE - hydraulic

1шт.

7

1992304C1

O-RING,0.614" ID x 0.754" OD x 0.07"

1шт.

8

1992071C1

BOLT

- eye

1шт.

9

1992072C1

SEALING WASHER

WASHER - seal

2шт.

10

1992262C1

HYD TUBE

TUBE - hydraulic

1шт.

12

1273524C1

O-RING

O-RING - 14 mm ID

1шт.

13

1992071C1

BOLT

- eye

1шт.

14

1992072C1

SEALING WASHER

WASHER - seal

2шт.

15

1992074C1

HYD TUBE

TUBE - hydraulic

1шт.

16

1991560C1

BOLT

1шт.

18

1963085C1

SEALING WASHER

- seal

2шт.

19

1992075C1

JOINT

UNION

1шт.

20

1992076C1

HYD TUBE

TUBE - hydraulic

1шт.

21

1991560C1

BOLT

1шт.

23

1991564C1

SEALING WASHER

- seal

2шт.

25

1992077C1

COOLER, OIL

COOLER - oil

1шт.

27

1992078C1

HYD TUBE

TUBE ASSEMBLY - hydraulic

1шт.

28

1991560C1

BOLT

1шт.

30

1991564C1

SEALING WASHER

- seal

2шт.

32

1992075C1

JOINT

UNION

1шт.

33

1992079C1

HYD TUBE

TUBE ASSEMBLY - hydraulic

1шт.

34

1992080C1

NIPPLE, LUBE

CONNECTOR - straight

1шт.

35

1992239C1

O-RING

1шт.

36

825-1408

NUT,M8, Cl 8

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

37

1992394C1

HEAD

- oil filter

1шт.

38

1992395C1

FILTER, ENGINE OIL

FILTER - oil

1шт.

39

1992081C1

HYD TUBE

TUBE - hydraulic

1шт.

40

1992059C1

ELBOW

- 90 degree

1шт.

41

1992239C1

O-RING

1шт.

43

1991560C1

BOLT

1шт.

44

1963085C1

SEALING WASHER

- seal

2шт.

45

1992082C1

HYD TUBE

TUBE - hydraulic

1шт.

46

1992239C1

O-RING

1шт.

48

1992071C1

BOLT

- eye

1шт.

49

1992072C1

SEALING WASHER

WASHER - seal

1шт.

50

1282780C1

O-RING

O-RING - 24 mm ID

1шт.

51

1992083C1

BRACKET

- filter

1шт.

52

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.
