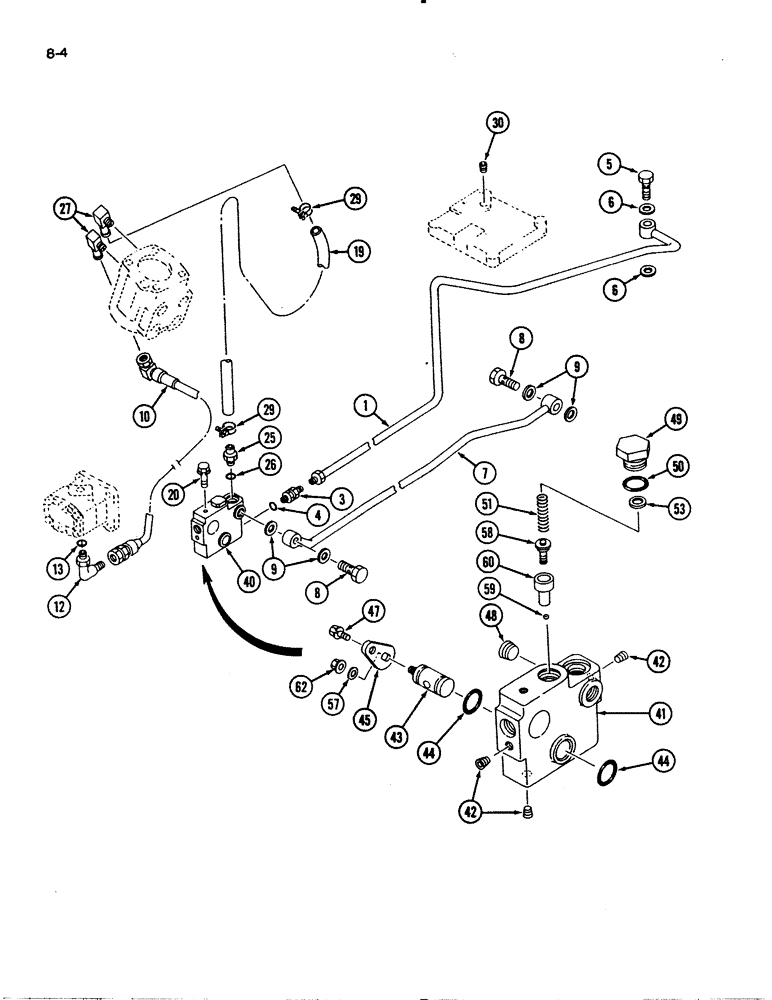

Запчасти Case IH 1130 (8-04) - HYDRAULIC CONTROL VALVE SYSTEM (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1992062C1
TUBE
- pressure
1шт.
3
1992080C1
NIPPLE, LUBE
CONNECTOR - straight
1шт.
4
1992239C1
O-RING
1шт.
5
1991560C1
BOLT
1шт.
6
1963085C1
SEALING WASHER
- seal
2шт.
7
1992065C1
HYD TUBE
TUBE - hydraulic
1шт.
8
1991560C1
BOLT
2шт.
9
1963085C1
SEALING WASHER
- seal
4шт.
10
1991536C1
HYDRAULIC HOSE
1шт.
12
1991537C1
ELBOW
- 90 degree, Includes: Ref. 13
1шт.
13
1273793C1
O-RING
O-RING - 14 mm ID
1шт.
19
1991553C1
HYDRAULIC HOSE
1шт.
20
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
- hex, 8 mm - 1.25 x 16 mm
1шт.
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
1шт.
24
1992812C1
CUSHION
- tube
1шт.
25
1991555C1
ADAPTER
CONNECTOR - straight, Includes: Ref. 26
1шт.
26
1273793C1
O-RING
O-RING - 14 mm ID
1шт.
27
1991554C1
ADAPTER
ELBOW - 90 degree, Includes: Ref. 28
1шт.
28
1273793C1
O-RING
O-RING - 14 mm ID
1шт.
29
1991556C1
CLAMP
- hose
2шт.
30
444699
PLUG,Hex Soc, 3/8"-18
- pipe, hex socket head, 3/8 inch PT
1шт.
40
1991538C1
BLOCK
VALVE ASSEMBLY - control, Includes: Ref. 41 - 62
1шт.
41
1991539C1
BLOCK
HOUSING - valve
1шт.
42
444689C1
PLUG - valve
3шт.
43
1991540C1
SHAFT
SPOOL - control valve
1шт.
44
1288101C1
O-RING
O-RING - 16 mm ID
2шт.
45
1991541C1
PLATE
- valve mounting
1шт.
47
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
- hex, 8 mm - 1.25 x 16 mm
1шт.
48
444699
PLUG,Hex Soc, 3/8"-18
- pipe, hex socket head, 3/8 inch PT
3шт.
49
1991542C1
PLUG
- valve body
1шт.
50
1991543C1
O-RING,0.739" ID x 0.879" OD x 0.07"
1шт.
51
1991544C1
SPRING
- check valve
1шт.
53
1991646C1
SHIM KIT
- valve
1шт.
57
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
- flat, 11 x 21 x 2 mm
1шт.
58
1991549C1
VALVE POPPET
POPPET - VALVE
1шт.
59
1991550C1
BALL
- steel
1шт.
60
1991551C1
VALVE, PRESSURE RELI
VALVE - relief
1шт.
62
825-1406
NUT,M6, Cl 8
1шт.
892-11006
LOCK WASHER,M6
WASHER, LOCK, M6
1шт.
Выбрано товаров: 39
